Summary of Contents for ADDC GAZOO-2

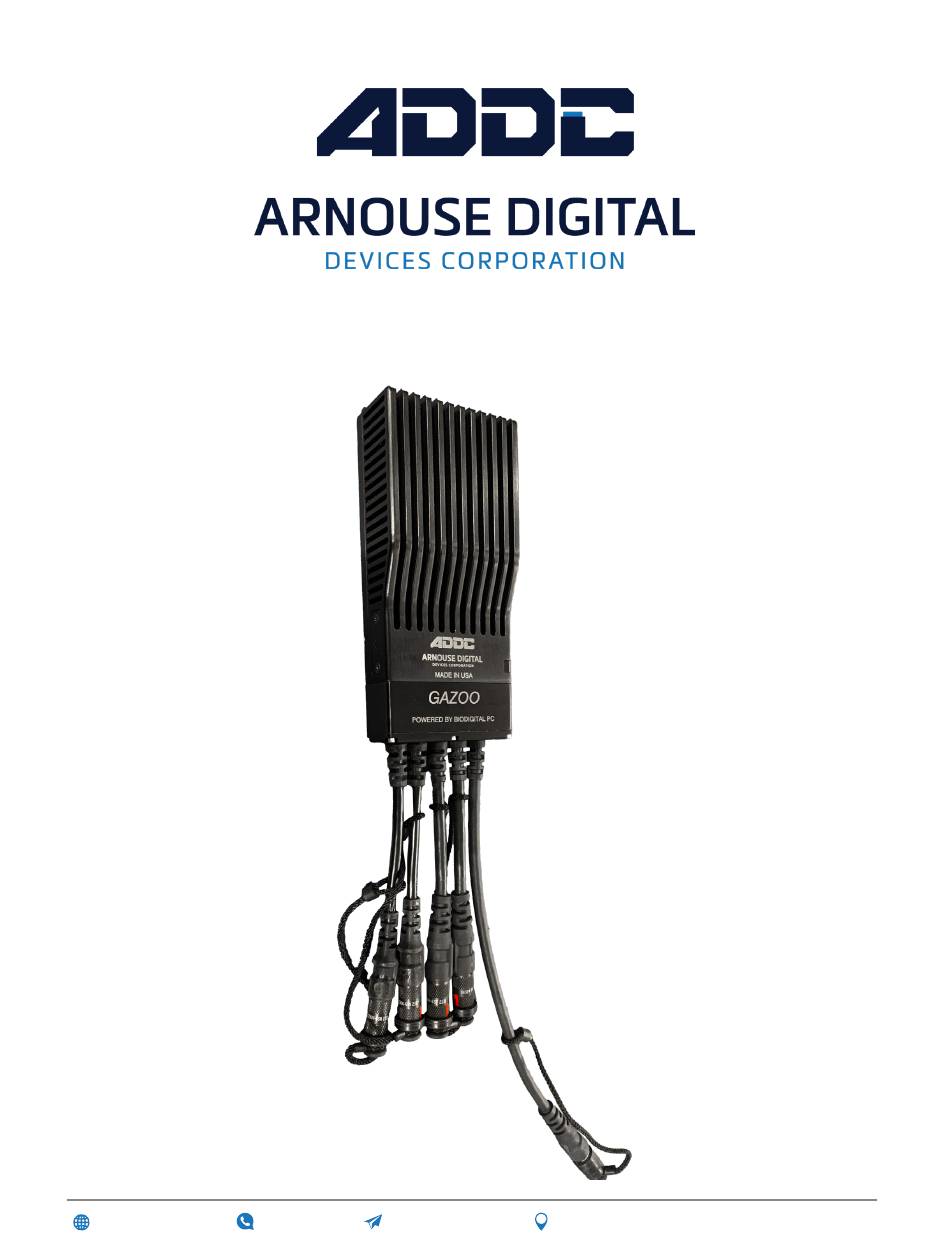

- Page 1 GAZOO-2 QUICK REFERENCE GUIDE WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET 1979 Marcus Ave. Suite E140 Lake Success, NY 11042...
- Page 2 Width 3.0” Mini-DP++ and Status LED Cover. Height 1.5” Height with removable MOLLE clips 1.82” Weight: 1.5 lbs. Length with removable MOLLE clips 6.62” Length 6.3” WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET 1979 Marcus Ave. Suite E140 Lake Success, NY 11042...
- Page 3 To open the MOLLE clips push the buttons in the NOTE: MOLLE clips are removable. direction shown above. 2.2 - Unscrew the 1/4”-20 screw and open the PC Card Cover. ¹/4”-20 screw with D-ring WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET 1979 Marcus Ave. Suite E140 Lake Success, NY 11042...
- Page 4 2.8 - Connect Ethernet devices as necessary (see Table 3 for pinout). 2.9 - Connect the power cable to a 9-25VDC, minimum 40 watt power source recommended (see Table 1 for pinout). connect Mini-DP++ video cable. WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET 1979 Marcus Ave. Suite E140 Lake Success, NY 11042...
- Page 5 PIN 2 PIN 1 Ground PIN 3 Power (5 VDC @ 1A Max) PIN 4 PIN 5 USB + USB - PIN LAYOUT OF P1 (FRONT FACE) Not Connected WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET 1979 Marcus Ave. Suite E140 Lake Success, NY 11042...
- Page 6 Blinking Red = Powered but Blue = No Link PC Card has been shutdown. Green = Link Green = Powered and PC Green = Link Card is running WWW.ADDC.COM 516.673.4444 INFO@ADDC.NET 1979 Marcus Ave. Suite E140 Lake Success, NY 11042...
