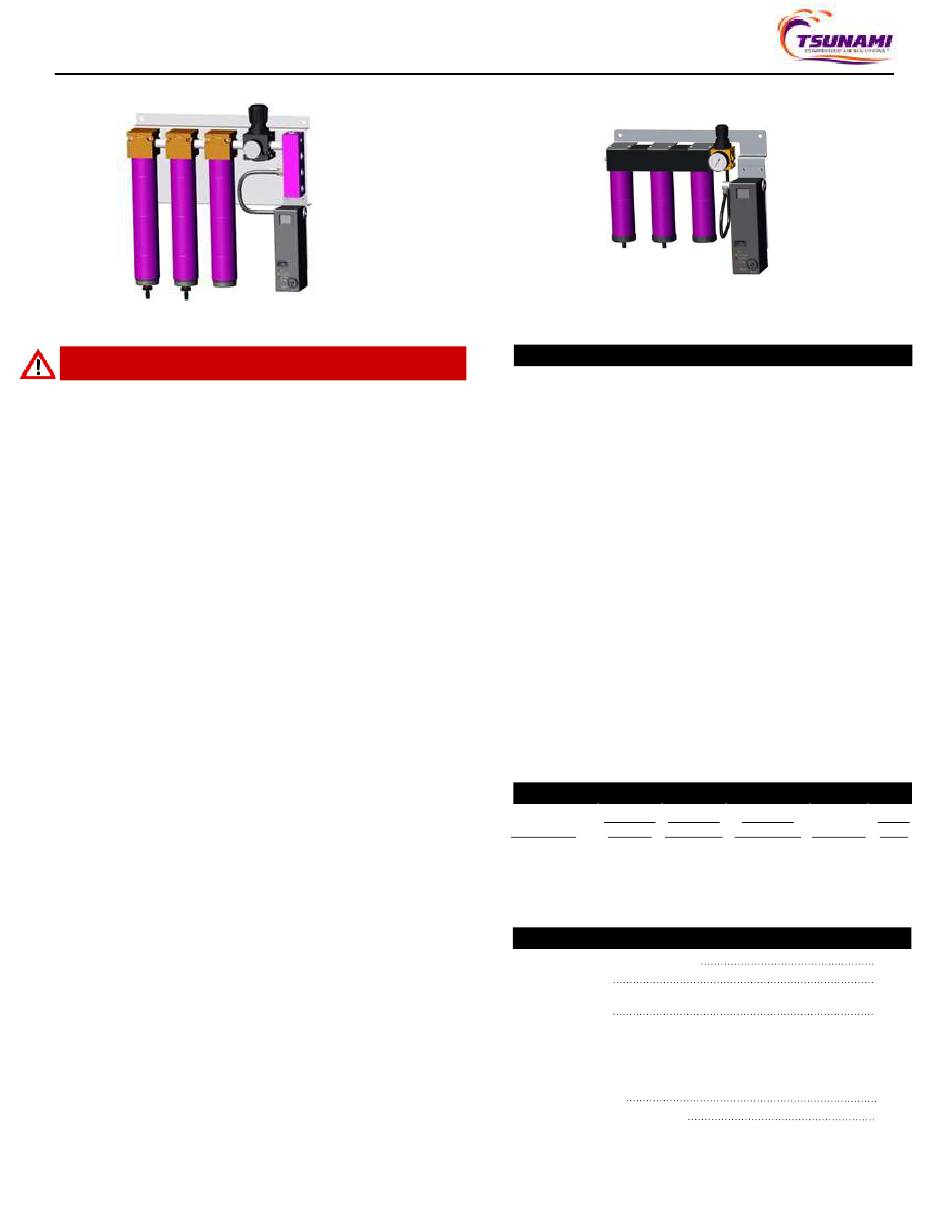

Tsunami 21999-0265 User Manual

THE FOLLOWING USER MANUAL APPLIES TO TSUNAMI BREATHING AIR SYSTEMS THE FOLLOWING USER MANUAL APPLIES TO TSUNAMI BREATHING AIR SYSTEMS
21999-0265 / 21999-0265-CA
WARNING!!!
•
Failure to understand and follow the warnings and instructions may cause
Injury or Death.
•
Failure to read and understand all warning and instructions on the
products you are using (paints, solvents, epoxy resins, pesticides, etc.)
may cause Injury, Disease, or Death.
•
Not for use with petroleum based powered air compressors.
•
All maintenance and operational instructions must be followed. Failure to
follow these instructions may result in injury or loss of life.
•
All instructions for the carbon monoxide (CO) monitor must be followed
exactly.
•
Do not attempt to use the respirator without reading and understanding
the instructions of the product.
•
Never wear supplied air respirators in any atmosphere that may contain
levels of contamination which are unknown or may be Immediately
Dangerous to Life or Health (IDLH).
•
You must use a supplied air respirator that adheres to the guidelines set
by the ANSI Z88.2
•
Your breathable air system MUST comply with OSHA 29 CFR 1910.134 and
CSA Z180.1-13
•
All respirable hoses, masks, and hoods MUST be NIOSH approved.
•
You must use a supplied air respirator that adheres to the statutes set
forth by your federal, state, and local Occupational Safety and Health
Administrations.
•
This breathing air system reduces but does not eliminate your exposure
to inhaled chemicals or contaminants. It Does Not provide total
protection.
•
If you have ever experienced breathing complications while around or
after exposure to paint, isocyanates, solvents, etc. DO NOT USE this
breathing air system.
•
If you are sensitized to paint, isocyanates, solvents, etc., DO NOT USE this
breathing air system, it WILL NOT protect you.
•
DO NOT USE this product if you cannot understand the warnings or
instructions contained within this manual.
•
If these warnings and instructions lead you to believe that you should not
use this breathing air system or that it will not protect you, DO NOT USE
IT, regardless of any instructions or statements from another source such
as an employer, a parts supplier, product manufacturer, etc., that indicate
you will be protected.
•
YOU ARE SOLELY RESPONSIBLE for any injury, disease, damage, or death
caused by failure to follow these warnings and instructions.
•
Do not use filtered air from panel to run air tools or spray guns.
Date Printed: 8/2/2023
21999-0980 / 21999-0980-CA
DESCRIPTION
Congratulations on the purchase of your Tsunami Breathing Air
System! By adhering to the specifications and maintenance schedule
listed in the manual, your air system will provide years of service with
minimal maintenance.
Incoming air enters the 1st stage water separator where water and
particulates are removed down to 10 micron. The air then travels
through the 2nd stage oil coalescing filter where oil aerosols are
filtered down to .001 ppm and particulates are trapped down to .01
micron. Then it passes through an activated carbon filter to remove
oil vapors down to .003 ppm and progresses downstream to your
NIOSH approved supplied air breathing apparatus.
A small amount of this filtered breathing air is sampled through the
carbon monoxide monitor to accurately measure carbon monoxide
levels contained in you air stream and will emit an audible alarm
should the levels exceed OSHA or CSA permissible limits.
United States: 10ppm
Canada: 5ppm
All water separators and oil coalescing filters come standard with
automatic float drains to assure proper discharge of all contaminants
captured in the water separator and oil coalescing filter. The activated
carbon filter should not see any liquid contaminants so therefore
requires no drain. You can add your own manual drain to the bottom
of the activated carbon filter if you so choose.
FILTER SPECIFICATIONS
Maximum
Part Number Pressure
21999-0265
21999-0265-CA
21999-0980
21999-0980-CA
INSTALLATION & SERVICE REQUIREMENTS
Breathing Air System Installation
Monthly Service
•
Calibrate CO Monitor
6 Month Service
•
Inspect Water Separator Element
•
Replace Oil Coalescing Filter Element
•
Replace Activated Carbon Filter Element; earlier replacement may be
necessary in some applications
Drain Replacement
Parts Breakdown – Service Parts
764-2099
Maximum Maximum
Flow (CFM) Temperature Inlet (NPT)
175 50 122
175 50 122
175 20 122
175 20 122
Outlet
(NPT)
1/2" 1/4"
1/2" 1/4"
1/4" 1/4"
1/4" 1/4"
pg. 2
pg. 2
pg. 3
pg. 3
pg. 3
