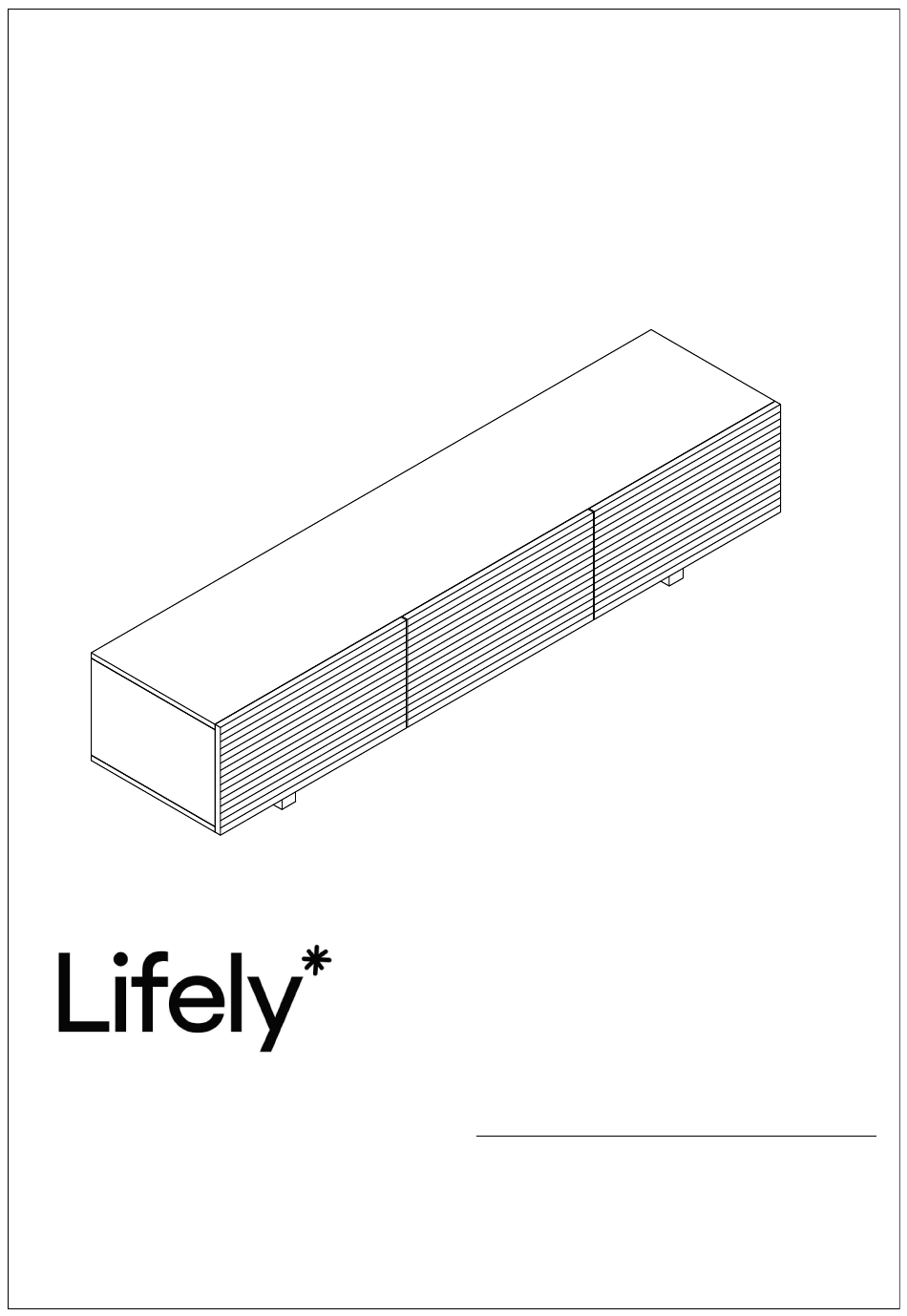

Assembly Instructions
Lucia Series
Product Code

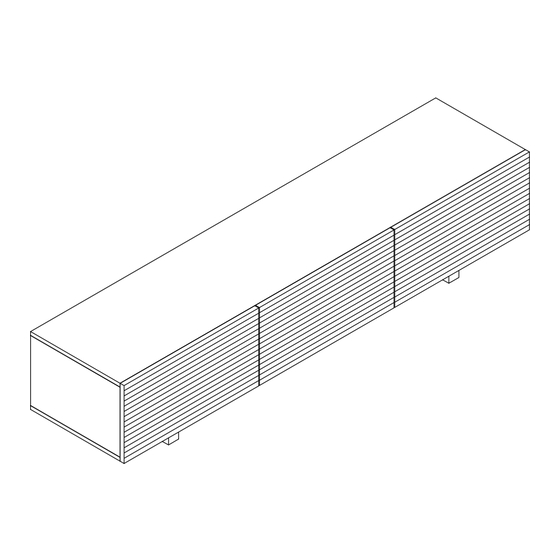

LCIA-TV-180 TV STAND
Dimensions
W x D x H
(
1800*416*385
)
Important
Please read through instruction carefully
Before assembly and keep for future reference.
For our full catalogue of assembly instructions,
Visit: lifely.com.au/assembly.
Advertisement
Related Manuals for Lifely Lucia Series
Summary of Contents for Lifely Lucia Series
- Page 1 Assembly Instructions Lucia Series Product Code Important LCIA-TV-180 TV STAND Please read through instruction carefully Before assembly and keep for future reference. Dimensions W x D x H For our full catalogue of assembly instructions, 1800*416*385 Visit: lifely.com.au/assembly.
- Page 2 Important Tips and Maintenance Never place liquids or anything Never use ammonia based To avoid fading, keep furniture Keep children and animals away from working area as cleaning products as it will damp upon furniture as it out of direct sunlight. smaller parts may cause chok- will mark.
- Page 3 So your relationship is strong. But is it flat-pack furniture strong? Unless you're an aerospace engineer, assembling furniture can be slightly sressful. We recommend meditating quietly, pouring yourself a herbal tea(or slightly less herbal wine) and tackling things one step at a time.If you feel a passive aggressive remark coming on, try a compliment instead.E.g.
-
Page 4: Before Assembly
Before Assembly Tips Before Your Start: - Remove all wrapping material, including staples & packing straps before you start to assemble. - DO NOT tighten all screws and bolts until completely assembled. - Keep all hardware parts out of reach of children. QUICKFIT Shoulder Panel... - Page 5 Before Assembly Tips Before Your Start How to separate the drawer slider ： 1. Hold the plastic part in this way 2. Pull out the inner slider for drawer box fixing Drawer Front Alignment Drawer front panel If the drawer front panel is NOT level after being assembled, then... Drawer front panel Drawer Side Drawer Runner...
- Page 6 Component Hardware Please check you have all the fittings part or tools are listed in below. No. A No. B No. C No. D No. E Quantity:24Pcs Quantity:30Pcs Quantity:28Pcs Quantity:30Pcs Quantity: 2Sets Cam Lock Dowel Screw Drawer Slider Dowel 8*28mm 8*30mm φ15 10"...
- Page 7 Component Panels & part List Please check you have all the panels are listed below. CTN2/2 CTN2/2 TOP PANEL BASE BRACE BOTTOM PANEL CTN2/2 MIDDLE DOOR PANEL CTN2/2 12L. SIDE PANEL_LEFT CTN1/2 LEFT DOOR PANEL CTN2/2 CTN1/2 CTN2/2 12R. SIDE PANEL_RIGHT RIGHT DOOR PANEL CTN1/2 CTN1/2...
- Page 8 STEP 1 No. A Quantity: 10 Pcs Cam Lock Dowel 8*28 mm STEP 2 No. E No. D Quantity:4 Pcs Quantity:12 Pcs Drawer Slider Screw 10" 4*14mm LCIA-TV-180-8...
- Page 9 STEP 3 No. C No. B Quantity: 10 Pcs Quantity:10 Pcs Cam Lock Dowel φ15mm 8*30mm STEP 4 LCIA-TV-180-9...
- Page 10 STEP 5 No. F No. G No. B Quantity:10 Pcs Quantity:1Pc Quantity:10 Pcs Screw Allen Key Dowel M6*50mm 8*30mm STEP 6 No. A Quantity: 8 Pcs Cam Lock Dowel 8*28 mm LCIA-TV-180-10...
- Page 11 STEP 7 No. A No. C Quantity: 4 Pcs Quantity: 4 Pcs Cam Lock Dowel Cam Lock 8*28 mm φ15mm STEP 8 No. L No. C No. B Quantity: 8 Pcs Quantity:4 Pcs Quantity:4 Pcs Cam Lock Foot Pad Dowel φ15mm 40*40 8*30mm...
- Page 12 STEP 9 No. H Quantity:8 Pcs Plastic Wedge STEP 10 No. K Quantity:4 Pcs Shelf Support M6*12mm LCIA-TV-180-12...
- Page 13 STEP 11 No. J No.K Quantity:4 Pcs Quantity:2 Pcs Screw Hinge 4*16mm STEP 12 No. J No. D Quantity:4 Pcs Quantity:4 Pcs Screw Screw 4*16mm 4*14mm LCIA-TV-180-13...
- Page 14 STEP 13 12 R 12 L No. A Quantity: 8 Pcs Cam Lock Dowel 8*28 mm STEP 14 13 R 13 L No. D No. E No. K No. B Quantity: 8 Pcs Quantity:2 Sets Quantity:8 Pcs Quantity:4 Pcs Screw Drawer Slider Screw Dowel...
- Page 15 STEP 15 13 R 13 L 12 L/12R No. C Quantity: 8 Pcs Cam Lock STEP 16 12 R 12 L LCIA-TV-180-15...
- Page 16 STEP 17 STEP 18 TOPPLING FURNITURE WARNING: It is strongly recommended that this product is permanently fixed to the wall. Please seek professional advice if you are in doubt of what fixing device to use. Regularly check that anchors are securely maintained.
- Page 17 Great job. You're done! Don't forget to share how it looks in your space and tag us on lnstagram. @lifelyhome#homewithlifely!
