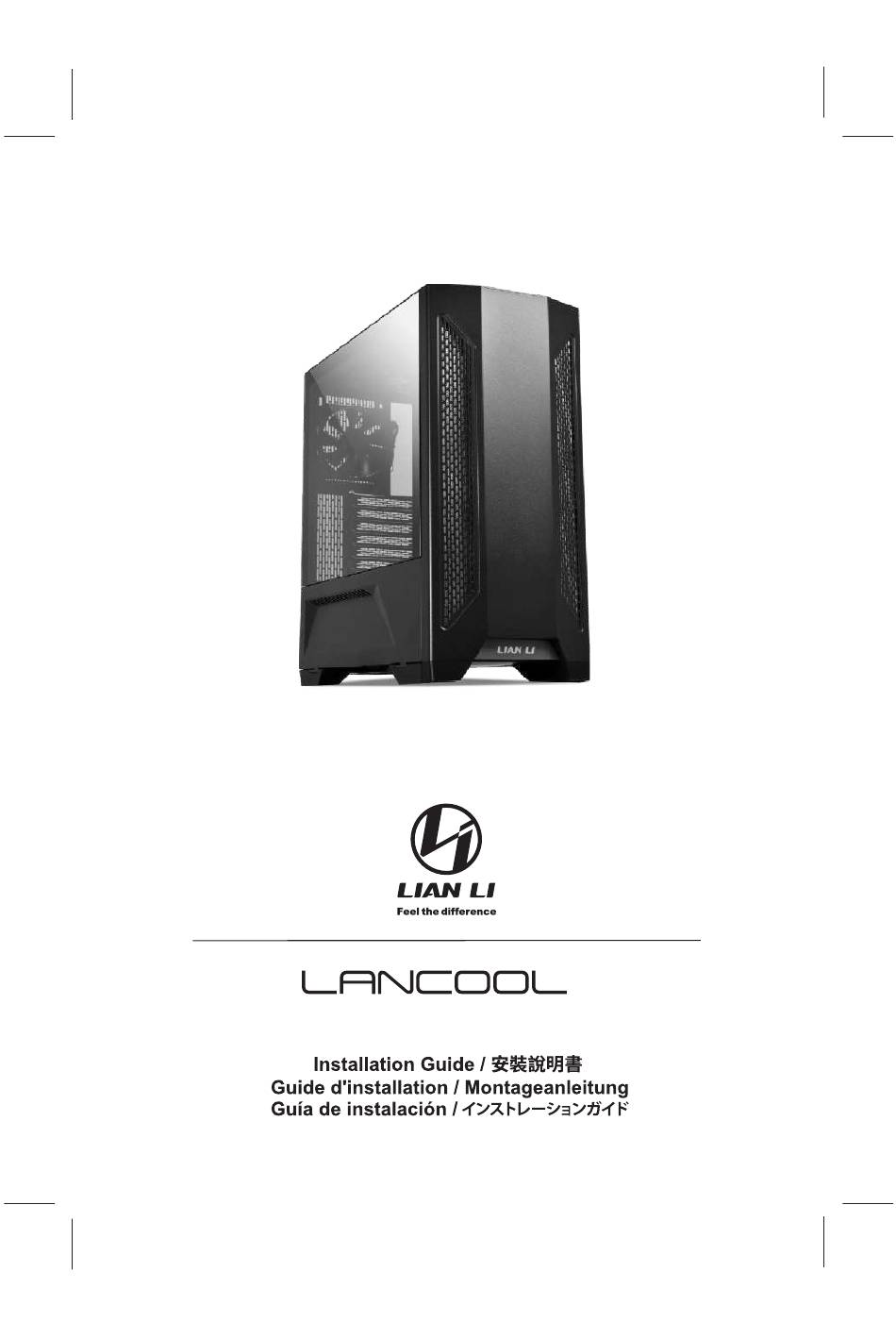

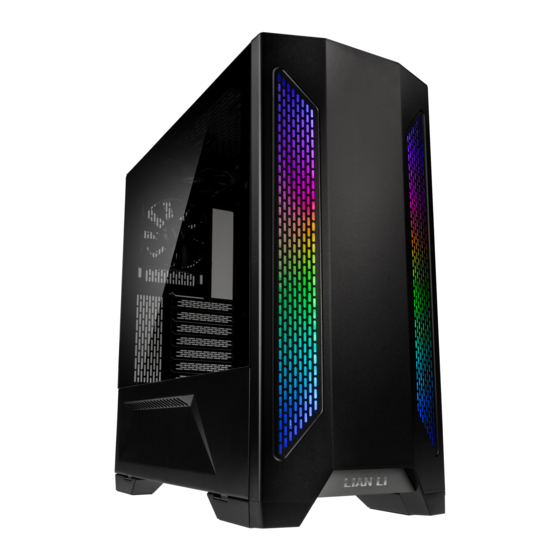

- Page 1 Born To Perform...
- Page 2 Born To Perform Case components * Composants du boîtier Guía de instalación 機殼部品介紹 * Gehäusekomponenten IO ports: 1 x AUDIO / Microphone Combo Jack, 2 x USB 3.0, 1 x USB 3.1 Type C (Optional) Power Button, Reset Button 120 mm fan x 1, Supporting 120 mm fan x 2 or 140 mm fan x 2 or 120 mm radiator x 1, or 240 mm radiator x 1, Removable dust filter...
- Page 3 Born To Perform * Hardware list 零件盒部品一覽表 * Liste des pièces * Hardwareliste * Lista de materiales 29 pcs 4 pcs 12 pcs 10 pcs Cable ties Screws Screws Screws for cable management for PSU mounting for mother board for 3.5" HDD mount 2.5"...
- Page 4 Born To Perform * Remove front panel * 卸下前面板 * Retirer le panneau avant * Frontplatte entfernen * Retire el panel delantero * 前面パネルを取り外す Handle, Pull to release bottom Handle, Pull to release - 3 -...
- Page 5 Born To Perform * Remove the side panel * 側板拆卸 * Retirez le panneau latéral * Seitenwand abnehmen * Extracción del panel lateral Handle, Pull to release First remove the front panel and then open Without removing the front panel. the side panels.
- Page 6 Born To Perform Tool for remove stand off bolt Turn 180 degrees to install the E-ATX motherboard * PSU-Einsatz installieren PSU installation Instalación de la fuente de alimentación 電源供應器安裝 Installation du plateau du bloc d'alimentation - 5 -...
- Page 7 Born To Perform * 2.5"SSD / 3.5"HDD installation * 2.5"SSD / 3.5"HDD - Installation * Instalación de 2.5"SSD / 3.5"HDD * 2.5 SSD / 3.5 HDD安裝 " " * 2.5"SSD / 3.5"HDDインストール * Installation de 2.5"SSD / 3.5"HDD P r e s s OPEN CLOSE Warning:...
- Page 8 Born To Perform * 2.5"SSD installation * 2.5"SSD - Installation * 2.5 SSD安裝 " * Instalación de 2.5"SSD * 2.5"SSDインストール * Installation de 2.5"SSD - 7 -...
- Page 9 Born To Perform * LED control installation 控制安裝 * LED * Installation de contrôle à LED * LED-Steuerung Installation * Instalación de control LED * LED 制御のインストール - 8 -...
- Page 10 Born To Perform Optional 1x AUDIO / Microphone Combo Jack * 120 mm fan installation * 120 mm 風扇安裝 * Installation de ventilateur de 120 mm * 120 mm Lüfterinstallation * Instalación de ventilador de 120 mm ミリメートルのファンの取り付け * 120 - 9 -...
- Page 11 Born To Perform * Remove the fan tray * 卸下風扇架 * Retirez le plateau du ventilateur * Entfernen Sie die Lüfterablage * Retire la bandeja del ventilador * ファントレイを取り外す Loosen the screws on both sides Pull to release the fan tray Attention: The fan tray can be reversed and has four styles Styles 1...
- Page 12 Born To Perform Radiator & cooling support 散熱器 & 水冷排支援 * Assistance radiateur et refroidissement Kühler- und Kühlungsunterstützung Radiador y soporte de refrigeración. ラジエター＆冷却サポート 140 x 140 mm 140 x 280 mm 120 x 120 mm 120 x 120 mm 120 x 240 mm 140 x 140 mm 120 x 360 mm...
- Page 13 Born To Perform * The fan is installed in the middle of the top cover * 風扇安裝在上蓋的中間 * Le ventilateur est installé au milieu du capot supérieur * Der Lüfter befindet sich in der Mitte der oberen Abdeckung * El ventilador está instalado en el medio de la cubierta superior * ファンはトップカバーの中央に取り付けられています...
- Page 14 Born To Perform Bottom Front panel * Remove cover * Retirer le couvercle * Retire la tapa * 卸下蓋子 * カバーを外す * Abdeckung abnehmen 3 Remove For RGB Controller or fan hub - 13 -...
- Page 15 Born To Perform 176 mm 384 mm 210 mm 55 mm 65 mm 110 mm - 14 -...
- Page 16 Born To Perform Product name: Model: LANCOOL II - 1X Vertical GPU kit Side Diffused LEDs strip LANCOOL II - 2X Hot swappable back plate LANCOOL II - 3X LANCOOL II - 4X 3.1 type C cable Graphic card anti-sag bracket...
