Summary of Contents for ANTAIRA UTS-USBC-RJ45-A

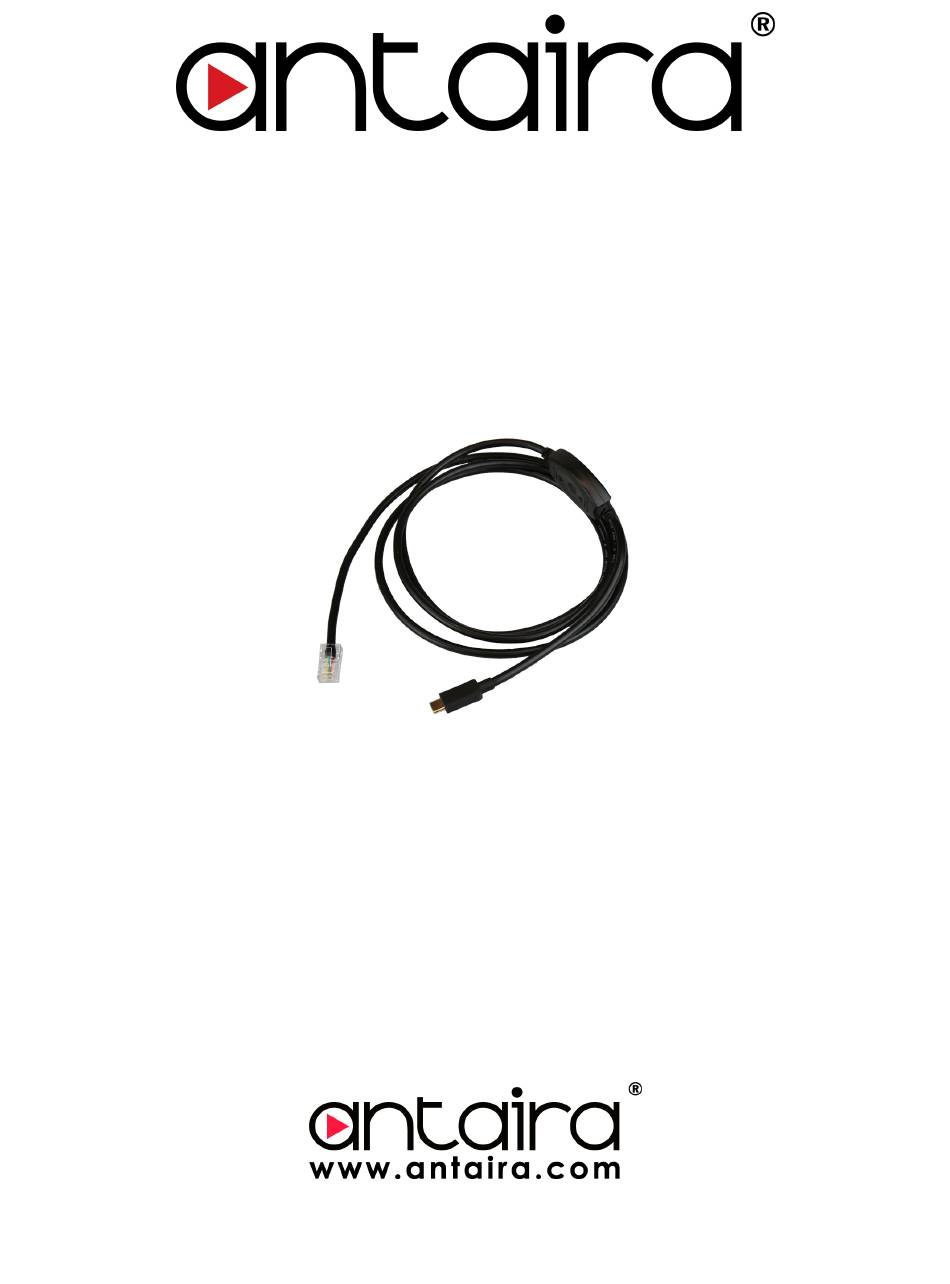

- Page 1 UTS-USBC-RJ45-A USB-C to 1-Port RS-232 Converter (RJ45) Console Cable Quick Start Guide Version 1.0 (April 2023)
- Page 2 Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches UTS-USBC-RJ45-A - Quick Start Guide - v1.0 Table of Contents 1 Overview 2 Installation Checklist 3 Quick Connect Notes 4 Windows OS FTDI Driver Installation 5 Connecting to the Equipment with a Windows Computer 6 macOS FTDI Driver Installation &...
- Page 4 1 Overview Antaira Technologies’ USB-C to RJ45 Console Cable connects from a computer USB port to the RJ45 console port of a networking switch. This cable connects a computer with Windows or macOS to a Antaira serial console port for configuration and management.
- Page 5 6. Set the bps, data bits, parity, stop bits and flow control settings required by the equipment. (Typical Antaira settings are bps=115200 / data bits=8 / parity=none I stop bit=1 / flow control=none) 7. Consult the equipment documentation for programming the equipment.
- Page 6 Check for FTDI (Future Technology Devices International Limited) under the Vendor ID 7 Troubleshooting Notes This is a custom Antaira cable that is designed to be used on Antaira managed switches to connect from a computer ● to a switch. It is NOT a crossover cable that reverses TX and RX to connect two computers.
- Page 7 Antaira Technologies - Industrial Ethernet Switches UTS-USBC-RJ45-A - Quick Start Guide - v1.0 ● Disable the scroll lock key on the keyboard, if equipped. ● Verify that the USB-A or USB-C port supports data transfer from the host computer.
