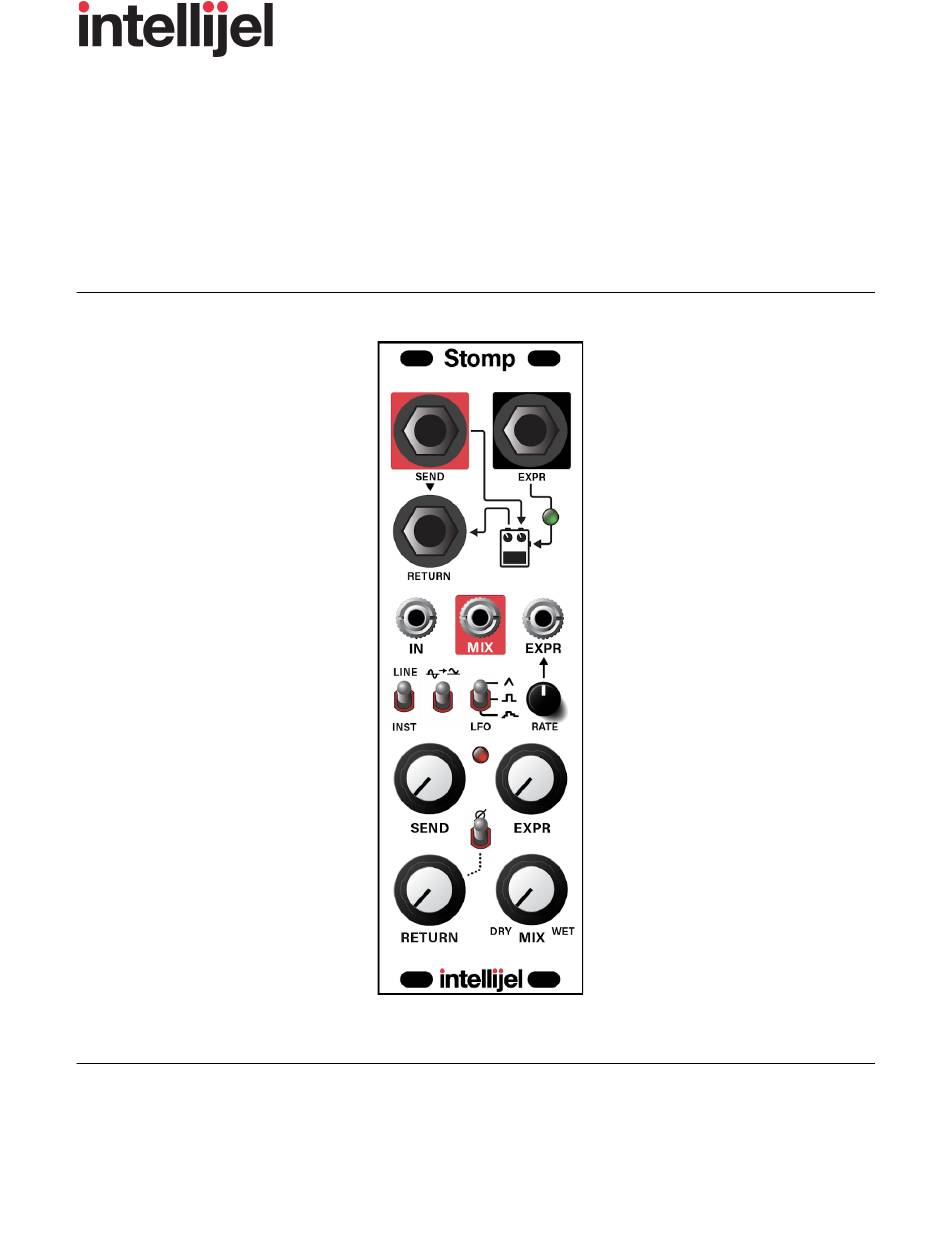

- Page 1 Stomp Effects Pedal Send/Return w/Expression Control & LFO Manual (English) Revision: 2023.08.14...
-
Page 2: Table Of Contents
TABLE OF CONTENTS COMPLIANCE INSTALLATION Installing Your Module OVERVIEW Features FRONT PANEL Inputs & Outputs Controls BACK PANEL FIRMWARE UPDATES TECHNICAL SPECIFICATIONS Stomp Manual... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Installation
INSTALLATION Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, make sure your power supply has a free power header and sufficient available capacity to power the module: ●... -
Page 5: Installing Your Module
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labeled with “-12V” and/or a thick white stripe, while others have shrouded headers to prevent accidental reversal. -
Page 6: Overview
If your effects pedal is adorned with an expression pedal input, Stomp supports that too, and even features a built-in LFO to modulate your pedal’s expression input. Need something crazier? No problem. Simply patch any modulation source from your modular system into the expression control jack to override the built-in LFO. -
Page 7: Features
● Signals arriving at Stomp’s RETURN jack pass through a Class A triode emulator, allowing for some tube-like overdrive at high gain setting. ● Stomp is more than just a simple level shifter — it’s also an impedance converter, which provides proper drive and loading for any FX pedals or instruments you connect. -
Page 8: Front Panel
NOTE: Stomp’s internal LFO is normalled to the EXPR in jack, allowing basic modulation of an FX pedal without any additional input or modulation sources. Patching CV into this jack disables routing of Stomp’s internal LFO to the EXPR input jack, and uses the patched-in CV to control the FX pedal’s expression parameter. - Page 9 ¼” TRS EXPR output - Connect a ¼” TRS cable between this jack and the EXPRESSION input on your FX Pedal. Anything patched into the EXPR input is attenuated and sent to this jack, enabling either Stomp’s internal LFO or any CV from your modular gear to control an FX pedal. Stomp Manual...
-
Page 10: Controls
NOTE: Some FX pedals have their own built-in wet/dry mix control — so if you choose to set wet/dry mix on your pedal, you’ll probably want to set Stomp’s MIX LEVEL knob fully clockwise. EXPR LEVEL knob - Attenuates the control voltage present at EXPR input jack, prior to passing it through to the ¼”... - Page 11 UNIPOLAR COMPRESSION switch - Toggles Stomp’s Unipolar Compression circuit on and off. Specifically: ● ON : When on (UP position), Stomp converts a bidirectional EXPR input voltage into a unidirectional voltage before it’s sent out the ¼” TRS EXPR jack. This enables a bidirectional voltage source (such as an LFO) to control the entire range of expression supported by an FX pedal’s...
- Page 12 0V and the frozen voltage. NOTE: Patching a cable into the EXPR jack disables the internal LFO, and this knob no longer affects the signal sent to the ¼” TRS EXPR jack. Stomp Manual...
-
Page 13: Back Panel
Palette case, a 7U Performance Case, or even a Pedal IO Jacks 1U module. Although Stomp has its own, built-in SEND [4] and RETURN [5] jacks on the front panel, the 3-pin link connector gives you additional routing flexibility. -
Page 14: Firmware Updates
Firmware updates, if available, are contained within the latest Intellijel Firmware Updater application, which you can download from the product’s page on the Intellijel.com website. The application is available in both Macintosh and Windows formats, and will install firmware into your module over USB.
