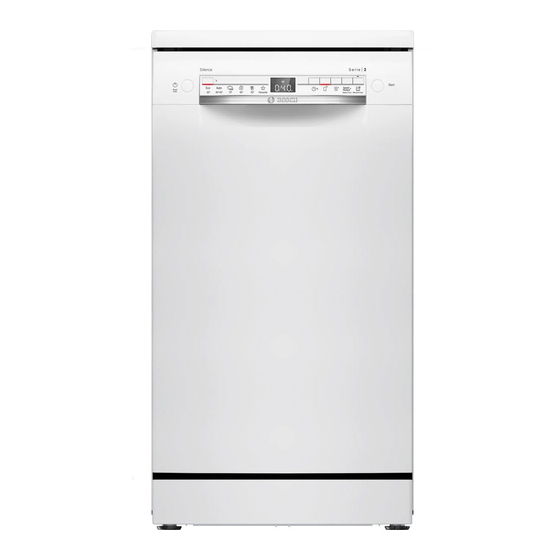

- Page 1 Dishwasher SPS2HKW58E [en] Information for Use Connect Get the app Scan QR code your dishwasher with Home Google Play and the Google Play logo are trademarks of Google Connect today! LLC. Apple and the Apple logo are trademarks of Apple Inc.
-
Page 2: Table Of Contents
Futher information and explanations are available online: Table of contents 1 Safety ........... 4 8.2 Knife shelf........ 20 1.1 General information.... 4 8.3 Etagere ........ 20 1.2 Intended use...... 4 8.4 Bottom basket ...... 21 1.3 Restriction on user group.. 4 8.5 Folding prongs ...... - Page 3 20 Customer Service.... 48 13.2 Arrange tableware .... 29 20.1 Product number (E-Nr.), 13.3 Removing tableware.... 30 production number (FD) 14 Basic operation ....... 30 and consecutive numbering (Z-Nr.) ........ 49 14.1 Switching on the appliance ... 30 20.2 AQUA-STOP guarantee .. 49 14.2 Setting a programme ....
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... - Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing.
-
Page 6: Safe Use
en Safety Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. ▶ Check that there is a distance of at least 5 cm between the ap- pliance and installation lines. -
Page 7: Damaged Appliance
Safety en ▶ Do not sit or stand on the appliance door when open. Knives and utensils with sharp points can cause injuries. ▶ Arrange knives and utensils with sharp points in the cutlery bas- ket with the points downwards, on the knife shelf or in the cut- lery drawer. -
Page 8: Risk To Children
en Safety ▶ If the appliance or the power cord is damaged, immediately un- plug the power cord or switch off the fuse in the fuse box and turn off the water tap. ▶ Call customer services. → Page 48 Incorrect repairs are dangerous. ▶... - Page 9 Safety en WARNING ‒ Risk of crushing! With higher-level appliances, children can become crushed between the appliance door and cabinet doors underneath. ▶ Keep an eye on children when opening and closing the appli- ance door. WARNING ‒ Risk of chemical burns! Rinse aid and detergent may cause chemical burns to the mouth, throat and eyes.
-
Page 10: Preventing Material Damage
en Preventing Modified or damaged water hoses Preventing 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing 2.1 Safe installation Only use the water hoses supplied ▶ with the appliance or genuine ATTENTION! spare hoses. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en So as not to scratch the finish on ▶ 4 Installation and con- the appliance, do not use sponges with a rough surface or abrasive nection cleaning agents. To prevent corrosion, do not use To ensure proper operation, connect ▶... -
Page 12: Drainage Connection
en Installation and connection installing it under a continuous work- 4.4 Drinking water connec- top that is securely connected to ad- tion jacent cabinets. Follow the safety instructions. Connect your appliance to a drinking → Page 4 water connection. Follow the instructions for electrical Installing the drinking water connection. -
Page 13: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 49. The data you need for Customer Service → Page 48. - Page 14 en Familiarising yourself with your appliance Detergent dispenser Add detergent to the detergent dispenser. → "Detergent", Page 26 Bottom basket Bottom basket → Page 21 Filter system Filter system → Page 38 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 22 Tablet collecting tray During the wash cycle tablets automatic- ally fall out of the detergent dispenser into...
-
Page 15: Controls
Familiarising yourself with your appliance en 5.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. 3 4 5 6 7 8 9 ON/OFF button and reset Switching on the appliance... -
Page 16: Programmes
en Familiarising yourself with your appliance button If you press for approx. 3 seconds, you can open the basic set- tings. → "Changing basic settings", Page 34 Start button Starting the programme → Page 31 Programme buttons and addi- Programmes tional functions → "Programmes", Page 17 Additional functions → "Additional functions", Page 19 Door handle Open the appliance door. - Page 17 Programmes en 6 Programmes You can find an overview of the pro- ted. The running time will change if grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
-
Page 18: Information For Test Institutes
en Programmes Programme Programme se- quence Tableware: Time-optimised: ¡ Mixed tableware and cutlery ¡ Cleaning 65 °C Express 65° - 1h Level of soiling: ¡ Intermediate rinse ¡ Common household food rem- ¡ Final rinse 69 °C nants lightly dried on ¡ Dry Use only if appliance is unloaded. -
Page 19: Additional Functions
Additional functions en 7 Additional functions You can find an overview of the additional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme. -
Page 20: Knife Shelf
en Features You can adjust the height of the top 8.2 Knife shelf basket to make room for larger items Use the shelf for knives and long of tableware. items of cutlery. Adjusting top basket with pairs of rollers To wash large items of tableware in the baskets, adjust the shelf position of the top basket. -
Page 21: Bottom Basket
Features en 8.4 Bottom basket 8.5 Folding prongs Arrange pans and plates in the bot- Use the folding prongs to position tom basket. tableware securely, e.g. plates. Cutlery basket You can fold the prongs down to po- sition pans, bowls and glasses Large plates up to a diameter of better. -
Page 22: Cutlery Basket
en first time Add special salt. → Page 23 8.6 Cutlery basket Add rinse aid. → Page 25 Arrange cutlery in the cutlery basket, Switch on the appliance. always without sorting it and with the → Page 30 sharp points downwards. Setting the water softening system. → Page 23 Set the amount of rinse aid to be dispensed. -
Page 23: Setting The Water Softening System
Water softening system en Water hardness Hardness range mmol/l Setting value °E 9 - 10 Soft 1.2 - 1.4 11 - 12 Medium 1.5 - 1.8 13 - 15 Medium 1.9 - 2.1 16 - 20 Medium 2.2 - 2.9 21 - 26 Hard 3.0 - 3.7 27 - 38... -
Page 24: Switching Off The Water Softening System
en Water softening system Note: Only use special salt for ¡ The water hardness is 0 - 8 °E. dishwashers. You do not need to use special Do not use salt tablets. salt. Do not use table salt. Press . Add the special salt to the dis- To open the basic settings, press penser. -
Page 25: Rinse Aid System
Rinse aid system en Add rinse aid up to the max mark. Additional power consump- 0.05 tion in kWh The consumption values specified are laboratory measurements determ- ined in accordance with the currently applicable standard using the Eco 50° programme and with the factory value of the water hardness set to 16 - 20 °E. -
Page 26: Switching The Rinse Aid System Off
en Detergent To save the settings, press starch and remove protein. Oxygen- for 3 seconds. based bleaching agents are generally used to remove coloured marks, e.g. tea or ketchup. 11.3 Switching the rinse aid system off Note: Follow the manufacturer's in- structions for each detergent. If you find the rinse aid refill indicator Tip: Suitable detergents are available irritating, e.g. -
Page 27: Unsuitable Detergents
Detergent en With powder and liquid detergent the 12.3 Information on deter- dosage can be individually adjusted gents to the level of soiling of the table- ware. Follow the instructions on detergents For better washing and drying results in everyday use. and to avoid damage to the appli- ¡... - Page 28 en Tableware Add the detergent to the dry deter- Close the lid of the detergent dis- gent dispenser. penser. 50 ml 25 ml 15 ml If you are using tablets, one is a The lid clicks into position. enough. Insert the tablets in a hori- a The detergent dispenser will open zontal position.
-
Page 29: Tableware
Tableware en 13.1 Damage to glass and Cause Recommenda- tion tableware Highly caustic al- If you are using Only put glasses and china in the kaline or highly highly caustic al- dishwasher if it is marked as dish- acidic cleaning kaline or highly washer-safe by the manufacturer. -
Page 30: Removing Tableware
en operation ¡ For better washing and drying res- ults, position items with curves or recesses at an angle so water can run off. 13.3 Removing tableware WARNING Remove large remnants of food Risk of injury! from tableware. Hot tableware can cause burns to the To save resources, do not pre- skin. -
Page 31: Setting A Programme
operation en The Eco 50° programme is espe- 14.4 Setting timer program- cially environmentally friendly and ming ideal for normally soiled tableware. It is the most efficient programme You can delay the start of the pro- for the combination of energy/wa- gramme by up to 24 hours. ter consumption for this type of Press ... -
Page 32: Deactivate Button Lock
en operation a The button lock is activated and Tip: If you press during the wash will be automatically deactivated at cycle, the programme currently run- the end of the programme. ning will be interrupted. When you a When the appliance is operated, switch the appliance back on, the flashes on the display. -
Page 33: Basic Settings
Basic settings en 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Display text Selection Description Water hardness H00 - H07 Set the water softening sys- tem to your water hardness. -
Page 34: Changing Basic Settings
en Basic settings Basic setting Display text Selection Description Wi-Fi Cn0 - Cn1 Switch the wireless network connection on or off. Level "Cn0" switches the wireless network connection off. This basic setting is not available until you have con- nected the appliance with the Home Connect app. -
Page 35: Home Connect Quick Start
Home Connect en Press repeatedly until served when operating the appliance the display shows the required set- via the Home Connect app. ting. → "Safety", Page 4 Press repeatedly until the dis- 16.1 Home Connect quick play shows the right value. start You can change several settings. To save the settings, press Connect your appliance to a mobile for 3 seconds. -
Page 36: Remote Start
en Home Connect Open the Home Connect app and 16.3 Data protection scan the following QR code. Please see the information on data protection. The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration): ¡... -
Page 37: Cleaning And Servicing
Dishwasher Care and Ma- ance to malfunction. To avoid such chine Cleaner for Dishwashers online faults and reduce odours, we recom- at https://www.bosch-home.com/ mend cleaning your appliance at reg- store or from customer service. ular intervals. Machine Care is a programme which... -
Page 38: Filter System
en Cleaning and servicing To ensure optimum cleaning perform- Pour the machine cleaner into the ance, the programme doses the de- detergent dispenser until it is filled tergents independently of each an- completely. other during the relevant cleaning Do not place any additional ma- phase. -
Page 39: Cleaning Spray Arms
Cleaning and servicing en Turn the coarse filter anticlockwise Carefully clean the rim of dirt and remove the filter system . between the coarse and the fine fil- ter. Check that no foreign objects ‒ Re-assemble the filter system. fall into the sump. Make sure that the locking catches on the coarse filter click into posi- tion. - Page 40 en Cleaning and servicing Pull up the lower spray arm to re- Check the outlet nozzles on the move. spray arms for blockages under running water and remove any for- eign bodies. Insert the lower spray arm. a The spray arm clicks into position. Insert the upper spray arms and screw firmly in place.
-
Page 41: Troubleshooting
This will avoid unneces- sary costs. Tip: You can find further information and explanations on troubleshooting on- line by scanning the QR code in the table of contents and on our website www.bosch-home.com. WARNING Risk of electric shock! Incorrect repairs are dangerous. - Page 42 en Troubleshooting Fault Cause and troubleshooting E:32-00 will light up Remove the filter from the supply hose alternately or indicator for water supply lights Clean the filter. Re-insert the filter in the supply hose. Screw the water connection back on. Check the water connection for leaks. Restore the power supply.
- Page 43 Troubleshooting en Fault Cause and troubleshooting E:61-03 will light up Not an appliance fault. Siphon connection is still alternately. Water is closed or the wastewater hose is kinked or blocked. not drained. Check the connection to the siphon and open if ne- cessary.
- Page 44 en Troubleshooting Fault Cause and troubleshooting All LEDs lit up or Electronics have detected a fault. flashing. Press the main switch button for approx. 4 seconds. The appliance is reset and restarted. If the problem occurs again: Switch off the appliance. ‒ Pull out the mains plug or switch off the fuse in ‒...
- Page 45 Troubleshooting en Fault Cause and troubleshooting Remnants of food on Select a more intensive washing programme. ▶ tableware. → "Programmes", Page 17 Tableware has been precleaned too intensely. The sensors chose a weaker programme. Stubborn soiling cannot be entirely removed. Only remove large remnants of food and do not ▶...
- Page 46 en Troubleshooting Fault Cause and troubleshooting Rust spots on cutlery. Cutlery may also rust if washed together with rusting items. Do not wash rusting items. ▶ Salt content in washing water is too high. Remove any spilled special salt from the tub. Screw the cap of the special salt dispenser on tight.
-
Page 47: Clean Wastewater Pump
Transportation, storage and disposal en Insert the pump cover and press 18.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 48: Protect Appliance From Frost
en Customer Service 19.2 Protect appliance from 19.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 49: Customer Service
Customer Service en Customer Service for a period of at 20.2 AQUA-STOP guarantee least 10 years from the date on In addition to warranty claims against which your appliance was placed on the seller under the purchase agree- the market within the European Eco- ment and in addition to our manufac- nomic Area. -
Page 50: Technical Specifications
en Technical specifications 21 Technical specifications Weight Max.: 45 kg Voltage 220 - 240 V, 50 Hz or 60 Hz Power rating 2000 - 2400 W Fuse 10 - 16 A Water pressure ¡ min. 50 kPa (0.5 bar) ¡ max. 1000 kPa (10 bar) Inlet rate Min. 10 l/min Water temperature Cold water. Hot water max.: 60 °C Capacity 10 place settings You can find more information about... -
Page 51: Declaration Of Conformity
BSH Hausgeräte GmbH hereby de- A detailed Declaration of Conformity clares that the appliance with Home can be found online at www.bosch- Connect functionality conforms to the home.co.uk among the additional essential requirements and other rel- documents on the product page for evant provisions of Directive your appliance. - Page 52 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
