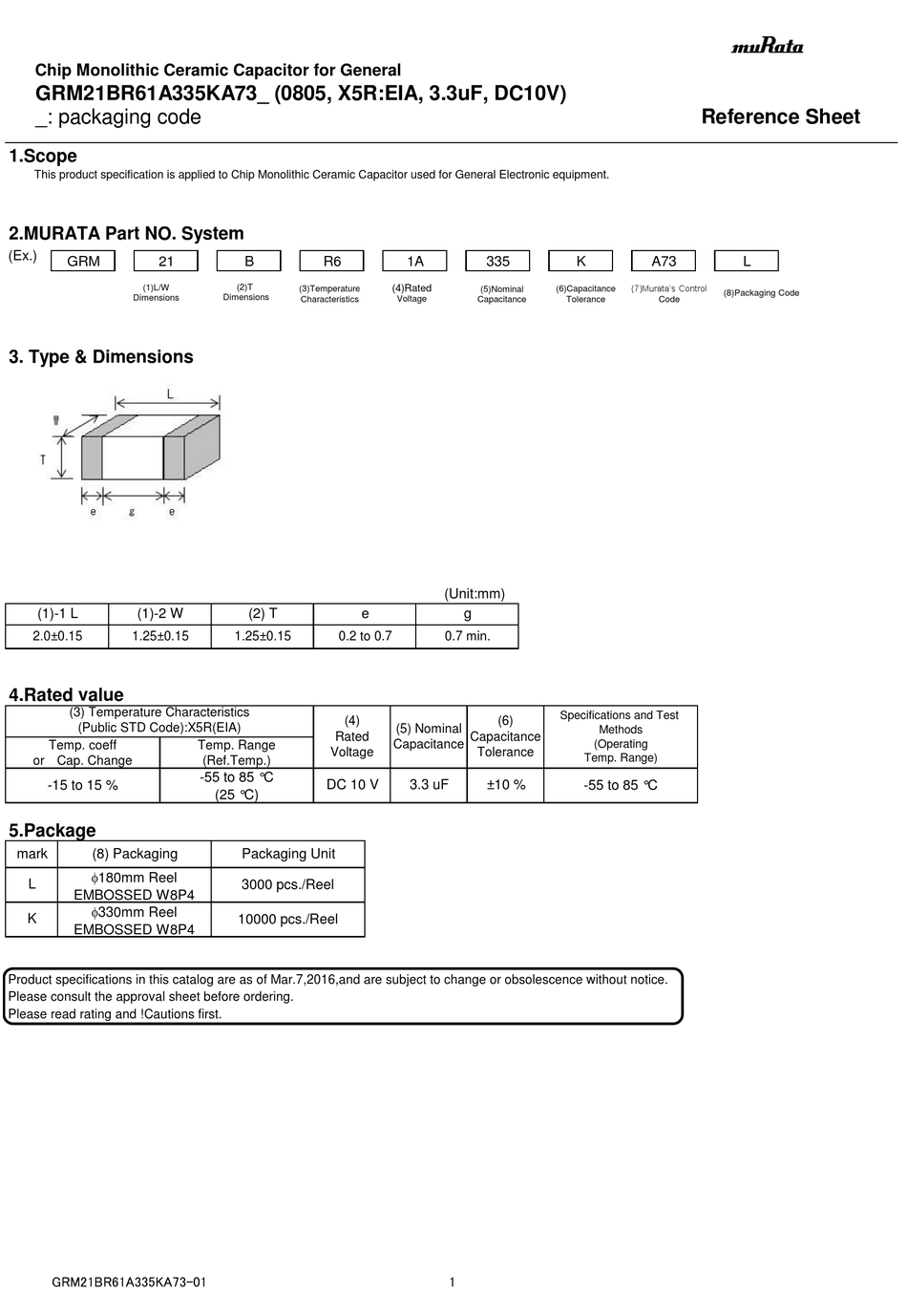

Murata GRM21BR61A335KA73 Series Reference Sheet

Chip Monolithic Ceramic Capacitor for General
GRM21BR61A335KA73_ (0805, X5R:EIA, 3.3uF, DC10V)
_: packaging code
1.Scope
This product specification is applied to Chip Monolithic Ceramic Capacitor used for General Electronic equipment.
2.MURATA Part NO. System
(Ex.)
GRM 21
(1)L/W
Dimensions
3. Type & Dimensions
(1)-1 L (1)-2 W
2.0±0.15 1.25±0.15
4.Rated value
(3) Temperature Characteristics
(Public STD Code):X5R(EIA)
Temp. coeff
or Cap. Change
-15 to 15 %
5.Package
mark (8) Packaging
f180mm Reel
L
EMBOSSED W8P4
f330mm Reel
K
EMBOSSED W8P4
Product specifications in this catalog are as of Mar.7,2016,and are subject to change or obsolescence without notice.
Please consult the approval sheet before ordering.
Please read rating and !Cautions first.
GRM21BR61A335KA73-01
B R6
(2)T
(3)Temperature
Dimensions
Characteristics
(2) T e
1.25±0.15 0.2 to 0.7
(4)
Rated
Temp. Range
Voltage
(Ref.Temp.)
-55 to 85 °C
DC 10 V
(25 °C)
Packaging Unit
3000 pcs./Reel
10000 pcs./Reel
1A 335
(4)Rated
(6)Capacitance
(5)Nominal
Voltage Capacitance
(Unit:mm)
g
0.7 min.
Specifications and Test
(6)
(5) Nominal
Capacitance
Capacitance
Tolerance
3.3 uF ±10 %
1
Reference Sheet
K A73
(7)Murata's Control
(8)Packaging Code
Tolerance Code
Methods
(Operating
Temp. Range)
-55 to 85 °C
L
