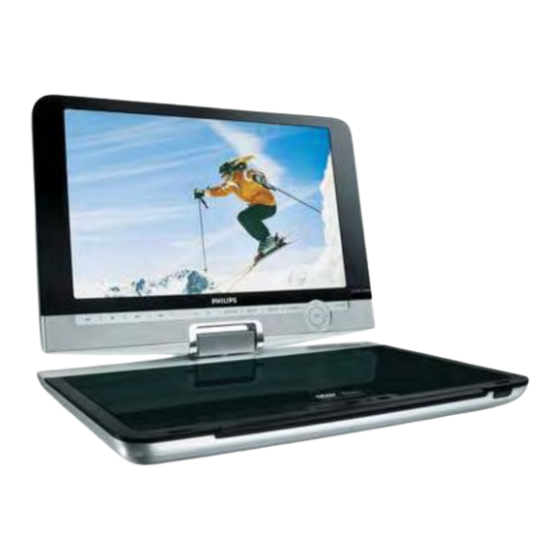

Philips PET1030 Service Manual
  1. Manuals
  2. Brands
  3. Philips Manuals
  4. Portable DVD Player
  5. PET1030
  6. Service manual
Philips PET1030 Service Manual

Philips PET1030 Service Manual

Hide thumbs Also See for PET1030:
Table of Contents

Advertisement

Quick Links

Download this manual
DVD Portable Player
Service Manual

TABLE OF CONTENTS

Technical Specification & Service Tips......................... 1
Safety Instructions..................................................... 2
Instruction for Use...................................................... 3
Mechanical Instructions.............................................. 4
Troubleshooting .........................................................5
Overall Block Diagram................................................. 6
Overall Wiring Diagram................................................7
Electrical Diagram...................................................... 8
Component Layout.................................................... 9
Service Part List......................................................... 10
Revision List............................................................. 11
©Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may by reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronics,
mechanical, photocopying, or otherwise without the prior permission of Philips
Version 1.3
All manuals and user guides at all-guides.com
PET1030/PET1035
All version
Chapter
3141 785 31733

Advertisement

Table of Contents
loading

Related Manuals for Philips PET1030

Summary of Contents for Philips PET1030

  • Page 1: Table Of Contents

    All rights reserved. No part of this publication may by reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronics, mechanical, photocopying, or otherwise without the prior permission of Philips 3141 785 31733 Version 1.3...
  • Page 2 PET1030 - Set exchange of units come in a selected range of production serial number Cure: For any return of PET1030 which comes in the following ranges of production serial number of the corresponding stroke versions PET1030/00 LL1B0719002306 - LL1B0724008506...
  • Page 3 All manuals and user guides at all-guides.com 1.0 TECHNICAL SPECIFICATION Playback disc type: DVD, Picture-CD, General SVCD, Video CD, MP3- CD, CD-R/CD-RW, WMA-CD, DVD-R, DVD- Dimensions (W x H x D): 204 x 168 x 33 mm RW, DVD+R, DVD+RW Weight: 1.0kg Power supply:...
  • Page 4 For the best performance of your DVD Portable. Check www.philips.com/support for latest software upgrades available. Download the latest software from the Philips support site Region code “0” can be used for all regions! Unzip the files and then burn it into a CD-ROM to...
  • Page 5 All manuals and user guides at all-guides.com 2.0 SAFTETY INSTRUCTIONS WAARSCHUWING WARNING Alle IC’s en vele andere halfgeleiders zijn All ICs and many other semi-conductors are gevoelig voor electrostatische ontladingen susceptible to electrostatic discharges (ESD). (ESD). Careless handling during repair can reduce life Onzorgvuldig behandelen tijdens reparatie kan drastically.
  • Page 6 All manuals and user guides at all-guides.com 2.1 ESD PROTECTION When the power supply is being turned on, you may not remove this laser cautions label. If it removes, radiation of laser may be received. PREPARATION OF SERVICING Pickup Head consists of a laser diode that is very susceptible to external static electrocity. Although it operates properly after replacement, if it was subject to electrostatic discharge during replacement, its life might be shortened.
  • Page 7 All manuals and user guides at all-guides.com SAFTY NOTICE SAFTY PRECAUTIONS LEAKAGE CURRENT CHECK Plug the AC line cord directly into a 120V AC outlet (do Measure the AC voltage across the 1500 resistor. not use an isolation transformer for this check). Use an The test must be conducted with the AC switch on and AC voltmeter, having 5000 per volt or more sensitivity.

  • Page 8: Instruction For Use

    All manuals and user guides at all-guides.com 3.0 INSTRUCTIONS FOR USE DVD PLAYER LAYOUT POWER Start / pause / resume playback. Switches the player on / off. CHR/IR/POWER Press once to stop playback Power /remote sensor /charging and store the stop position. indicator.
  • Page 9 All manuals and user guides at all-guides.com REMOTE CONTROL MENU SUBTITLE Display MENU page. Subtitle language selector. , , , RETURN Up / down / left / right For VCD menu page. navigation key. A - B To repeat or loop a sequence Confirm seletion.
  • Page 10 All manuals and user guides at all-guides.com 4.0 MECHNICAL INSTRUCTIONS 5. Rotate the top and remove screws to break 1. Side view as Fig.1 the top and the base away as Fig.5. Remove base cover adorn discreteness as Fig.1. Fig.1 Fig.5 6.
  • Page 11 All manuals and user guides at all-guides.com 4.0 MECHNICAL INSTRUCTIONS 9. Remove speaker grill as Fig.9. 13. Remove LCD TFT and function board as Fig.13. Fig.9 Fig.13 10. Remove screws to remove top cover discreteness as Fig.10. Fig.10 11.Disconnection of IF board Remove IF board and speaker as Fig.11.

  • Page 12: Mechanical Instructions

    All manuals and user guides at all-guides.com 4.0 MECHANICAL INSTRUCTIONS Close up on the connectivity of 996510006526 & 996510003961...

  • Page 13: Troubleshooting

    All manuals and user guides at all-guides.com 5.0 TROUBLESHOOTING & SERVICE TIPS SYMPTOM: NO POWER, NO GREEN LED start Check if the power cable replace cable/ No defect, return set OK? adapter set to customer AC adapter Check if the replace connector power and play and switch unit...
  • Page 14 All manuals and user guides at all-guides.com 5.0 TROUBLESHOOTING & SERVICE TIPS SYMPTOM: THE INITIAL SCREEN IS NOT DISPLAYED ON THE LCD Refer to the symptom NO start POWER, NO GREEN LED Replace broken Check if the Repair connector harness LED on the front lights up? Remove the LCD...
  • Page 15 All manuals and user guides at all-guides.com 5.0 TROUBLESHOOTING & SERVICE TIPS SYMPTOM: THE DVD DRIVE DOES NOT WORK Press the DISC cover switch at the center of the DVD player and turn on the power. Then check whether or not the optical pick- start up lens of the DVD drive lights.
  • Page 16 All manuals and user guides at all-guides.com 5.0 TROUBLESHOOTING & SERVICE TIPS SYMPTOM: THE DVD DRIVE DOES NOT OPERATE WITH BATTERY start Install a good battery does the LED lights up orange while the AC adapter is connected and does the DVD drive operate OK? NOTE: - For this check, use a battery which is not fully Replace battery...

  • Page 17: Overall Block Diagram

    All manuals and user guides at all-guides.com 6.0 OVERALL BLOCK DIAGRAM OSCILLATOR DC 9V 16M FlashROM 64M SDRAM OZ9930GN TC4W53 27MHz 74HCU04 MX29LV160CBTC-70G HY57V641620ETP-7-C HIGH VOLTAGE ASS'Y TFT MONITOR RF AMP & SERVO & DVD PROCESSOR DV23 MPEG-2 DECODER & VIDEO ENCODER PU mechanism MT1389DE/P-L SD.MMC.MS.CARD...

  • Page 18: Overall Wiring Diagram

    All manuals and user guides at all-guides.com 7.0 OVERALL WIRING DIAGRAM SWITCH PCB BATTERY VCOM BATT+ STHL BATT+ BATT+ CD/DVDSW MAIN PCB IF PCB VCOM LD/VCC STHL 3V3P LD/CD LD/DVD 3V3P EDGSL STVR VRDVD VD/CD VDD3.3V XS001 VDD3.3V BLACKLIGHT PCB LIMIT XS001 HV PCB...

  • Page 19: Electrical Diagram

    All manuals and user guides at all-guides.com 8.0 ELECTRICAL DIAGRAM MAIN BOARD CIRCUIT DIAGRAM (MT1389P) CB27 CB27 100N 100N 10U/10V 10U/10V AVDD33_VFE DV33 601H 601H CB30 CB30 CB28 CB28 100N 100N RFV18 100N 100N 10U/10V 10U/10V AVDD33_DMPLL 601H 601H DV33 601H 601H DV33...
  • Page 20 All manuals and user guides at all-guides.com 8.0 ELECTRICAL DIAGRAM MAIN BOARD CIRCUIT DIAGRAM (AUDIO) R158 R158 C122 C122 390P 390P U405A U405A R156 R156 BA4558 BA4558 C123 C123 R143 R143 R163 R163 3.9K 3.9K R146 R146 47U/4V 47U/4V C107 C107 R-MAIN 47U/4V...
  • Page 21 All manuals and user guides at all-guides.com 8.0 ELECTRICAL DIAGRAM MAIN BOARD CIRCUIT DIAGRAM (DRIVER) +P5V C179 C179 C177 C177 C165 C165 10U/10V 10U/10V 100P 100P RF3V3 DV33 CB49 CB49 C146 C146 C175 C175 10U/16V 10U/16V 100N 100N 10U/10V 10U/10V C170 C170 C174...
  • Page 22 All manuals and user guides at all-guides.com 8.0 ELECTRICAL DIAGRAM MAIN BOARD CIRCUIT DIAGRAM (POWER &CHARGE) R443 R443 R442 R442 CB145 CB145 100K 100K 330K 330K 10uF/16V 10uF/16V D413 D413 Q402A Q402A Q401A Q401A AO4801 AO4801 AO4801 AO4801 R445 R445 R444 R444 BAT+...
  • Page 23 All manuals and user guides at all-guides.com 8.0 ELECTRICAL DIAGRAM HV BOARD CIRCUIT DIAGRAM 1.5A 1.5A TFTON BRIGHT HV-GND SM04B-SURS-TF SM04B-SURS-TF SM02B-SURS-TF SM02B-SURS-TF SST-CMP ISEN VSEN GDNA VDDA DRV2 DRV1 LED1 LED1 RMCIN LED1 LED1 3.3V HS0036B HS0036B SM04B-SURS-TF SM04B-SURS-TF...

  • Page 24: Component Layout

    All manuals and user guides at all-guides.com 9.0 COMPONENT LAYOUT PET1030 MAIN BOARD DIAGRAM (TOP) PET1030 MAIN BOARD DIAGRAM (BOTTOM)
  • Page 25 All manuals and user guides at all-guides.com 9.0 COMPONENT LAYOUT PET1030K FOUNCTION BOARD DIAGRAM PET1030H HV BOARD DIAGRAM PET1030T IF BOARD DIAGRAM...
  • Page 26 All manuals and user guides at all-guides.com 9.0 COMPONENT LAYOUT PET1035M MAIN BOARD DIAGRAM (TOP) PET1035M MAIN BOARD DIAGRAM (BOTTOM)
  • Page 27 All manuals and user guides at all-guides.com 9.0 COMPONENT LAYOUT PET1030EL BACKLIGHT BOARD DIAGRAM PET1035K FUNCTION BOARD DIAGRAM PET1030H HV BOARD DIAGRAM PET1030T IF BOARD DIAGRAM...

  • Page 28: Service Part List

    PET1030 PET1030H HV PCB 996510003965 PET1035 ASS’Y PET1030 24 PIN HARDNESS-180- 996510001274 PET1035 20 PIN HARDNESS-2-PF PET1030 994000002241 (LE105) PET1030 PET1030 LITHIUM 996510003961 PET1035 BATTERY PET1030 PET1030 BATTERY 996510006526 PET1035 PROTECTIVE PCBA PET1030EL BACKLIGHT PET1035 996510004978 PCB ASS’Y PET1030 PET1030 POWERKEY...
  • Page 29 PET1030 994000002163 A102VW01 TFT LCD PET1035 PET1030 996510004977 DV23FC LOADING ASS’Y PET1035 PET1030 994000002165 YD1635-2 SPEAKER PET1035 PET1030 996510003967 TOP COVER PET1030 PET1035 PET1030 DISPLAY FRAME 996510003968 PET1035 PET1030 PET1030 DOOR + MIDDLE 996510003969 PET1035 CABINET PET1030 PET1030 996510003970 BASE COVER PET1030...
  • Page 30 All manuals and user guides at all-guides.com 10.0 SERVICE PART LIST Mechanical Part List: Service Service Description Photo Pos. 12NC PET1030 996510003972 ADJUST HINGE PET1030 PET1035 PET1030 FUNCTION BUTTON PC 996510003971 PET1035 PET1030 PET1030 LENS REMOTE SENSOR 996510003973 PET1035 PET1030...
  • Page 31 All manuals and user guides at all-guides.com 10.0 SERVICE PART LIST Accessories Part List: Service Service Photo Pos. No. 12NC Description PET1030/00 ADPV26A AC PET1030/58 994000003946 POWER PET1030/98 ADAPTOR/00 PET1035/00 ADPV26A AC ACADAPTOR POWER PET1030/05 996510003966 ADAPTOR/05 ADPV26A AC PET1030/37...

  • Page 32: Revision List

    Update content with PET1030/37/58/93/98 Version 1.2 (3141 785 31732) • Update content with PET1035/00 • Add new part PET1030 POWERKEY ASSY 12NC is 996510005764 • Replace battery 12NC from 996510003961 to 996510005903 Version 1.3 (3141 785 31733) • Add new part 996510006727 & 996510006728 •...
