Summary of Contents for GORILLA LADDERS GLA-MPX22W

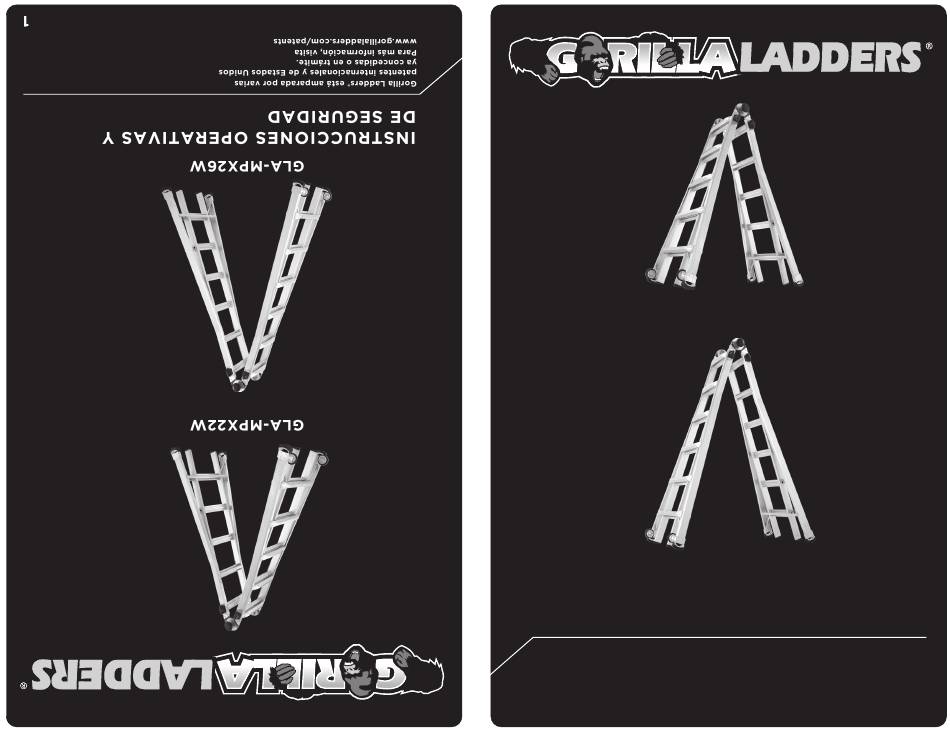

- Page 1 GLA-MPX22W GLA-MPX26W OPERATING & SAFETY INSTRUCTIONS Gorilla Ladders® are covered by several issued and pending US and International patents. For more information, please visit www.gorillaladders.com/patents 161123A...
- Page 2 Gorilla Ladders will, at its option or discretion replace or refund the purchase price paid, any unit subject to this Limited Lifetime Warranty during the warranty period.
-
Page 3: Warranty Registration
PRO/Contractor □ Homeowner/Consumer 2. Do you currently own a multi-position ladder? □ □ If yes, why did you purchase the Gorilla Ladders multi-position ladder? ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ 3. Have you purchased a Gorilla Ladders® product before? Register online at □... -
Page 5: Operating & Safety Instructions
OPERATING & SAFETY INSTRUCTIONS FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS ON THIS LADDER, INCLUDING THOSE UNDER THE STEPS, MAY RESULT IN INJURIES OR DEATH. SAFETY INSTRUCTIONS hinge lock will engage. PROPER SELECTION approved horizontal positions 3) To Lock/Unlock Rail Locks: where indicated. - Page 6 MUST ONLY BE USED WHEN BACK OF LADDER IS AGAINST A WALL AND THE LADDER IS ON A FLAT LEVEL SURFACE. SPECIFICATIONS # of Positions GLA-MPX22W GLA-MPX26W Extension Twin Stepladder Stairway 90 Degree Total Positions Ladder Size Extension 10' 10"...
-
Page 7: Locking Mechanisms
LOCKING MECHANISMS ADJUSTABLE HINGE OPERATION The two adjustable hinges located at the top of the ladder allow the ladder to change from the storage position to the other configurations. The adjustable hinges will lock in 3 positions as shown in Figures 3, 4 and 5. To Unlock To Lock Push palm buttons to... - Page 8 LOCKING MECHANISMS RAIL LOCK OPERATION The rail locks located on each side of the ladder lock the inner and outer sections and allow you to adjust the height of the ladder in one-foot increments. (see Figures 6 & 7 below) To Unlock Rail Locks To Lock Rail Locks Turn rail locks a 1/4 turn one at a...

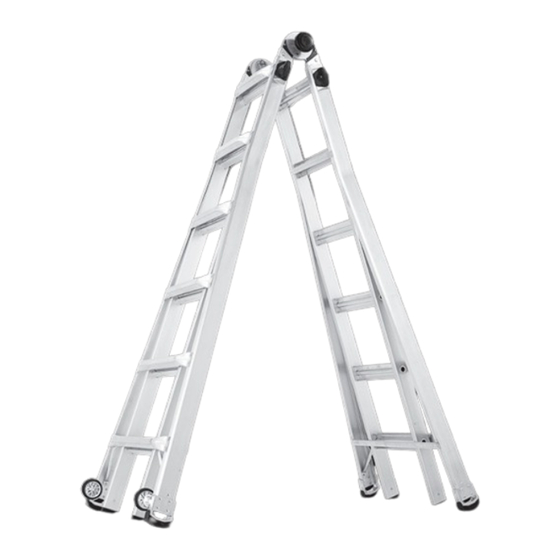

- Page 9 LADDER CONFIGURATIONS EXTENSION LADDER PROPER SET-UP AND HEIGHT ADJUSTMENT From the storage position (see Figure 8), unlock both adjustable hinges to disengage the locks as indicated in Figure 1. Pull the two sections of the ladder apart until both hinges snap into place and securely lock (see Figure 9). Push palm buttons again to disengage lock and rotate one-half of the ladder to its extension mode until hinges snap into place and securely lock (see Figure 10).
- Page 10 LADDER CONFIGURATIONS TWIN STEPLADDER PROPER SET-UP AND HEIGHT ADJUSTMENTS From the storage position (see Figure 11), unlock both adjustable hinges to disengage the locks as indicated in FIgure 1. Pull the two sections of the ladder apart until both hinges snap into place and securely lock (see Figure 12). To increase the height of the ladder, unlock the rail locks on one side of the ladder and tip the ladder to its side to allow the outer section to drop to your desired height (see Figure 13).
- Page 11 LADDER CONFIGURATIONS STAIRWAY PROPER SET-UP AND HEIGHT ADJUSTMENTS From the storage position (see Figure 15), unlock both adjustable hinges to disengage the locks as indicated in Figure 1. Pull the two sections of the ladder apart until both hinges snap into place and securely lock (see Figure 16).
- Page 12 LADDER CONFIGURATIONS 90 DEGREE PROPER SET-UP AND HEIGHT ADJUSTMENTS The ladder must only be used in this position when one side of the ladder is one rung shorter than the other side. Only use ladder against a solid wall. From the storage position (see Figure 19), unlock both adjustable hinges to disengage the locks as indicated in Figure 1.
-
Page 13: Accessories Available
ACCESSORIES AVAILABLE: RAIL BRACKETS Gorilla Ladders® rail brackets allow the multi-position ladder to be used as two scaffold bases. To order, please visit us at www.gorillaladders.com or contact our customer service at 1-800-867-6763. Plank sold separately NOTE: WHEELS MUST BE... -
Page 14: Maintenance
Maintenance To ensure smooth operation, lubricate the mechanical hinges and rail locks with light lubricant every six months and prior to long term storage. This should be performed more often as use dictates, and under extreme weather conditions. (The recommended lubricant is a 10 to 20 weight light machine oil, such as 3-in-ONE®...
