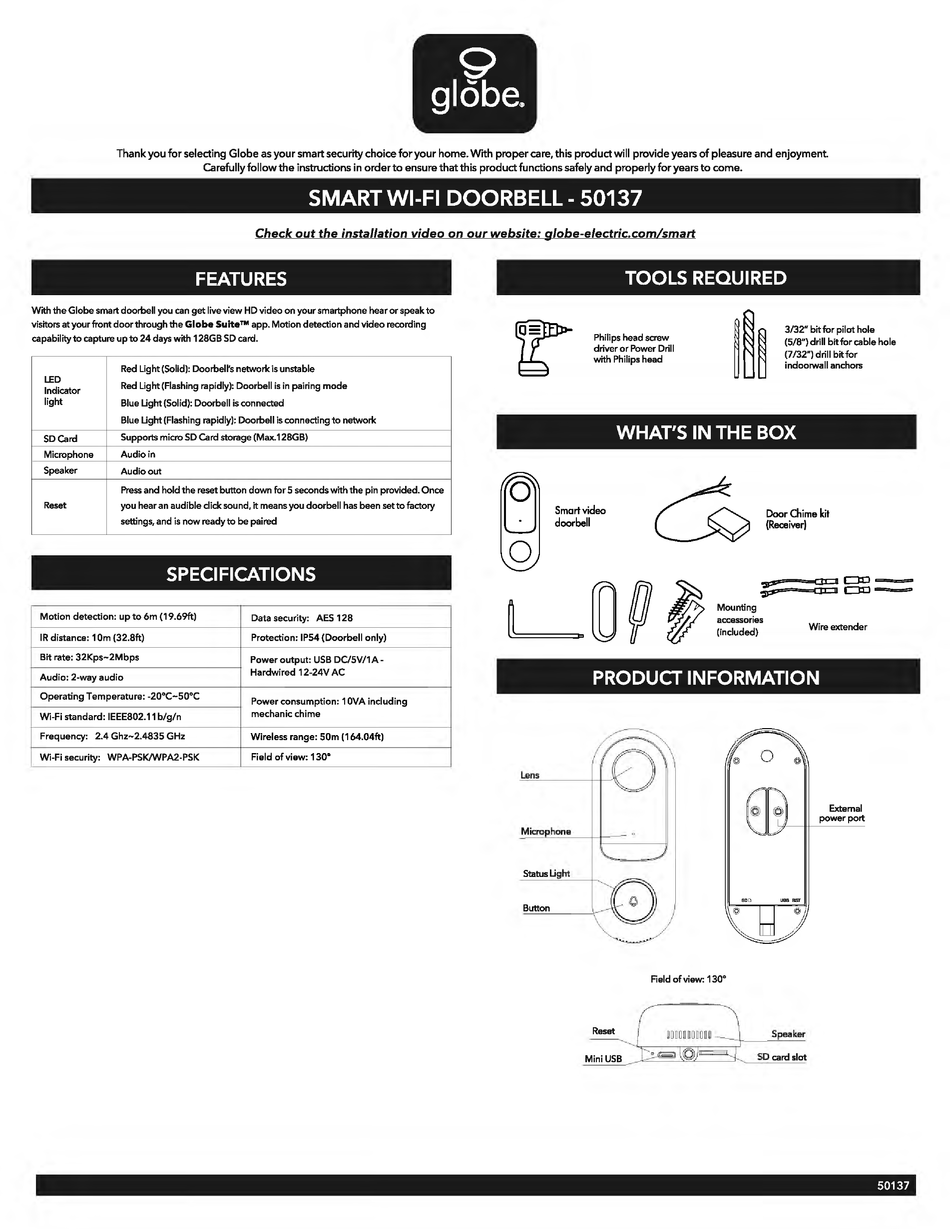

Globe 50137 Quick Start Manual

9
globe~
Tnank you for selecting Globe as your smart security cnoice for your nome. Witn proper care, tliis product will provide years
of
pleasure and enjoyment.
Carefully follow tne instructions in order to ensure tnat tnis product functions safely and properly for years to come.
SMART WI-Fl DOORBELL - 50137
Check out the installation video
on
our website: 9/obe-e/ectric.comlsmart
FEATURES
With the Globe smart doorbell you can get live view HD video on your smartphone hear or speak to
visitors at your front door through the Globe Suite™ app. Motion detection and video recording
capability to capture up to 24 days with 128GB SD card.
Red Light (Solid): Doorbell's network is unstable
LED
Red Light (Flashing rapidly): Doorbell is in pairing mode
Indicator
light
Blue Light (Solid): Doorbell is connected
Blue Light (Flashing rapidly): Doorbell is connecting to network
SD Card
Supports micro SD Card storage (Max.128GB)
Microphone
Audio in
Speaker
Audio out
Press and hold the reset button down for 5 seconds with the pin provided. Once
Reset you hear an audible click sound, it means you doorbell has been set to factory
settings, and is now ready
to
be paired
SPECIFICATIONS
Motion detection: up to 6m (19.69ft)
Data security: AES 128
IR distance: 1 Om (32.8ft) Protection: IP54 (Doorbell only)
Bit rate: 32Kps-2Mbps
Power output: USB DC/5V/1A-
Audio: 2-way audio
Hardwired 12-24V AC
Operating Temperature: -20°C-50°C
Power consumption: 1 OVA including
Wi-Fi standard: IEEE802.11 b/g/n
mechanic chime
Frequency: 2.4 Ghz-2.4835 GHz
Wireless range: 50m (164.04ft)
Wi-Fi security:
WPA-PSK/WPA2-PSK Field of view: 130"
TOOLS REQUIRED
Philips head screw
driver or Power Drill
with Philips head
3/32" bit for pilot hole
(5/8") drill bit for cable hole
(7 /32") drill bit for
indoorwall anchors
WHAT'S IN THE BOX
~
Smart
video
doorbell
Door
Chime
kit
(Receiver)
0
Lens
Microphone
Status Light
Button
-">"'--===1=n:II::J1
CJ:O
===
"' " >"' " """"" ....
=l=n:i:c:u CJ:O
=
Mounting
accessories
(included)
Wire extender

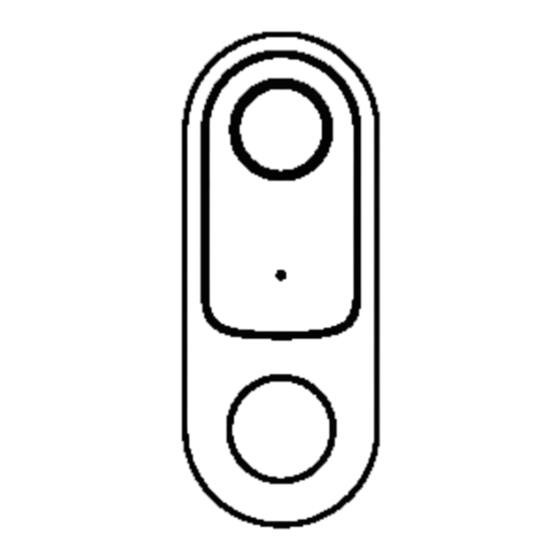

PRODUCT INFORMATION
Field of view: 130"
Reset
MiniUSB
Speaker
SD card slat
External
power port
50137
