EET iMeter 7A Quick Start Manual

Package Contents

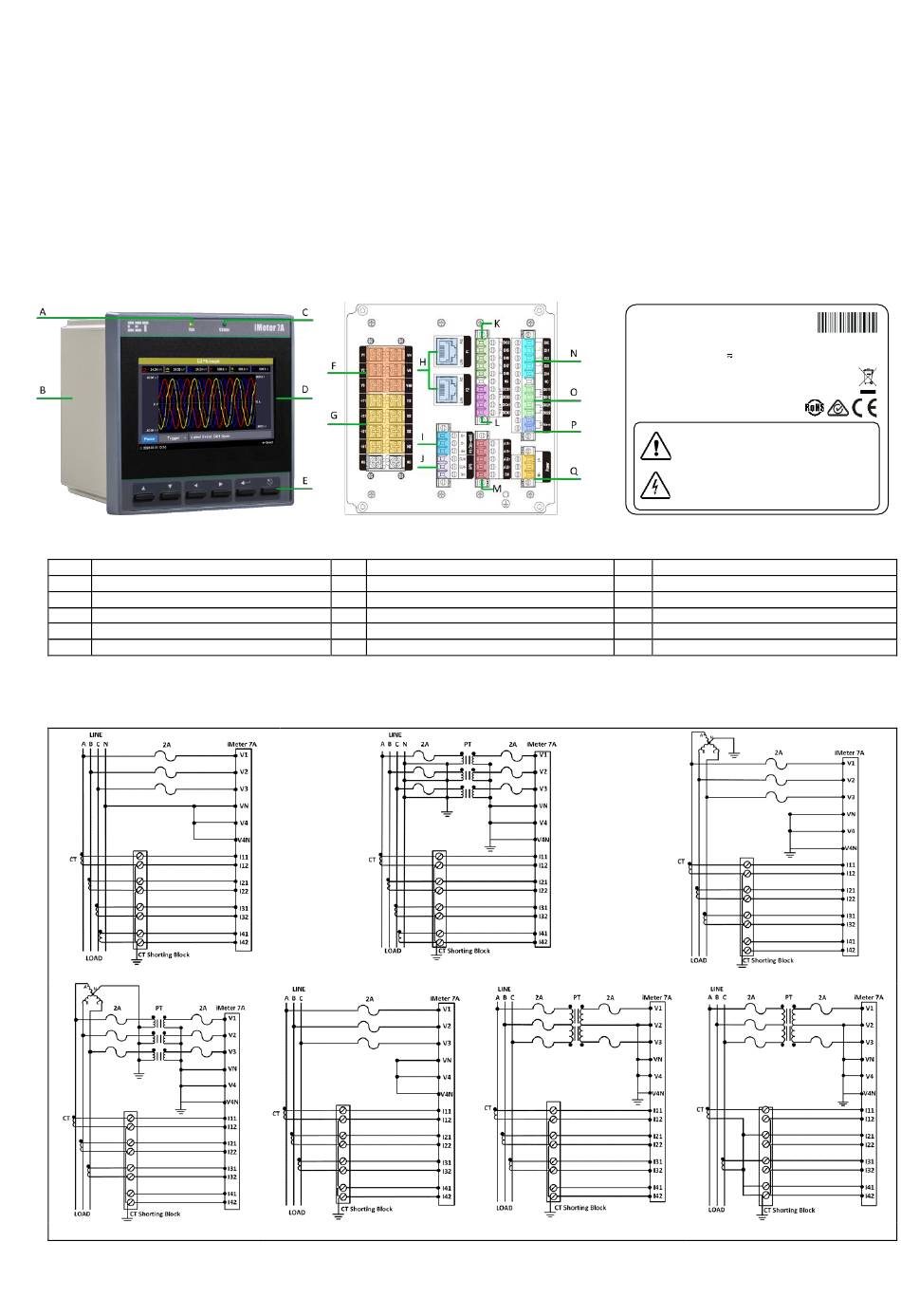

Meter Overview
Front View
A Running Indicator
B Enclosure
C Communication Indicator
D TFT Color LCD Display
E Navigation Buttons
F Voltage Inputs
* Optional.
# The Analog Inputs may be optionally replaced by RTD Inputs. Two standard Digital Outputs may be optionally replaced by SS Pulse Outputs.
Wiring Diagrams
3P4W Wye, no PTs, 4CTs
3P3W Grounded Wye, 3PTs, 3CTs
iMeter 7A Quick Start Guide
a. iMeter 7A with all mounting brackets and plug-in connectors installed
b. Factory Test Report
c. CD with iMeter 7A User Manual
d. Quick Start Guide (this document)
Rear View – 8xDI, 4xDO, 1xAlarm, 2xAI,
I4, RS-485 and Dual 10/100BaseT Ports
G Current Inputs
H 10/100BaseT Ethernet Ports
I RS-485 Port
J GPS Input
K Digital Inputs*
L Digital Outputs*
3P4W Wye, 3PTs, 4CTs
3P3W Delta, no PTs, 3CTs
Version 1.0
3P3W Delta, 2PTs, 3CTs
iMeter 7A
Model: iMeter 7A-A5925AAE
Power Suppl y: 95-250V , 47-440Hz, 10W, OVC III
Voltage Inputs: 400V 3 L-N, 690V 3 L-L, CAT III
~ ~
Current Inputs: 5A
Frequency: 50Hz
MAC Address 1: 00-00-00-00-00-00
MAC Address 2: 00-00-00-00-00-00
Installation and maintenance s hould only be performed by
qualified and competent personnel who have been properly
trained to handle high voltage an d current d evices in accordance
with local and national electrical codes.
Hazardous voltage can cause electric shock, burn or explosion.
Disconnect and lockout power s ource, open all PT secondaries
and short all CT secondaries before servicing. Failure to observe
proper precaution may result in serious injury or death .
Serial Number and Warning Label
M Analog Inputs*/RTD Inputs*
#
N Digital Inputs
O Digital Outputs / SS Pulse Outputs*
#
P Alarm Output
Q Power Supply
3P3W Grounded Wye, no PTs, 3CTs
3P3W Delta, 2PTs, 2CTs
Revision Date: July 5, 2022
1801103096
