Elara™ R-Series Radar
Quick Install Guide

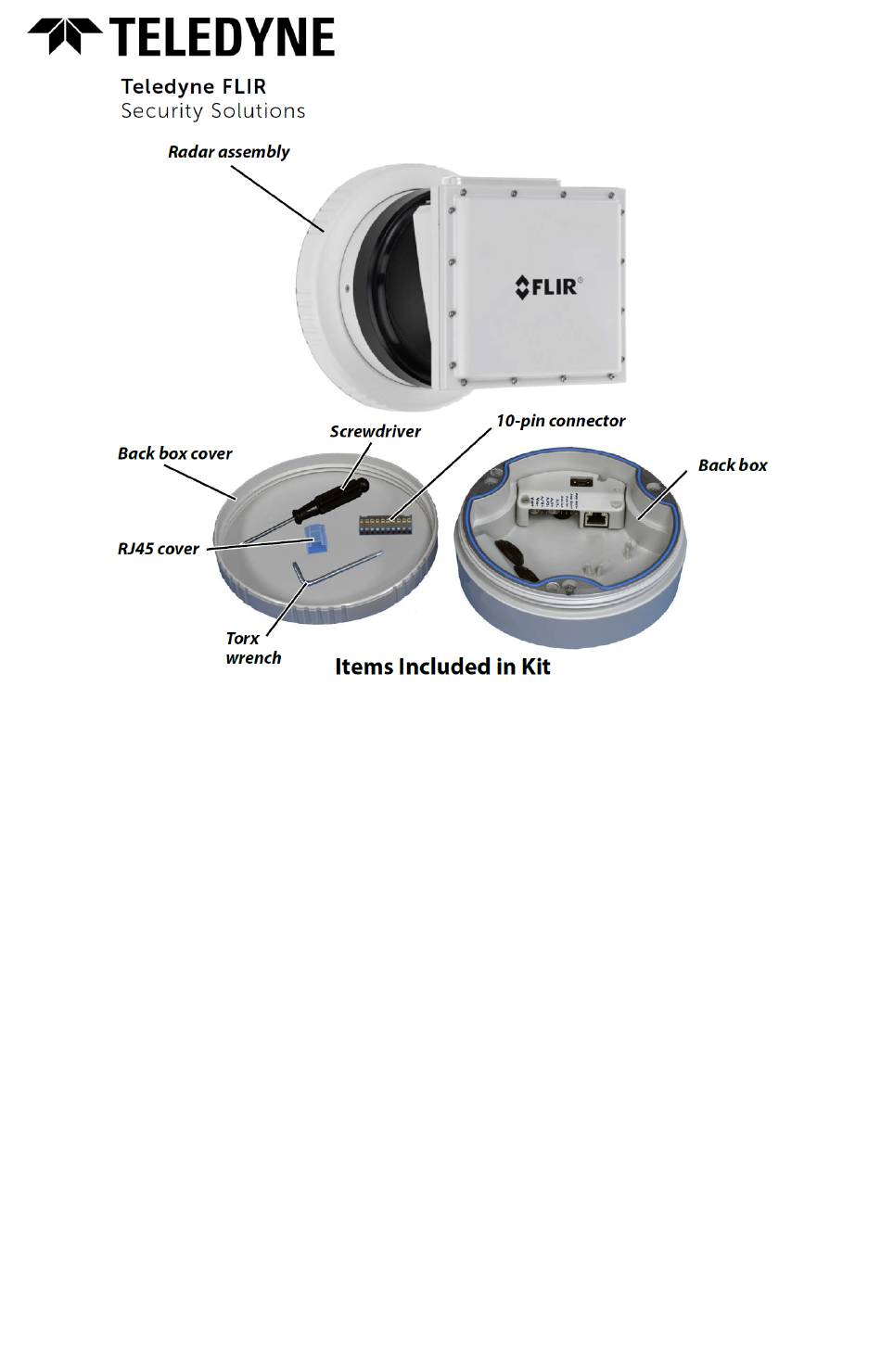

1 Check Contents
Make sure all of the items above are included in the radar kit.
2 Select a Location
Select a suitable location to mount the radar. Teledyne FLIR recommends
mounting the Elara R-Series Radar at a height of approximately 4 m (13 ft) and so
that the radar assembly is horizontally level. For more advice on positioning and
orienting the radar, see the Elara R-Series Radar Installation and User Guide.
Verify that the operating temperature range is between -40°C ~ 70°C (-40° ~ 158°
F), 10-90% relative humidity (non-condensing).
Supplying Power to the Radar
The radar can be powered by 12 VDC; 24 VAC; or PoE IEEE 802.3af—for
example, Teledyne FLIR part number #T911183 16W Gigabit multi-plug PoE
injector. Power consumption is <13W.
3 Connect the Radar
To install the radar, Teledyne FLIR recommends connecting it on a bench or in a
lab and configuring it for networking before mounting and aiming it. However,
circumstances can dictate adjusting the sequence of the steps. For example, you
can mount the radar before configuring it for networking, or connect the radar
before mounting it.
427-0101-01-28 Rev 110
March 2023
This document does not contain any export-controlled information.
Advertisement
Related Manuals for Teledyne FLIR Elara R Series
Summary of Contents for Teledyne FLIR Elara R Series
- Page 1 Power consumption is <13W. 3 Connect the Radar To install the radar, Teledyne FLIR recommends connecting it on a bench or in a lab and configuring it for networking before mounting and aiming it. However, circumstances can dictate adjusting the sequence of the steps. For example, you can mount the radar before configuring it for networking, or connect the radar before mounting it.
- Page 2 VAC / VDC - 4 Configure for Networking To discover the radar on the network, Teledyne FLIR recommends using the FLIR Discovery Network Assistant (DNA) tool. Version 2.3.0.20 or higher supports Elara R-Series, does not require a license to use, and is a free download from product's web page on the Teledyne FLIR website.
- Page 3 · For information about using the supported VMS to configure the radar, see the VMS documentation. Notes · For information about accessing the radar's web page, see the radar's installation and user guide. By default, DHCP is enabled on the radar and a DHCP server on the network assigns the radar an IP address.
-
Page 4: Attach The Mounting Bracket
For information about accessories Teledyne FLIR offers to mount the radar in a corner, on a pole, or on a wall, see the FLIR Security Fixed Mount Solutions Accessory Guide. -
Page 5: Route The Cables
a. Remove the back box cover by unscrewing it from the back box. b. The mounting bracket is shipped attached to the back box. Using the screwdriver, unscrew the three quarter-turn twist-lock screws to release the bracket. To attach the mounting bracket to a standard electrical box: Use the holes in the mounting bracket and the corresponding holes in the electrical box, according to the box labels engraved on the bracket;... - Page 6 g. Terminate the cables and then connect them to the radar according to the information in Connect the Radar. 8 Assemble the Radar a. Using the screwdriver, secure the back box onto the mounting bracket to tighten the three quarter- turn, twist-lock assemblies.
- Page 7 9 Upload Map Image Using the radar's web page, you can Upload Map Image, Aim the Radar and Test Target Detection, and Define Alarm and Exclusion Regions. For instructions on logging in to the camera's web page, see the Elara R-Series Radar Installation and User Guide.
-
Page 8: Contact Information
Tips · Exclusion regions can help eliminate alarms from leaves, trees or bushes moving in the wind, for example. · For more information about installing, configuring, and operating the radar, including detection distances and pairing with a FLIR PTZ camera, see the Elara R-Series Radar Installation and User Guide.
