Inspection Certificate
Bulletin de contrôle ● Certyfikat kontrolny
Please keep safely!
A bien conserver, s.v.p.! ● Przechowywać w bezpiecznym miejscu!
English: The product you have purchased was manufactured in accordance with the high quality norms. The product unit has been
carefully inspected and packed. In order to avoid possible problems during the assembly carried out by yourself or the building company
of your choice, we recommend that you inspect the delivery for its completeness in accordance with the list of pieces before assembly.
This inspection must be carried out within 14 days after delivery to your place. Warranty claims are limited to the exchange of defective
materials. Defective product parts, which have already been used or painted, are excluded from being replaced. All further claims are
excluded! In cases of complaints, please pay attention to the following procedures: Please present this inspection certificate along with the
sales receipt to your place of purchase. Only in cases where these documents are presented will the complaint be dealt with quickly and
without complications.
Français: Le produit que vous venez d'acheter a été fabriqué en respectant de hautes normes de qualité. Ce produit a été testé et emballé
avec soin. Afin d'éviter des problèmes éventuels pendant la construction par vous-même ou par la société de construction mandatée,
nous vous prions de bien vouloir vérifier que toutes les pièces ont été fournies selon la liste des pièces avant que vous ne commenciez la
construction. Il vous incombe de faire ce contrôle dans les 14 jours après la fourniture. Les revendications en dédommagement se limitent
à l'échange de matériel défectueux. Les pièces défectueuses, déjà construites ou peintes, ne font pas l'objet de l'échange. Toutes les
revendications ultérieures ne sont pas prises en compte ! En cas d'une réclamation, veuillez respecter le déroulement suivant : il vous
faudra présenter à votre commerçant agréé ce bulletin de contrôle avec le récépissé de l'achat. Ce ne sera que moyennant présentation
de ces documents qu'un traitement rapide et sans problème de votre réclamation sera possible!
Polski: Produkt, który Państwo zakupili, wykonano według najwyższych norm jakości. Elementy konstrukcyjne przed zapakowaniem
przeszły dokładną kontrolę jakości. Aby uniknąć problemów podczas samodzielnego montażu, bądź montażu zleconego firmie
budowlanej, przed montażem zalecamy sprawdzenie zawartości przesyłki zgodnie z listą części zamieszczonych w zestawie. Kontroli
kompletności zestawu należy dokonać w ciągu 14 dni od dostarczenia przesyłki. Reklamacje objęte gwarancją ograniczają się do wymiany
wadliwych elementów. Wadliwe elementy, które zostały użyte lub pomalowane nie będą podlegały wymianie ani dalszym reklamacjom. W
przypadku potrzeby zgłoszenia reklamacji, prosimy przestrzegać poniższych procedur: prosimy przedłożyć Certyfikat kontrolny wraz z
paragonem zakupu i adresem dostawy. Reklamacje będą rozpatrywane wyłącznie po dostarczeniu powyższych dokumentów.
Factory inspection by ● Contrôle à partir de l'usine par ●
Kontrola fabryczna do
.........................................................................................
Pack number ● Pack Nr. ● Nnumer opakowania
........................................................................................
Date ● Data ● Datum
..........................................................................................
Art. Nr. FR34-3553-6
4743142093726

Advertisement

Table of Contents
loading

Summary of Contents for Palmako FR34-3553-6

  • Page 1 Inspection Certificate Bulletin de contrôle ● Certyfikat kontrolny Art. Nr. FR34-3553-6 Please keep safely! 4743142093726 A bien conserver, s.v.p.! ● Przechowywać w bezpiecznym miejscu! English: The product you have purchased was manufactured in accordance with the high quality norms. The product unit has been carefully inspected and packed.
  • Page 2 To be completed by buyer! (Please use block letters) ● A remplir par l’acheteur! (en lettres d’imprimerie, s’il vous plaît) ● Wypełnia nabywca (drukowanymi literami) Place of purchase ● Source d’achat ● Miejsce zakupu: Buyer’s address ● Adresse du client ● Adres nabywcy: ……………………………………………………………………………...

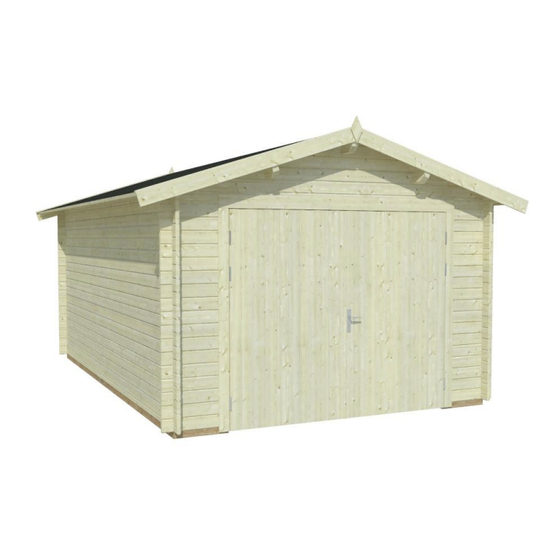

  • Page 3 Installation manual Notice de montage ● Instrukcja instalacji Log cabin FR34-3553-6 Maisonnette en poutres ● Dom z bali Width 350 x Depth 530 cm Largeur/Profondeur ● Szerokość/Głębokość Log thickness 34 mm Épaisseur des murs ● Grubość ścian The producer shall have the right to make technical changes to the product ● Le producteur réserve le droit d’effectuer des...
  • Page 4 16.3m²...
  • Page 14: General Information

    Installation manual – English 1 General information Dear client, We are glad that you have decided in favour of our garden house! Please read the assembly manual carefully before proceeding with the house installation! You will thus avoid problems and will not waste time. Recommendations: ➢...
  • Page 15: Preparation For Assembly

    Installation manual – English Garden house painting and maintenance Wood is a natural material, growing and adapting depending on weather conditions. Large and small cracks, colour tone differences and changes, as well as a changing structure of wood are not errors, but a result of wood growing and a peculiarity of wood as a natural material.
  • Page 16 Installation manual – English Preparation of components: Sort the components based on the wall plans (see Technical specifications) and place them at the four sides of the house in the installation sequence. ATTENTION: Never place the components directly on grass or a muddy surface because it will be very difficult or even impossible to clean them up later!
  • Page 17 Installation manual – English Base frame (Foundation joists) The base frame of the house must be completely flat and level to ensure that the installation proceeds without problems. ATTENTION: different house can have different foundation placements – see the appended base frame drawing (in Technical specifications)! Place the impregnated foundation joists on the prepared foundation in accordance with the drawing at equal intervals.
  • Page 18: Door And Window

    Installation manual – English Continue the installation of the walls by strongly forcing the wall logs into one another. If necessary, use the hitting block and hammer. At the same time, do not forget to begin the installation of the door and windows.
  • Page 19 Installation manual – English Apex In most cases, the apex is supplied in one piece (attention: in some house options, the apex can comprise several parts! In this case, these parts will have to be screwed together prior to other actions).
  • Page 20 Installation manual – English Having installed the roof boards, the roof felt and roof Installation of roof slats: slats must be attached. The table of components shows whether the roof cover material and slats are included with this house option! First of all, screw the roof edge reinforcements and eave edgings under the roof board ends.
  • Page 21: General Advice

    Installation manual – English this case, the floor boards should not be attached very densely to avoid likely bulging. Leave some space (1-2 mm) between the floor boards to allow for swelling. But if your climate is warm and dry, you can install the boards densely because they will become drier and spaces may appear between them.
  • Page 22: Cher Client

    Notice de montage – Français I. Généralités Cher client, Nous sommes heureux que votre choix se soit porté sur notre maison de jardin! Il est important de lire entièrement cette notice de montage avant de commencer la construction de votre maisonnette en poutres! Vous vous éviterez ainsi des problèmes et des pertes de temps inutiles. Conseils: ...
  • Page 23: Préparation Au Montage

    Notice de montage – Français Peinture et entretien Le bois est un produit naturel qui travaille de façon variable. Des caractéristiques telles que les madrures grossières et fines, les nuances de couleurs et les modifications, de même que les imbrications, ont leur origine dans la croissance du bois.
  • Page 24: Montage

    Notice de montage – Français Préparation des détails: Classez le matériel et déposez-le sur les quatre côtés de la maison, conformément à l'ordre de montage. IMPORTANT: Ne déposez pas les bois directement sur le gazon ou dans la saleté, car les bois seront alors difficiles, voire impossibles à...
  • Page 25 Notice de montage – Français Posez les longrines imprégnées sur les fondations préparées, en respectant à peu près le même écartement entre les longrines (voir plan de fondations dans les Caractéristiques techniques). Veillez à ce que les longrines soient de niveau et à angles droits, avant qu'elles ne soient assemblées par vissage. REMARQUE: Il est conseillé...
  • Page 26 Notice de montage – Français Porte et fenêtres Montage des dormants (nécessaire seulement dans le cas d'une Dormants: porte double!):  Dans le cas de la porte double, les éléments du dormant sont livrés détachés, pour des raisons transport, faut commencer par les assembler.
  • Page 27 Notice de montage – Français Ne procéder au réglage définitif de la porte qu'au bout de 2 à 3 semaines environ, après que le bois se soit adapté au climat et que les madriers des parois se soient mis en place. Pignons Le triangle du pignon est la plupart du temps en une seule pièce.
  • Page 28 Notice de montage – Français Une fois que les planches du toit ont été posées, il faut Montage des baguettes du toit: mettre en place le carton bitumé du toit et les baguettes de finition du toit. Pour savoir si la couverture et les baguettes de finition du toit font partie de l'étendue de la fourniture, reportez-vous à...
  • Page 29 Notice de montage – Français sèches, mais que le climat est humide, elles absorbent facilement l'humidité. C'est la raison pour laquelle il est conseillé de ne pas fixer les planches trop près les unes des autres, afin d'éviter les éventuels gonflements. Laissez 1 à...
  • Page 30: Instrukcja Instalacji

    Instrukcja instalacji 1 Instrukcja montażu Drogi kliencie, Dziękujemy za wybór naszego domu ogrodowego! Przed montażem prosimy o dokładne zapoznanie się z instrukcją! Pozwoli to uniknąć problemów i oszczędzi czas. Dokumentację załączoną do produktu należy zachować. Zalecenia:  Przed przystąpieniem do montażu opakowanie z domem należy przechowywać w suchym miejscu, nie w bezpośrednim kontakcie z podłożem i zabezpieczone przed czynnikami atmosferycznymi (wilgoć, słońce, itp.) Nie należy przechowywać...
  • Page 31: Przygotowanie Do Instalacji

    Instrukcja instalacji Malowanie i konserwacja domu ogrodowego Drewno jest naturalnym materiałem, który pracuje i zmienia się pod wpływem warunków atmosferycznych. Większe i mniejsze pęknięcia, przebarwienia oraz zmiany struktury drewna nie są wadami a jedynie częścią naturalnego procesu przemian materiału. Drewno pozostawione na jakiś czas bez zabezpieczenia szarzeje, a z czasem robi się niebieskie i pleśnieje.
  • Page 32 Instrukcja instalacji Przygotowanie elementów: Posegregować elementy zgodnie z planami ścian (patrz Specyfikacja techniczna) umieść czterech stronach domku według sekwencji instalacji. UWAGA: Nigdy nie umieszczać elementów bezpośrednio na trawie błotnistej powierzchni, ponieważ może to utrudnić lub uniemożliwić ich wyczyszczenie! Fundament Odpowiedni fundament to najważniejszy aspekt zapewniający długotrwałość i bezpieczeństwo domu. Jedynie całkowicie równy, prostokątny i wytrzymały fundament zapewni bezproblemową...
  • Page 33 Instrukcja instalacji Rama podstawy (legary fundamentu) Rama podstawy domu musi być całkowicie płaska i równa, by zapewnić prawidłową instalację. UWAGA: dla różnych domów konieczne może być odmienne rozmieszczenie fundamentów - patrz załączony rysunek ramy podstawy (w Specyfikacji technicznej)! Zgodnie z rysunkiem umieścić zaimpregnowane legary fundamentów na przygotowanym fundamencie w równych odstępach.
  • Page 34 Instrukcja instalacji Kontynuować instalację ścian mocno wciskając jedną belkę w drugą. W razie konieczności skorzystać z klocka i młotka. Jednocześnie należy pamiętać, by rozpocząć instalację od drzwi i okien. Należy rozpocząć instalację drzwi po umieszczeniu 5-6 warstw belek. Okna i drzwi Futryna: Instalacja futryny (konieczna tylko w przypadku drzwi dwuskrzydłowych!):...
  • Page 35 Instrukcja instalacji UWAGA: Przymocowywanie drzwi i okien do belek ścian nie jest konieczne! W przypadku potrzeby mocowania, wystarczy przymocować je przy użyciu kilku śrub w dolnej części ramy, ponieważ belki będą się obniżać w miarę wysychania. Można finalnie dopasować drzwi i okna dopiero po 2-3 tygodniach od zainstalowania domu, gdy dom dostosuje się...
  • Page 36 Instrukcja instalacji dachowych należy Instalacja łat dachowych: zainstalowaniu desek przymocować papę bitumiczną oraz łaty dachowe. W tabeli elementów pokazano czy do danego domu dołączono materiał pokrywający dach oraz łaty! Najpierw przykręcić śrubą wzmocnienia krawędziowe dachu oraz krawędzie listwy okapu pod końcami desek dachowych.
  • Page 37 Instrukcja instalacji UWAGA: W zależności od klimatu panującego w miejscu instalacji domu, deski podłogowe mogą puchnąć lub kurczyć się. Jeśli deski podłogowe są suche, a klimat wilgotny, z łatwością będą pochłaniać wilgoć. W takim przypadku nie należy ciasno mocować desek, by uniknąć powstawania wybrzuszeń.
