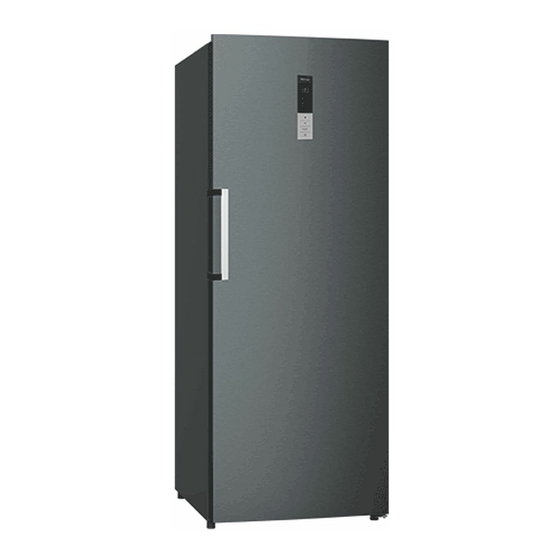

- Page 1 ENGLISH CSH431W CSH430B CSH429S USER MANUAL FROST FREE VERTICAL FREEZER Keep this manual in a safe location and use it for reference. Read this manual carefully before commencing operation of this appliance, and comply with the Terms and Conditions. www.chiq.com.au...
-
Page 2: Safety Tips
SAFETY WARNING! t is hazardous for anyone other than authorized service personnel to carry out servicing or repairs which involves the removal of covers. To avoid the risk of an electric shock do not attempt to repair this appliance yourself. WARNING! isk of fire / flammable materials. - Page 3 o not damage the refrigerant circuit. o not use electrical appliances inside the food storage compartments of the appliance, unless they are of type recommended by the manufacturer. o not store explosive substances such as aerosol cans with a flammable propellant in this appliance. his appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 4: Product Features
friendly are used for the refrigerator, causing no damage to the ozone layer and having a very small impact on the global warming. R600a is flammable, and sealed in a refrigeration system, without leakage during normal use. But, in case of refrigerant leakage due to the refrigerant circuit being damaged, be sure to keep the appliance away from open flames and open the windows for ventilation as quickly as possible. - Page 5 Note：Figure 1, Figure 2 only illustrate the space demand of the product. Level ground Place the refrigerator on the solid and flat ground (floor) to keep it stable, or else, it will give rise to vibration and noise. When the refrigerator is placed on such flooring materials as carpet, straw mat, polyvinyl chloride, the solid backing plates should be applied underneath the refrigerator, so as to prevent color change due to heat dissipation.
- Page 6 extinguished automatically if no key operation within 3 minutes. When the display is off, it will light up if any door is opened or any key is pressed. The following key operations are valid only when the keys are unlocked and gets illuminated on the display. (Refer to 1.6 for unlocking the keys) 1.
- Page 7 Precautions for use ⚫ The appliance might not operate consistently (there is possibility of defrosting or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold limit of the temperature range for which the refrigerating appliance is designed ⚫...
-
Page 8: Maintenance And Cleaning
control knob to the low mode, with the freezer temperature lowered. So, foods can be frozen up in fast manner, with the food freshness well kept. Tips for special needs Moving the refrigerator/freezer •Location Do not place your refrigerator/freezer near a heat source, e.g. cooker, boiler or radiator. Avoid it from direct sunlight in out-buildings or sun lounges. -
Page 9: Reversing The Door
Flip cover: Keep the flip cover in the vertical direction, align its right side with the revolving shaft opening, and then pull out with force to disassemble the flip cover. Note: It is forbidden to close the door when the flip cover is opened, otherwise the refrigerator door may be damaged. - Page 10 Lift the refrigerator door up by 50mm to remove the refrigerator door. Screw off the three bolts on the upper hinge, remove the upper hinge, and pry off the upper hinge cover, door sleeve, magnet. Remove the front leveling feet, use the tool to remove the 4 screws to fix the hinge, and then remove the hinge.
- Page 11 Remove the door stopper and door closer from the door, take out the door closer from the accessory bag, and install it on the left side of the door. Remove the magnet from the door right side, and install it on the door left side Install the door onto the door cabinet.
- Page 12 They can take this product for environmentally safe recycling. For any enquiries, please call the CHiQ Cusotmer care on: 1300 796 688.
