Topicon MDT740 Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

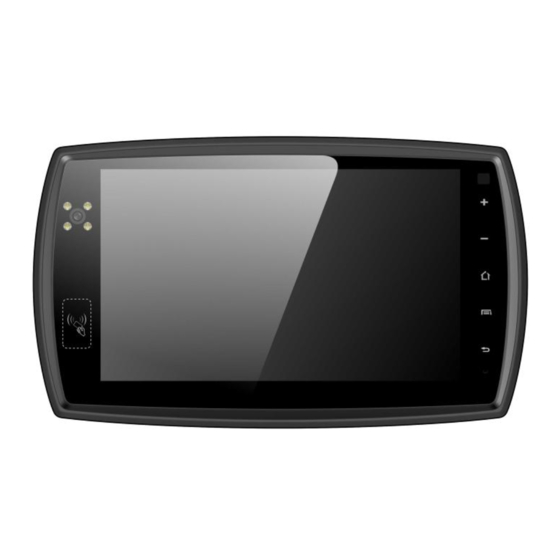

Product introduction
MDT740 has optional features (wifi, BT, GPS, 2G/3G/4G,LoRa, back camera, front camera, RFID,
lightsensor, gyroscope, accelerometer)
Highlights:
4G – pls insert the SIM card when the device if complete off
front camera – there are 6 IR LED around the camera. if you enable the flash function in front camera,
then you will see the IR LED is on. In this case, the picture will be in black and white
Pls move right to open the
cover, you will hear "click"
sound, it is normal
All rights reserved. No part of this work may be reproduced or copied in any form or by any means (graphic, electronic, or mechanical, including photocopying,
recording, recording taping, or information and retrieval systems) without the written permission of the copyright owner

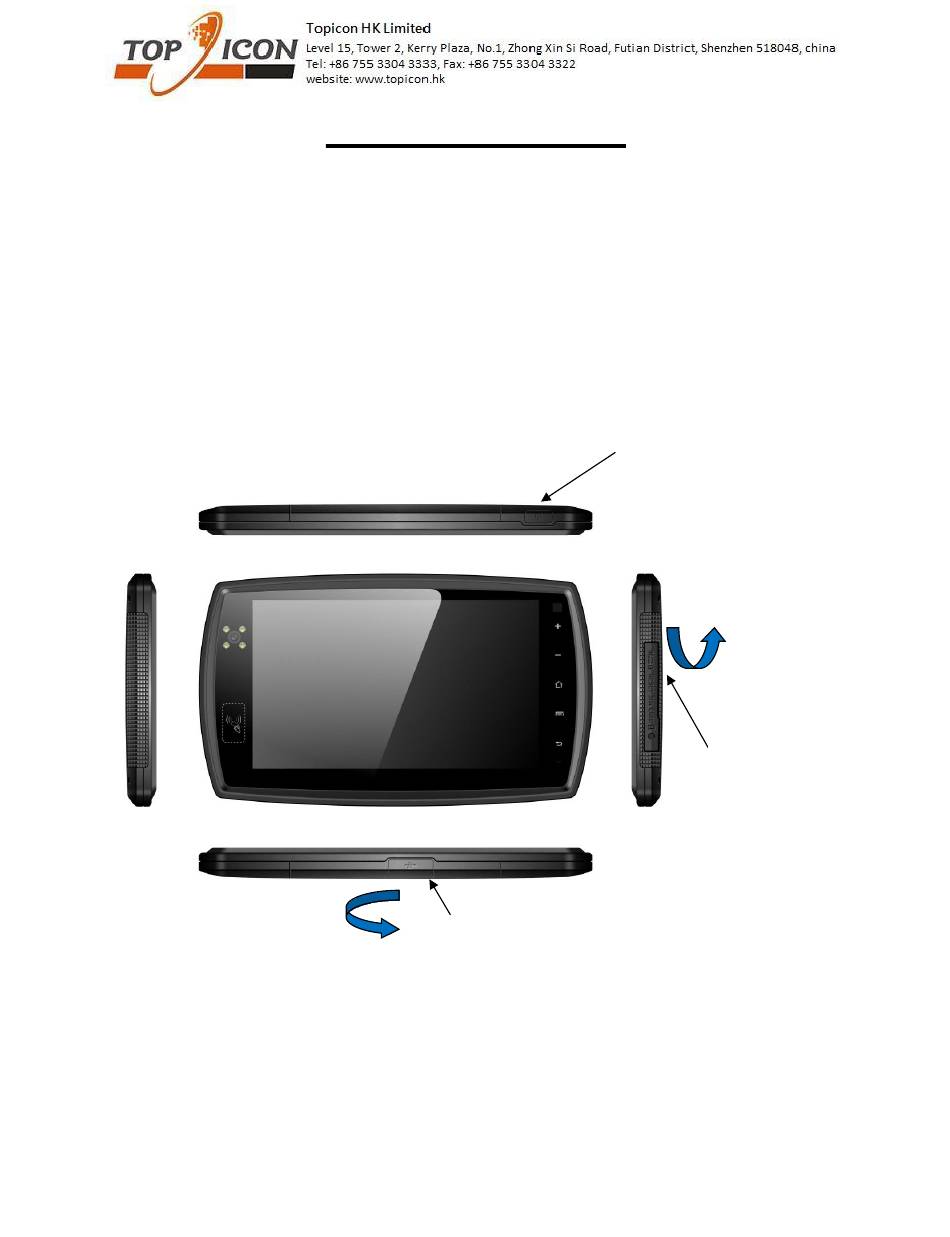

Quick Start Guide
Micro usb for connecting to PC or charging
Pls cover it well in order to ensure the waterproof
performance
On/off button
Pls move upward to open the
cover, you will hear "click"
sound, it is normal
SD card slot, SIM card slot and
reset button
Screw hole is available if you
want to lock the cover
Pls cover it well in order to
ensure the waterproof
performance
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MDT740 and is the answer not in the manual?

Questions and answers

Summary of Contents for Topicon MDT740

  • Page 1 Quick Start Guide Product introduction MDT740 has optional features (wifi, BT, GPS, 2G/3G/4G,LoRa, back camera, front camera, RFID, lightsensor, gyroscope, accelerometer) Highlights: 4G – pls insert the SIM card when the device if complete off front camera – there are 6 IR LED around the camera. if you enable the flash function in front camera, then you will see the IR LED is on.
  • Page 2 Direction of SIM card and SD card All rights reserved. No part of this work may be reproduced or copied in any form or by any means (graphic, electronic, or mechanical, including photocopying, recording, recording taping, or information and retrieval systems) without the written permission of the copyright owner...
  • Page 3 Interface 1. There is TTL serial port (Tx/RX) or OTG from 10 pin usb connector 10pin usb connector pls see the above schematics of our USB connector in our PND, it is 10 pin connector. Pin 4 and 6 can be used for USB or TTL serial interface (Rx/Tx) and Pin 8 is ID pin which is used to distinguish for USB or serial interface.
  • Page 4 2. There are Rs232 interface and OTG from cradle. Highlights: OTG port from device (10pin usb connector) and cradle are sharing same pins. Only 1 OTG interface can be used. Usb connector for OTG or charging This cable can be customized when you placed order For sample, it will be 12 pins connector, pls see below or pins assignment...
  • Page 5 Removing the cradle cable (12pin molex connector) if you don’t want to use it. 1. you can find the rubber plug in our blackbox (see below picture). 2. open the cradle casing by screw driver 3. remove the 12pin molex cable from connector 4.

  • Page 6: Device Installation

    Device installation There are few options 1. Directly attach mount to device (no cradle in this case) 2 screw hole at the back Pls use M4 15mm screw if the mount thickness is 9mm. Pls note that the screw hole depth is only 6mm. Long screw may damge the PCB inside 2.
  • Page 7 Mount options: There are many car mount options. You can use the 2 screw hole (black colour) or 4 screw hole (yellow colour) to attach the different mount system. The 4 screw hole depth is 5mm long only, pls prepare correct screw.
  • Page 8 Example 2 (RAM-B-138-224-1U) Example 3 (RAM-B-138U-A) Example 4 (RAP-B-138-AU) All rights reserved. No part of this work may be reproduced or copied in any form or by any means (graphic, electronic, or mechanical, including photocopying, recording, recording taping, or information and retrieval systems) without the written permission of the copyright owner...
  • Page 9 Option 3: You can also choose mount from HR (http://www.hr-autocomfort.de/) There are 4 hole plate which you can lock in the cradle with 4 screw hole. then, you can choose the mount from HR. Example 1 (1719/0) Option 4: Mounting solution from truck expert (ARAT) http://www.arat-de.eu/index.php?ber_id=10&dia_id=1&lang=en All rights reserved.
  • Page 10 Option 5: There are other mount which can support this 2 screw hole and 4 screw hole at the back can be used. For my understanding, there are other mount company also use this 2 or 4 screw hole as standard. Pls let know if you need other mounting system or solution.
  • Page 11 New silicon sleeve It can have more protection for the device. 1. It also support stylus. There are optional clip which you can install at the back of the sleeve. 2. There is new cradle (dock) to match the device with sleeve. This cradle can be used for the device with or without the sleeve.

  • Page 12: Software Support

    This intent is sticky, ie the application will be immediately notified of the current status at registration, even if no transition occurred. Here is a code sniplet : private static final String ACTION_IGNITION = "hk.topicon.intent.action.IGNITION"; private BroadcastReceiver mIgnitionReceiver = new BroadcastReceiver() { public void onReceive(Context context, Intent intent) { String action = intent.getAction();...
  • Page 13 Video input cradle We made a new video input cradle 1. For rear view camera input, we have complete demo kit (part number: CRD741R) Highlights for P2 connector: 1. It is same as before. We just add video trigger (pin 12), this video trigger can support only 9-32V 2.
  • Page 14 Scanner You can using scanner to our device 1. Plug the special USB cable with marked “scanner” to the mini_USB port on the back of the scanner.. 2. Plug the other end of the special USB cable with marked “MDT” to the Device or the Cradle All rights reserved.
  • Page 15 3. Turn on the scanner 4. Inserted a USB flash drive or a memory card in the scanner. 5. When scanning is finished, the image is saved on the memory card or USB flash drive. Will show in the ES File Explorer in the Device 6.
  • Page 16 TOPICON HK LIMITED E-mail: keller.sin@topicon.hk hereby declares that this [Name: GPS, Model: MDT740, MDT741, MDT742, MDT752, MDT714D, OBC740, M710A, M710AG, M710AB, M710AKB, M740B, MDT840, MDT841, MDT814D] is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
  • Page 17 Bluetooth Version: Bluetooth V4.0 Max.RF Output Power: 5.32dBm (EIRP) Frequency Range: 2412-2472MHz for 802.11b/g/n(HT20); 2422-2462MHz for 802.11n(HT40) Max.RF Output Power: 15.72dBm (EIRP) Lora Frequency Range: 868.00MHz-868.6 MHz 869.4MHz-869.650 MHz RF Output Power: 12.11dBm(ERP) NFC Frequency Range: 13.56MHz Radiated H-Field: MDT740: 16.90dBuA/m(@10m) MDT840: 16.40dBuA/m(@10m)
  • Page 20 The SAR limit of USA (FCC) is 1.6 W/kg averaged. Device types: portable device (FCC ID: 2AHAF-MDT740) has also been tested against this SAR limit. SAR information on this and other pad can be viewed on‐line at http://www.fcc.gov/oet/ea/fccid/. Please use the device FCC ID number for search.
