Ricoma KX-1515LB Operator's Manual / Parts Book

Ricoma KX-1515LB Operator's Manual / Parts Book

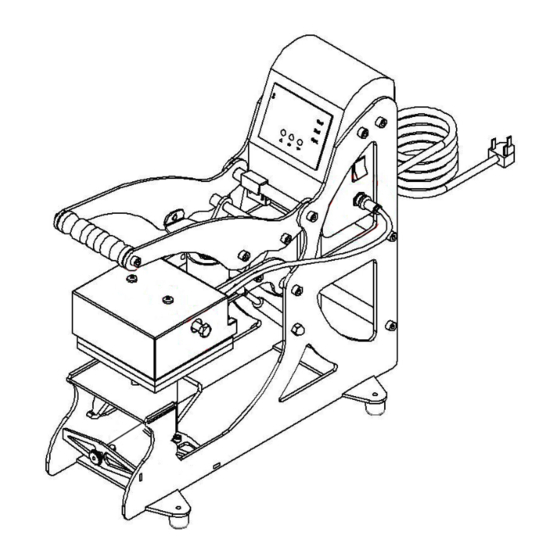

Auto open tag & label heat press

Advertisement

Auto Open Tag & Label Heat Press
CONTENTS
I.
Assembly Drawing ------------------------------------------------------------------------------2
II.
Technical Parameters --------------------------------------------------------------------------2
III. Operation Process ----------------------------------------------------------------------------3-5
IV. Maintenance ---------------------------------------------------------------------------------------6
V.
Trouble Shooting For Transfer Print Quality--------------------------------------------6
VI. Circuit Diagram -----------------------------------------------------------------------------------7
VII. Explosion View -----------------------------------------------------------------------------------8
Manual and Parts Book
Model No.: KX-1515LB
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KX-1515LB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ricoma KX-1515LB

  • Page 1 Auto Open Tag & Label Heat Press Manual and Parts Book Model No.: KX-1515LB CONTENTS Assembly Drawing ------------------------------------------------------------------------------2 Technical Parameters --------------------------------------------------------------------------2 III. Operation Process ----------------------------------------------------------------------------3-5 IV. Maintenance ---------------------------------------------------------------------------------------6 Trouble Shooting For Transfer Print Quality--------------------------------------------6 VI. Circuit Diagram -----------------------------------------------------------------------------------7 VII. Explosion View -----------------------------------------------------------------------------------8...
  • Page 2 Power Switch Heater Socket Connecting Screws Electromagnet Suck Plate Limit Switch II. KX-1515LBTechnical Parameters 1 Model No.: KX-1515LB 2 Machine Size: 526*500*250mm 3 Printable Articles Max Size: 80*130*10mm 4 Voltage: 220v/1Phase/120v/1Phase 5 Power: 0.6kw 6 Recommend Setting: 30~280s; 180~200° C...
  • Page 3 III. Operation Process 1. Set temperature required Turn on power switch, temperature Press button, the temp light Press button, the light is light is ON. The digital display shows on (C denotes Celsius). Press is on. Select with arrows the arrows “...
  • Page 4 Ink-Jet Transfer Paper (fabric) 14-18 seconds Laser Copier/Printer Transfer Paper (fabric) 18-25 seconds Sublimation Transfers (onto Fabrics) 25-30 seconds Sublimation Transfers (onto FR-Plastic/Woods) 60-70 seconds 5. Recommendations: 1) Ceramic tile transfer: (Mugs & Plates transfer is similar) Set temperature: 180 . Set time: 15 seconds 2) T-shirt transfer: Set temperature: 180 .
  • Page 5 Plate Heat Element Fitted with locking screws, and insert the socket. - 5 -...
  • Page 6 IV. Maintenance 1. No action after turn on the machine 1). Check the plug whether it connects well or whether it is broken. 2). Check the power switch or digital controller whether it is broken. 3). Check the fuse whether it has been burnt out. 4).
  • Page 7 Circuit Diagram :Power Swith C:Magnet :Limit Switch T:Transformer FU:Fuse R1:Relay EH1 EH2:Heating Pipe MD:Magnet Driver SJ:Digital Controller - 7 -...
  • Page 8 VII. Explosion View Davit Arm Part Name Machine Frame Electromagnet Electric Case Flat Heat Platen Cover Power Cord Fuse Holder Flat Heat Platen Heating Plate Socket Electrical Parts Bracket Power Switch Limit Switch Pressure Adjust Gear Connecting Piece Gas Spring Electromagnet Suck Plate - 8 -...
