Hunza HP/BS Installation Instructions

High Power Spot Light with Bracket / High Power Spot Light with Weighted Base
INSTALLATION INSTRUCTIONS
IMPORTANT! TO MEET HUNZA'S BLACK LABEL WARRANTY,* PLEASE READ BEFORE INSTALLING THE FIXTURE.
PLEASE NOTE: THESE INSTRUCTIONS MUST NOT CONTRAVENE YOUR LOCAL ELECTRICAL AUTHORITY REGULATIONS,
WITH WHICH ALL INSTRUCTIONS HEREIN MUST COMPLY. PLEASE KEEP INSTRUCTIONS FOR FUTURE REFERENCE.
WARNING: DO NOT connect the secondary side (output) of a live driver to
the fixture, this will cause a spike in voltage that can damage the LED. When
connecting or disconnecting the fitting always insure the 120/240V power supply
is disconnected.
WARNING: When using a photocell and/or timer we recommend using devices
with relay outputs as opposed to electronic. The high frequency of electronic
devices can lead to failure of the LED driver.
WARNING: If the mounting surface is to be "acid washed" the fixtures must be
removed prior to the process to avoid damage to the fixture and its fittings.

Installation Guide

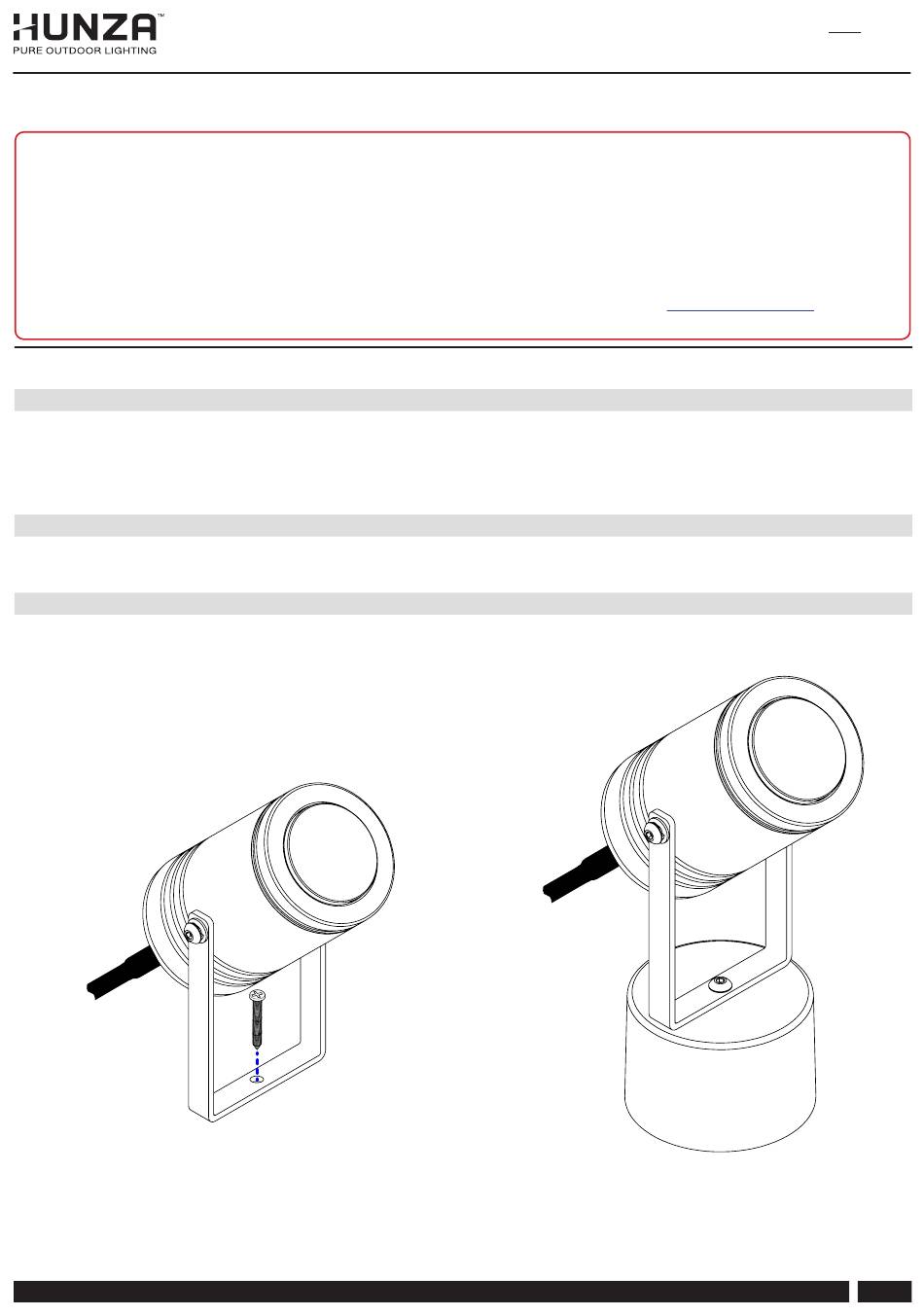

Step 1: Mount the Luminaire

• Select an appropriate position and surface to install the luminaire.
• FOR THE SPOT LIGHT WITH BRACKET, drill a hole where desired and then fix the light with a wall plug and screw in the bottom of the bracket. Ensure the luminaire is
mounted to a suitable substrate.
• THE WEIGHTED BASE SPOT LIGHT has been designed to be placed where needed without any drilling necessary.
IMPORTANT: Please DO NOT SUBMERSE in a pond or pool.

Step 2: Make Wire Connections

• Make waterproof connections, please refer to wiring guide.
• IMPORTANT: For 110/240V (Retro) connections the fixture must be grounded.

Step 3: Install Glare Guard/Snoot (Optional)

• Carefully remove lens ring making sure not to drop the glass lens and cause damage to it, keeping gasket in place.
• Hold the body of luminaire tightly and screw Glare Guard/Snoot ring onto luminaire.
• Still holding the body of the luminaire tightly rotate Glare Guard/Snoot to desired position.
©Copyright 2023. This document contains proprietary information of Hunza™. Its receipt or possession does not convey any rights to reproduce or disclose its content.
HP/BS HP/BS/W Aug 2023 V2 Hunza-High-Power-Bracket-Spot-Weighted-Base-Spot_Installation-Instructions-USA
WATERPROOFING FIXTURES: Ensure the fixture is fixed in place and ensure a
waterproof seal is made between the fixture and surface. Ensure that installation
on exteriors meets local authority regulations.
WATERPROOFING CONNECTIONS:
luminaire, input cables and/or dimming cable. A non waterproof connection will
allow water to ingress into the power supply and/or fixture head which can lead
to failure.
*T&C's apply. See website for details:
PURE LED
Make sure to waterproof connections to the
hunzalighting.com/warranty
HUNZA
TM
USA
