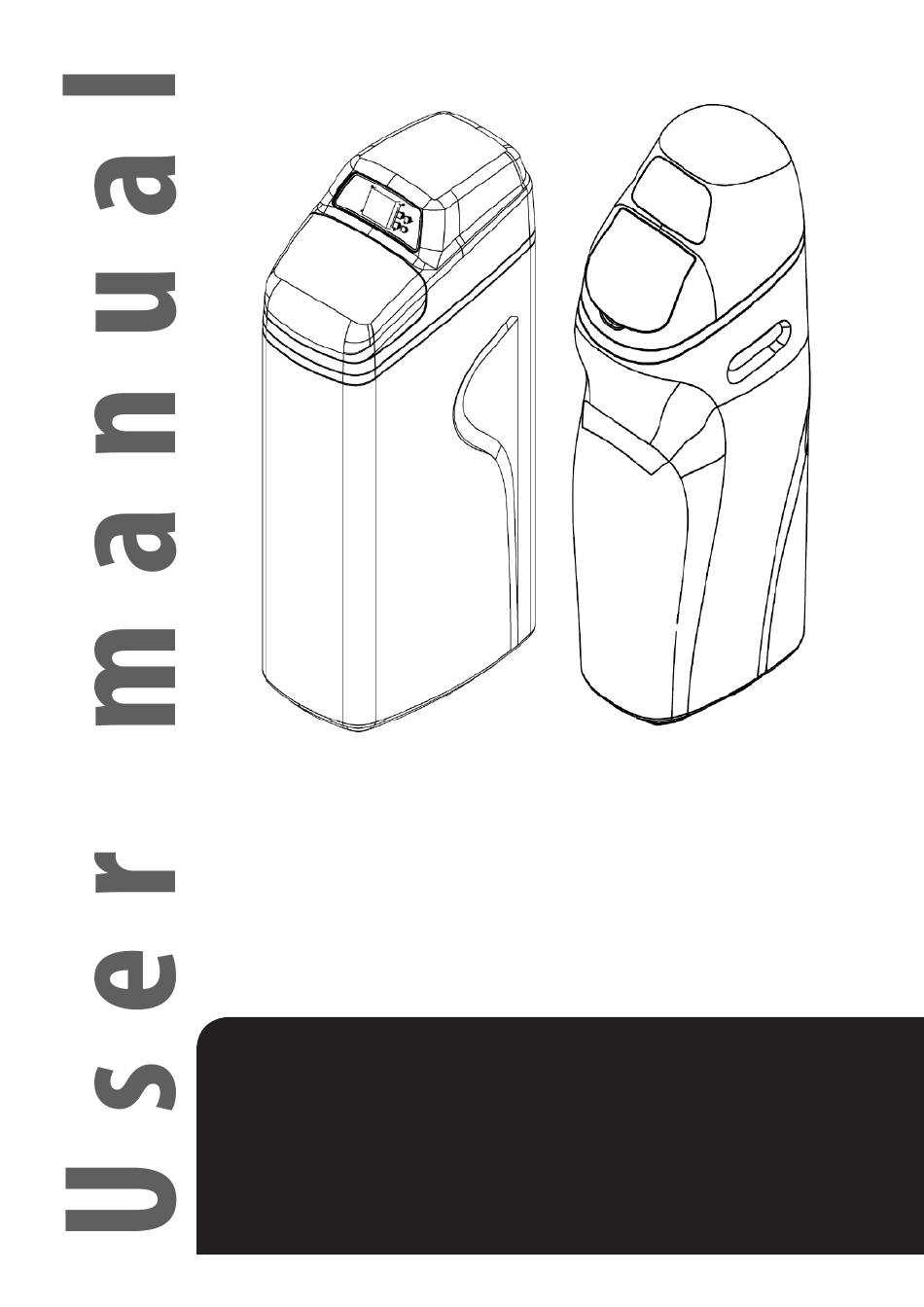

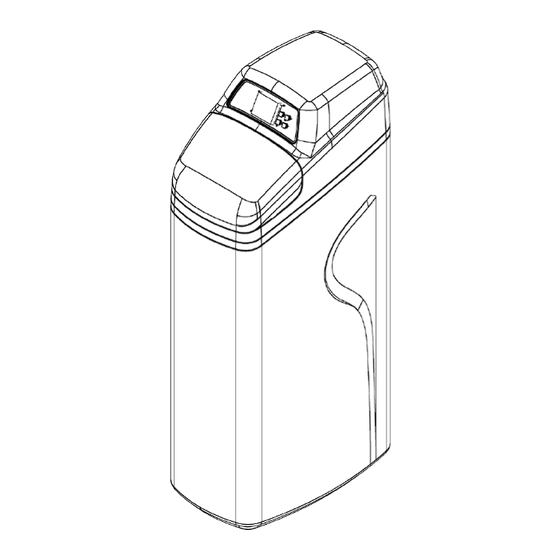

RainWater and SmartWaterSoftener
Plug&Play
Household, cabinet water softener
Number of the equipment's drinking water safety (NNK) certificate:
33722-9/2021/KTEF
1. Be sure to read this user manual before installation and use..
2. Be careful not to pinch the O-rings, use food-grade silicone grease to wet the
seals.
3. The equipment is not suitable for treating microbiologically unsafe water or water
of unknown origin and quality. In such cases, disinfection is required before or after
the equipment.
Advertisement
Table of Contents
Related Manuals for Euro-Clear RainWater 12 Plug&Play
Summary of Contents for Euro-Clear RainWater 12 Plug&Play
- Page 1 RainWater and SmartWaterSoftener Plug&Play Household, cabinet water softener Number of the equipment's drinking water safety (NNK) certificate: 33722-9/2021/KTEF 1. Be sure to read this user manual before installation and use.. 2. Be careful not to pinch the O-rings, use food-grade silicone grease to wet the seals.
- Page 2 READ THIS FIRST FUNDAMENTALS OF WATER TREATMENT DETAILED DESCRIPTION OF THE WATER SOFTENER, SPECIFICATIONS DIMENSIONS OF THE WATER SOFTENING EQUIPMENT UNPACKING OF THE EQUIPMENT, ACCESSORIES, RECOMMENDED ACCESSORIES PREPARATION BEFORE INSTALLATION, INSTALLATION ASSEMBLY BLOCK OPERATION PROGRAMMING HELP COMMISSIONING MAINTENANCE INSTRUCTIONS, SERVICING QUALITY CERTIFICATE, WARRANTY CONDITIONS...
- Page 3 Euro-Clear Kft reserves the right to change the technical content of the equipment without prior notice. If the equipment has been relocated or if the parameters of the incoming water have changed by more than 15% (water hardness, pressure...) then it is necessary to put back...
- Page 4 FUNDAMENTALS OF WATER TREATMENT WHAT IS HARD WATER AND HOW TO SOFTEN IT? Fresh water everywhere originally comes from falling 3. ORGANIC, BOUND IRON—This type of iron is bound precipitation (snow, rain, hail). Precipitation falling on the to the organic components of water. The ion exchange earth's surface evaporates under the influence of the sun and process alone cannot break these bonds, so a water rises to form clouds, then almost completely clean and soft...
- Page 5 WATER SOFTENER EQUIPMENT SPECIFICATIONS RAINWATER AND SMARTWATERSOFTENER P&P SERIES...
-
Page 6: Description Of Functions
CONTROL VALVE DESCRIPTION ®ECOPRO+ The ECOPRO water softener can also be equipped with the safety salt valve, BIO disinfection function, the software SafeHOME function, as well as an optional floor waterer as standard accessories. The water softener works with a dry salt bed, so there is no water loss between the two regenerations. - Page 7 The capacity and performance of the equipment and the quality of the incoming water may differ. After changing the factory settings for salt and salt dosage, it may be necessary to replace the injectors to achieve the desired capacity. The value of iron in the water must not be higher than 0.2 ppm.
- Page 8 DIMENSIONS OF WATER SOFTENING EQUIPMENT RainWater RainWater 18, 25, 30 SmartWaterSoftener SmartWaterSoftener 18, 25, 30...
-
Page 9: Recommended Accessories
UNPACKING AND INSPECTING THE WATER SOFTENER The equipment can only be delivered in a set up state. Inspect the water softener thoroughly to make sure there is no shipping damage. If you find damage to the equipment or its packaging, immediately notify the shipping company and ask for a damage inspection and damage report. - Page 10 SETTING THE LANGUAGE OF THE SOFTENER The first step of changing the language of the softener is depowering the equipment. After reconnecting it to the power supply, please wait until the screen shows the control valve type. During this time, please press and hold down the Force reg / Back button and Down button until the service menu shows up where you can see the "Set language"...
-
Page 11: Tools Required For Installation
- commissioning of the equipment can be carried out by Euro-Clear Kft.'s commissioning or service partner. Commissioning the equipment only means adjusting the automatic control valve according to local conditions, not installation. - Page 12 3/4 " BY-PASS VALVE IN SERVE (Fully softened water) In the extended position, water flows through the softener This means that complete softening is applied and softened water is supplied PASS WAY (Raw water flows through) In the pushed position, the softener is bypassed This means that the water line skips the water softener and raw water is used for water supply.
- Page 13 1" BY-PASS VALVE Inlet Outlet Watermeter joint When the rotating arm is parallel to the stumps, the water flows through the softener, the softening is complete By turning the rotary lever a full 90 degrees, the softener is bypassed by the raw water, the softener is turned off...
- Page 14 Input and output stubs may vary. It is possible in a horizontal or vertical version.
- Page 15 IMPORTANT Snap the water meter sensor connector into place for proper operation. The sensor is always on the outlet side! Always make sure to place the water meter into the side where you connected the water meter sensor! ** The By-pass valve may be different by type of control valve**...
- Page 16 Always make sure to place the water meter into the side where you connected the water meter sensor! ** The By-pass valve may be different by type of control valve**...
- Page 17 MENU To unlock the keyboard, press and hold the Up and Down buttons simultaneously for 5 seconds. The menu is accessed by pressing the button once. By scrolling with the down button, you can find the following menu items. OPERATION IN CASE OF POWER OUTAGE In the event of a power failure, the device remembers the date and time for 48 hours.
-
Page 18: Maintenance Instruction
MAINTENANCE INSTRUCTION CHECKING SALT LEVEL Check the salt level monthly. Remove the top of the cabinet and make sure the salt level is above the brine. COMMENT YOU WILL NOT SEE THE WATER IN THE CABINET / SALT TANK. REFILLING SALT Only use salt suitable for water softening that can be placed in the equipment (e.g. - Page 19 SERVICING THE WATER SOFTENING EQUIPMENT The water softening equipment sold by Euro-Clear Kft. can only be serviced by qualified mechanics. If you experience problems with the operation of your water softener or want to report a fault or maintenance, please contact our company, your reseller partner or the store where you purchased the product.
-
Page 20: Quality Certificate
QUALITY CERTIFICATE 1. Quality certificate issuer: 2. Producer: Euro-Clear Kft. Euro-Clear Kft. 3. The specific name of the product (purpose): Automatic water softener. Type: ..................4. Quantity: 1 pc 5. Product identification: 6. Transport and storage regulations: a) Control valve serial number: ............ - Page 21 24 months from the date of commissioning, but a maximum of 30 months from the date of issue of the quality certificate. The guarantee and warranty are only valid in case of installation by Euro-Clear Kft. or its representative.
-
Page 22: Warranty Card
Warranty Card 1, Check the mechanical and electrical connections on the device as follows: - Is a mechanical protective filter with a fineness of ≤50 µm installed in front of the water softener? - If not, the customer must be informed that the pre-filter is a condition of the warranty! - Incoming water pressure value: _________ bar - Are the water flow directions correct? (on assembly block / bypass valve, device) - Has the channel been connected in the correct way, in accordance with the regulations?
