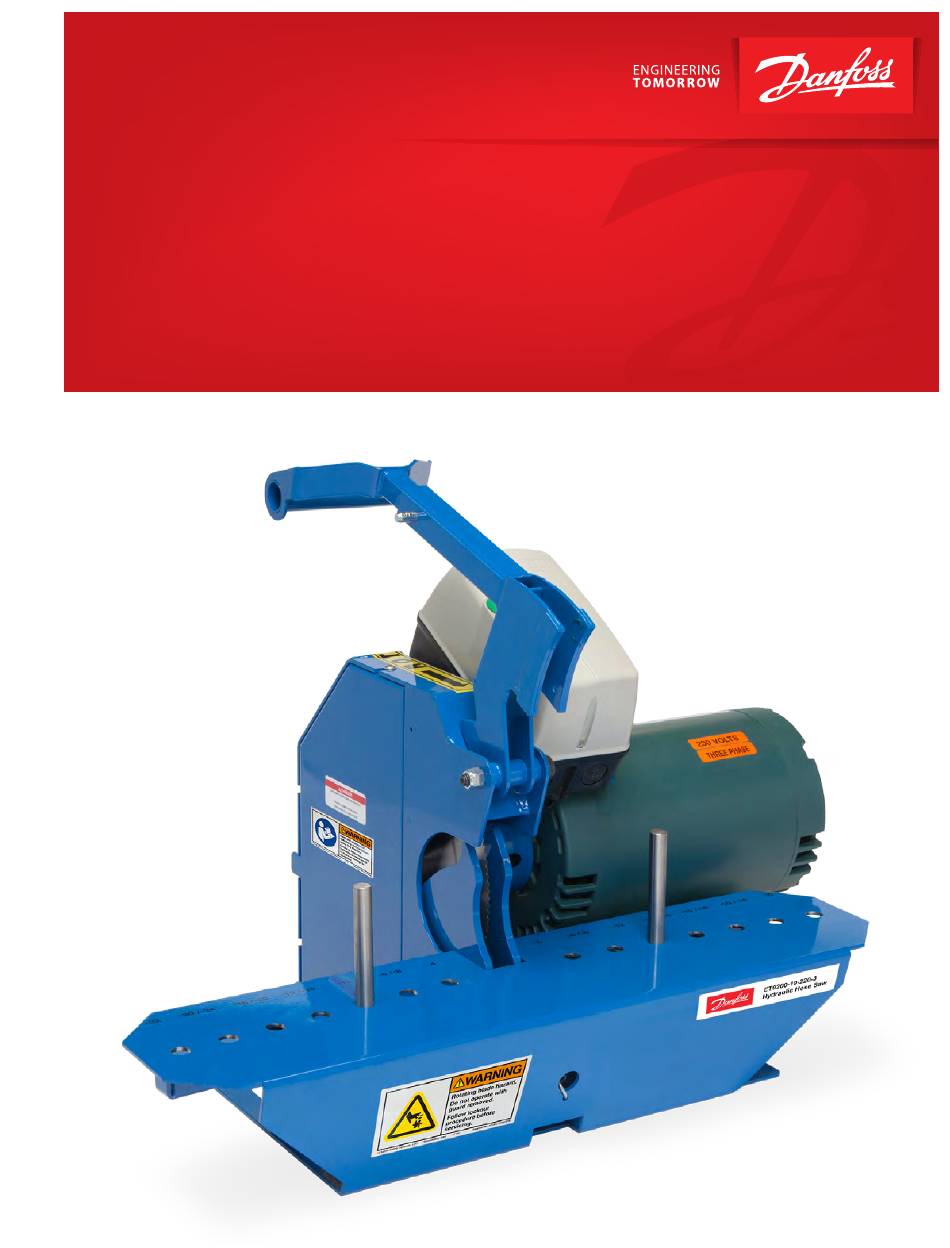

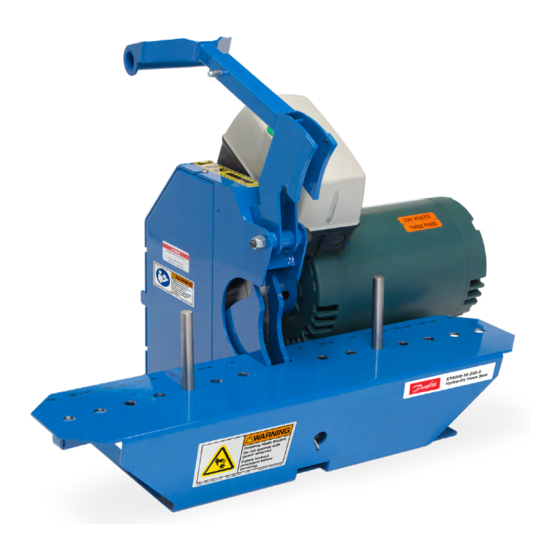

- Page 1 Operators’ Manual Danfoss ET9200 Hydraulic Hose Saw...
-
Page 2: Table Of Contents
Proper hand protection should be worn at all times when working with sharp cutting tools. SAFETY EYE WEAR Proper eye protection should be worn at all times when working with high RPM cutting blades. 2 | © Danfoss ET9200 Hydraulic Hose Saw Operators’ Manual | 2023.03. BC444154783035en-000101... -
Page 3: Introduction
Introduction Danfoss hydraulic hose cutting system is break-through technology using a toothed blade, cutting with the backs of each tooth, so the blade does not take a kerf. The saw bends the hose into the blade spreading the cut edges to avoid burning and smoking. -
Page 4: Operation
A coasting blade is still dangerous! Examine the hose. Look at the squareness and how clean the cut is. A good cut goes a long way toward making a strong hose assembly. 4 | © Danfoss ET9200 Hydraulic Hose Saw Operators’ Manual | 2023.03. BC444154783035en-000101... -
Page 5: Changing The Blade
Placed clamping flange through drive pin and bolt blade onto the shaft. Tighten bolt to 20-25 foot/lbs. Do not over- tighten. Then remove 1⁄4 rod/pin which locks shaft. Replace blade cover and tighten hex bolts. BC444154783035en-000101 © Danfoss ET9200 Hydraulic Hose Saw Operators’ Manual | 2023.03. | 5... -
Page 6: Vacuum Port
Lubricate the pivot points of the blade guard and pusher with oil on a regular basis (once a month). Whenever the blade cover is removed, use that opportunity to grease the pivot points. 6 | © Danfoss ET9200 Hydraulic Hose Saw Operators’ Manual | 2023.03. BC444154783035en-000101... -
Page 7: Benefits
10” OD x .125 THK X 40 mm arbor 2” ID x 6 Wire Hydraulic Hose ET9200C-10-SL Slotted 10” OD x .125 THK X 40 mm arbor 2” ID x 6 Wire Hydraulic Hose BC444154783035en-000101 © Danfoss ET9200 Hydraulic Hose Saw Operators’ Manual | 2023.03. | 7... - Page 8 Phone: +86 21 3418 5200w Danfoss can accept no responsibility for possible errors in catalogs, brochures, and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
