Summary of Contents for Jabbla Vibe 12+

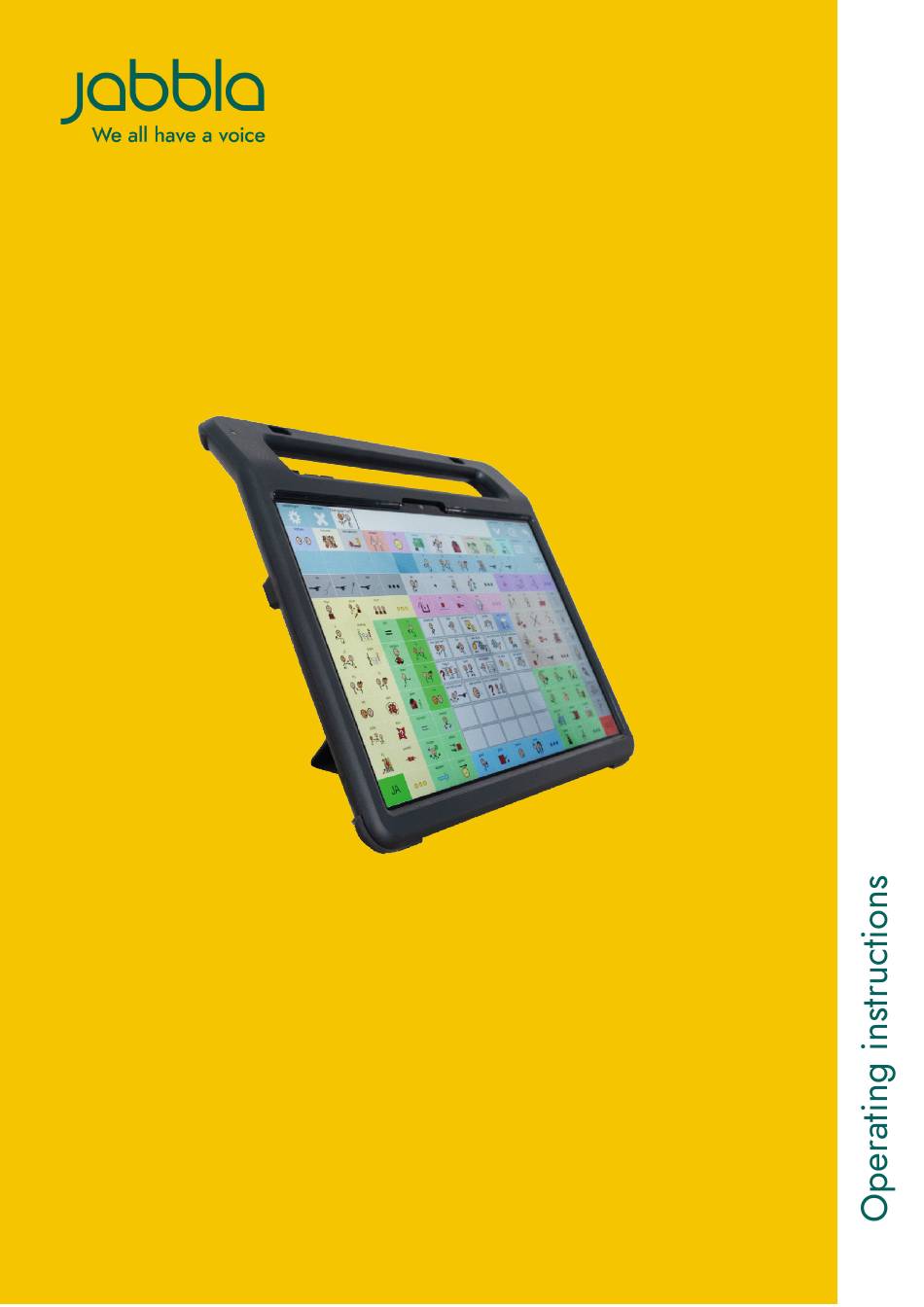

- Page 1 Vibe 12...
- Page 2 Jabbla. This document is a translation of the original Dutch user manual.
-
Page 3: Table Of Contents
Vibe 12+ Content Introduction 1 Introduction..........................3 2 Intended use..........................3 3 Prohibited use.......................... 3 4 Service life..........................3 5 The identification plate of the device..................3 6 Technical data...........................4 Description and operation 1 Introducing the Vibe 12 ......................6 2 Options............................ 8 3 Operation.......................... - Page 4 Vibe 12+ Windows 11 settings for sleep mode..........................19 3 Disabling sleep mode......................19 4 Setting the button on the back of the device................19 5 Setting the language of the tool....................20 6 Setting the switches........................ 20 7 Wake from sleep mode via touch settings.................20 8 Switching the loudspeakers on or off..................
-
Page 5: A Introduction
The device may not be used for purposes other than those specified in its intended use. No modifications may be made to the device without consulting with and gaining permission from Jabbla. Making modifications to the device can have consequences for safety, the warranty and compliance with regulations. -
Page 6: Technical Data
Vibe 12+ Figure 1: Position of the identi cation plate Figure 2: Identi cation plate Technical data Specification Explanation ® Processor Intel Core i5 Operating system Windows 11 Pro Hard drive 256 GB SSD Internal memory 8 GB Touchscreen • 13 inch capacitive touchscreen •... - Page 7 Vibe 12+ Specification Explanation • 1 x USB-2.0 A (200 mA) • 1 x USB-C (USB 4/Thunderbolt 4) Battery Standard lithium-polymer battery 48 W Battery capacity 1 day with normal use and standard settings Battery capacity varies considerably according to the settings, usage and other factors.
-
Page 8: B Description And Operation

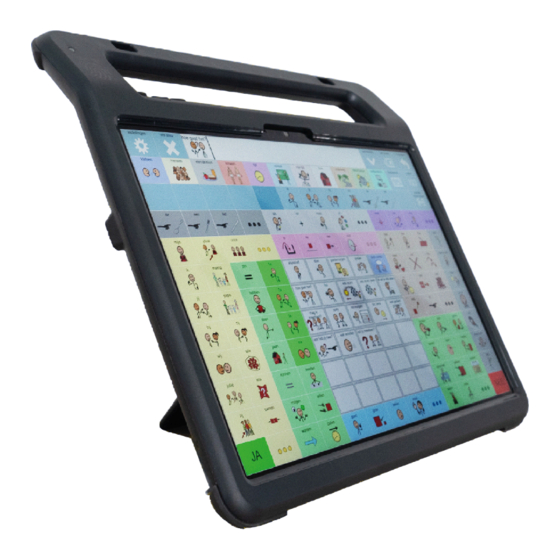

Vibe 12+ Description and operation Introducing the Vibe 12 Figure 3: Front view Identification Explanation Infrared receiver With the infrared receiver you can teach the device infrared codes. Wake-up sensor You wake the device from sleep mode by touching where this sensor is located with your thumb or finger. - Page 9 Vibe 12+ Identification Explanation On/off button This allows you to switch the device on and put it into sleep mode. Figure 4: Rear view Identification Explanation Supply You can charge the device using this connection. Switch 1 connection This input is for connecting switch 1. Only connect a non-powered, voltage-free switch directly to the device! Switch 2 connection...
-
Page 10: Options
Vibe 12+ Identification Explanation USB-A port (2.0) You can connect peripherals via the USB-A port (200 mA max). USB-C port (USB 4/Thunderbolt 4) You can connect peripherals via the USB-C port. Infrared transmitter With the infrared transmitter, you can transmit infrared signals to other devices, such as: sound systems and televisions. -
Page 11: C Safety
Vibe 12+ Safety Safety CAUTION When mounting the device to a wheelchair, ensure that the device is securely fastened and additionally locked so that it cannot accidentally fall off with a shock or impact. ENVIRONMENT The device uses a lithium-polymer battery. Ensure that the device is safely disposed of. Observe the waste regulations that apply in your region. -
Page 12: D Getting Started
Vibe 12+ Getting started What's in the box? The device is supplied with the following parts: • Power adapter with plug and cable • Keyboard (not supplied in some countries) • Mouse • USB stick • Carry case • Strap •... -
Page 13: E Control
Vibe 12+ Control Starting up the device Figure 6: The on/o button Press and hold the on/off button (9) for several seconds. If the device was in sleep mode, it can be used immediately. If the device is being opened from shutdown mode, it is ready for use when Mind Express has started up fully. -
Page 14: Viewing The Power Status
Vibe 12+ Viewing the power status Checking the battery status is a standard Windows 11 procedure. Figure 8: The Windows 11 taskbar Select the battery icon on the right of the Windows 11 taskbar. The device's remaining battery charge is displayed. NOTE If the battery icon on the taskbar is hidden, first select the "Show hidden icons"... -
Page 15: Joystick Control
Vibe 12+ NOTE To control the standard Windows functions of the device and Mind Express you can also use a capacitative stylus, a physical keyboard or an on-screen keyboard. You can also use a joystick to control Mind Express. Figure 9: USB-A port and USB-C port For more information on activating and setting up the mouse control in Mind Express, see Mind Express webhelp. -
Page 16: Keyboard Control
Vibe 12+ Figure 11: Switches NOTE To exit scan mode, press and hold the ESC button (19) for 1.5 sec. For more information on activating and setting up the scan control in Mind Express, see Mind Express webhelp. Keyboard control The standard Windows functions of the device and Mind Express can be controlled with a physical keyboard. -
Page 17: Environment Control
Vibe 12+ Open the On-screen keyboard app. From the title bar, drag the on-screen keyboard to the desired position. For more information about the on-screen keyboard, refer to the Windows Help function. Environment control Figure 13: The infrared transmitter and infrared receiver The device is equipped with an infrared transmitter (17) and an infrared receiver (1). -
Page 18: Waking The Device From Sleep Mode
Vibe 12+ Figure 14: The on/o button Do one of the following: • > Sleep. Choose > • Briefly press the on/off button (9). The touchscreen switches off. Waking the device from sleep mode If the touchscreen of the device is switched off, the device is in sleep mode. Figure 15: On/o button and wake-up sensor Do one of the following to wake the device from sleep mode: •... -
Page 19: Resetting The Device Completely
Vibe 12+ Figure 16: The reset button Press the tip of a ballpoint pen into the reset opening (18). Restart Mind Express. Resetting the device completely NOTE If only the partner display and/or the speakers are not responding, you can reset these separately (see Resetting the rear partner display and speakers on page 16) -
Page 20: F Settings
Vibe 12+ Settings Setting the volume Figure 18: Volume buttons As well as the controls in Mind Express and Windows 11, you can also set the volume using the volume controls (6) (7). NOTE If the volume symbol in the taskbar of Windows 11 is not visible, select first to display the hidden symbols. -
Page 21: Windows 11 Settings Via The Windows 11 Start Button
Vibe 12+ If the symbol in the taskbar is not visible, select on the taskbar first to display the hidden symbols. For example, the Bluetooth symbol is not visible on the taskbar. Click on and the hidden symbols appear. You can now select the Bluetooth icon Figure 21: Hidden symbols •... -
Page 22: Setting The Language Of The Tool
Vibe 12+ Setting the language of the tool Do one of the following: • Right-click in the system tray in the Windows taskbar. • Tap on in the system tray in the Windows taskbar and continue to press until the shortcut menu appears. Select Choose language in the quick menu. -
Page 23: G Maintenance And Troubleshooting
Vibe 12+ Maintenance and troubleshooting Maintenance Repairs In the event of damage to the device, please contact the distributor of the device. Do not attempt to carry out any repairs yourself. This could damage the device and invalidate your warranty. Cleaning the device Clean the device regularly so you do not give bacteria the chance to spread. -
Page 24: Troubleshooting
Vibe 12+ The Settings tab appears. Choose the License tab. The license information is displayed. Troubleshooting Problem Solution The touchscreen is slow or is not working properly. • Restart the device to correct any software errors. • Clean the touchscreen. See Cleaning the device page 21. -
Page 25: Testing The Wake-Up Sensor
Vibe 12+ Testing the wake-up sensor To check whether the wake-up sensor is working properly, you can test it. Double-click in the system tray in the Windows taskbar. Touch where the wake-up sensor is located. If operating correctly, the light in the circle will be green. Click OK. -
Page 26: H Decommissioning And Disposal
Vibe 12+ Decommissioning and disposal Decommissioning Shut down the device. Remove the device from the mounting (if applicable). Take the device out of the carry case (if applicable). Remove the charger. Disposal Do not dispose of the device with the household waste! Use specific collection systems to reduce the ecological impact. -
Page 27: Index
Vibe 12+ Index Device code show Dimensions Accessories Disable Accessory device Action Display link to switch Disposal Audio Enable Battery device charge Environment control disposal Escape status button technical data Battery status view in Windows 11 Bluetooth set in Windows 11 Button First use escape... - Page 28 Vibe 12+ Repair Reset button Keep complete device Keyboard partner display on-screen rear speakers physical Right-hand button click Label Safety License display information Save Loudspeakers Scanning switch on or off control Screen cleaning control 8, figure Maintenance keyboard cleaning technical data repair Sending text messages Malfunction...
- Page 29 Vibe 12+ Technical data Telephoning Tool set language Touch settings Touchscreen cleaning control technical data Tray stand technical data USB-A port USB-C port USB stick device prohibited Version show Volume button decrease increase set inWindows 11 set with volume button switch off Wake-up sensor settings...
