Minox-i Oxygen Transmitter
User Manual
PST-UM-2010-EN-2.1
PST-UM-2010-EN-2.1 08/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PST-UM-2010-EN-2.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PST PST-UM-2010-EN-2.1

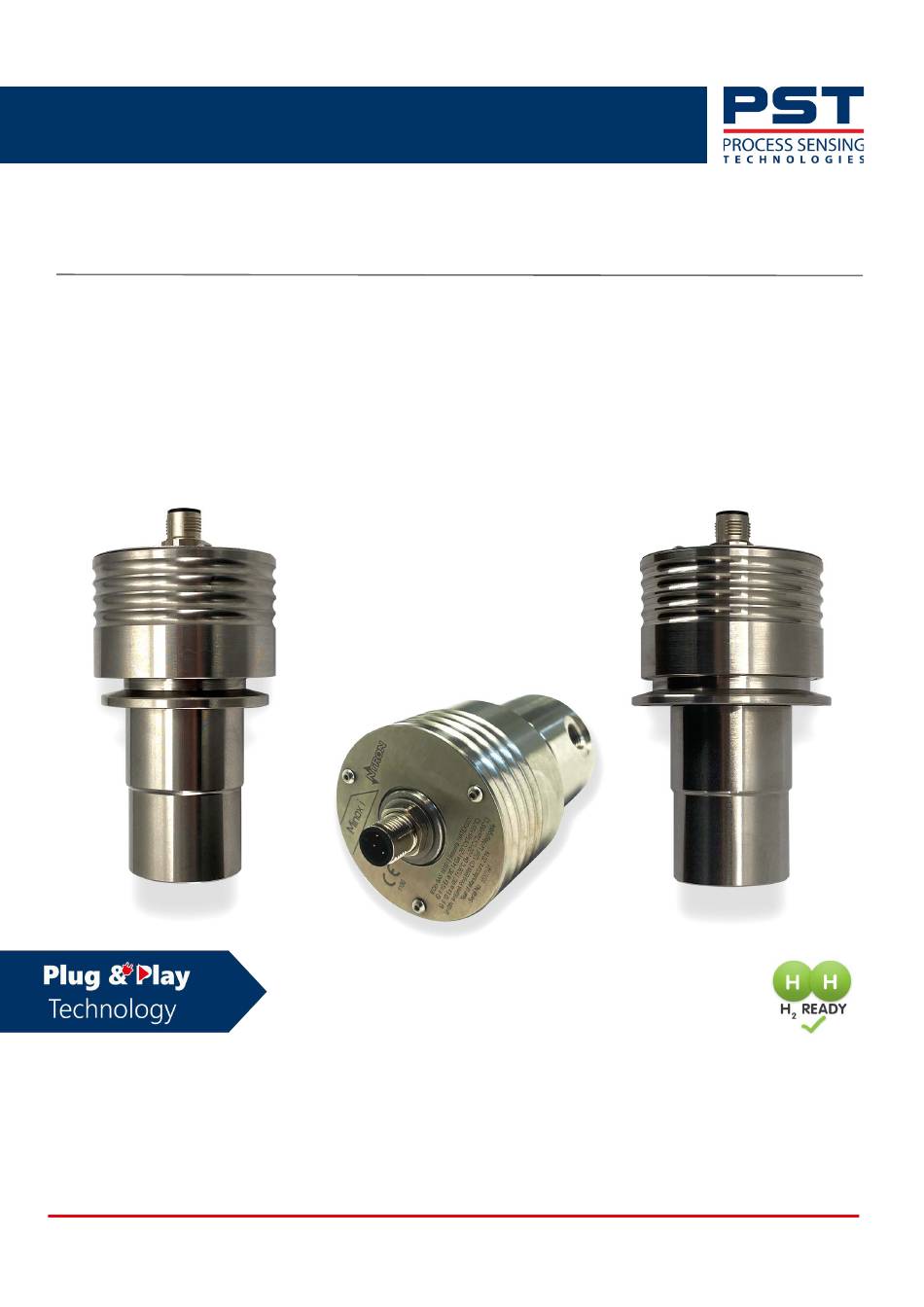

  • Page 1 Minox-i Oxygen Transmitter User Manual PST-UM-2010-EN-2.1 PST-UM-2010-EN-2.1 08/2023...
  • Page 2 Updated calibration information and technical specifications 08/2023 Minox-i Oxygen Transmitter For PST contact information, visit ProcessSensing.com This document is the property of Process Sensing Technologies and may not be copied or otherwise reproduced, communi- cated to third parties, nor stored in any Data Processing System without the express written authorization of Process Sensing Technologies.
  • Page 3: Before Using Your Minox-I

    Minox-i Oxygen Transmitter User Manual Before using your Minox-i Safety information Please read this manual, ensuring that you fully understand the content before attempting to install, maintain or use the Minox-i. Important safety information is highlighted throughout this document as follows: The warning symbol indicates instructions that must be followed to avoid minor, serious or even fatal injury to personnel.
  • Page 4: Abbreviations

    Minox-i Oxygen Transmitter User Manual Abbreviations Alternating current Direct current Degrees celcius Degrees fahrenheit Electrochemical Grams Ground Kilogram Light emitting diode Liters per minute Milliampere Ounces Personal computer Printed circuit board Programmable logic controller Parts per million SCFH Standard cubic feet per hour Solid-state Stainless steel ProcessSensing.com...
  • Page 5: Table Of Contents

    Minox-i Oxygen Transmitter User Manual Contents 1 Before using your Minox-i ....................iii 1.1 Safety information ........................iii 1.2 Abbreviations ..........................iv 2 Introduction to Minox-i ....................1 2.1 Overview ............................. 1 2.2 Components ..........................2 2.3 Sensors ............................2 2.3.1 Electrochemical % (EC %) ......................2 2.3.2 Electrochemical ppm (EC ppm) .....................
  • Page 6 Minox-i Oxygen Transmitter User Manual ProcessSensing.com...
  • Page 7: Introduction To Minox-I

    Minox-i Oxygen Transmitter User Manual Introduction to Minox-i This manual is applicable to Minox-i oxygen transmitter with electrochemical (EC) or solid-state (S-S) sensors; and KF40 flange, flow-through or 2” tri-clamp process connections. Overview ATEX, IECEx and UKCA certified, the Minox i is an intrinsically safe (I.S), 2-wire, loop-powered oxygen transmitter with a 4...20 mA output.
  • Page 8: Components

    Minox-i Oxygen Transmitter User Manual Components The Minox-i oxygen transmitter consists of an oxygen sensor and inbuilt microprocessor. They are encased in stainless steel, with a process connection on the removable housing and an electrical signal connector on the main housing. The sensor is replaceable and can be accessed via the removable housing, as shown in Figure Removable housing...
  • Page 9: Solid-State (S-S)

    Minox-i Oxygen Transmitter User Manual 1.3.3 Solid-state (S-S) The Minox-i S-S sensor is not gas-dependent or specific, and offers a robust measurement capability on process gas streams or in containment environments. It can operate with or without sample flow, making it ideal for in-situ monitoring, and it is not orientation-specific. With the tri-clamp and KF40 process connections, the Minox-i can be mounted on a T-piece of pipe- line or on the vertical panel of a containment system without concern.
  • Page 10: Installation

    Minox-i Oxygen Transmitter User Manual Installation Before installing your Minox-i oxygen transmitter, ensure that its specifications are suitable for the process or pipeline where it will be installed. See "2.2.1 KF40 flange and 2” tri-clamp process connections with dimensions" on page 5 or "2.2.2 Flow-through process connection with dimensions"...
  • Page 11: Mount The Minox-I

    Minox-i Oxygen Transmitter User Manual Leaving a sensor in ambient air conditions will reduce sensor life. Mount the Minox-i The Minox-i transmitter requires a two-wire industry-standard 4...20 mA loop-powered connection, which you must be provide. It must be installed in the measurement point before the sensor is removed from its sealed package.
  • Page 12: Flow-Through Process Connection With Dimensions

    If the sample gas is at sub-atmospheric pressure, the sample must be drawn through the flow-through block. PST-Ntron can supply systems to aid this installation upon request. Electrical signal connector 45.1...
  • Page 13: Electrical Connection

    Minox-i Oxygen Transmitter User Manual 2.2.3 Electrical connection Suitable isolation Suitable PLC / loop supply barrier Function Green +24 V +24 V DC (loop in) Brown White -VE (loop out signal) Loop #Blue sensing No connection I.S. element #Black I.S. No connection output output...
  • Page 14: Install Your Sensor

    Minox-i Oxygen Transmitter User Manual The Minox-i oxygen transmitter operates using a 2-wire industry-standard 4...20 mA loop-powered supply which you must provide. Once the Minox-i is connected to your process, it is ready to be connected to your power supply. To do this: Align the pins in the Minox-i electrical signal connector with the M12 mating connector on the cable.
  • Page 15: Calibration

    Minox-i Oxygen Transmitter User Manual Calibration NOTE: Calibration should be carried out by an appropriately trained or suitably qualified person. The oxygen sensor output will decrease over time, and periodic calibration will be required. This is a non-intrusive procedure, achieved by using the MagTip one-touch calibration tool included with your Minox-i.
  • Page 16 Minox-i Oxygen Transmitter User Manual NOTE: The pressure flow should replicate that applied to the Minox-i during normal operation. This will ensure calibration is accurate, and avoid over-pressurizing the oxygen sensor. To customer control system interface Typical in-situ pipeline calibration application Cylinder oxygen or ambient air (20.9 %) ²...
  • Page 17: Air Calibration

    Minox-i Oxygen Transmitter User Manual Air calibration The following method of air calibration should only be performed on a Minox-i %. Figure 9. Minox-i indicator LED Unfasten and remove the Minox-i from your process, and leave it in an ambient air environment. Ensure the environment has normal oxygen concentration, an independent portable oxygen ana- lyzer can be used to check this.
  • Page 18: Maintenance

    Minox-i Oxygen Transmitter User Manual Maintenance General To maintain performance, the sensor in Minox-i will require replacement. Please check the Technical Specifications for frequency. During sensor replacement, it is recommended that light cleaning of the external housing is carried out, as well as the checks outlined in this section. Never use chemical cleaning agents or high pressure water or steam to clean the equipment.
  • Page 19: Check Your Minox-I

    Minox-i Oxygen Transmitter User Manual rings are facing out of the removable housing as shown in Figure Screw the removable housing back onto the main housing, by turning it counter-clockwise. NOTE: The brass slip rings on the sensor must face into the main housing and out of the removable housing as shown above.
  • Page 20: Appendices

    Minox-i Oxygen Transmitter User Manual Appendices Appendix A - Technical Specifications Sensor Solid-state Electrochemical Electrochemical Electrochemical (ppm) (CO2 gases, ppm) Model OC-92 OC-90 OC-60 OC-69 Measuring Range 0…25 % 0…10, 0…100, 0…1000 ppm Accuracy Please see Accuracy Table below Output Resolution (4...20 mA) 0.01 % 1 ppm Lower Detection Limit (LDL)
  • Page 21: Appendix B - Hazardous Area Certification

    Minox-i Oxygen Transmitter User Manual Appendix B - Hazardous Area Certification Area Certification details Standards IECEx / ATEX / UKCA IECEx BAS 19.0013 / Baseefa 19ATEX0020 / EN IEC 60079-0:2018 BAS22UKEX0052 EN 60079-11:2012 Europe & II 1 GD IEC 60079-0 ed. 7 2017 Japan Ex ia IIC T4 Ga (-20 °C≤Ta≤+55 °C) IEC 60079-11 ed.
  • Page 22: Appendix C - Quality, Recycling And Warranty Information

    Minox-i Oxygen Transmitter User Manual Appendix C - Quality, recycling and warranty information Ntron Gas Measurement is part of the Process Sensing Technologies (PST) Group. The PST Oxygen group of companies - Aii, Ntron and SST - comply with applicable national and international standards and directives.
  • Page 23 Minox-i Oxygen Transmitter User Manual This page is intentionally blank ProcessSensing.com...
