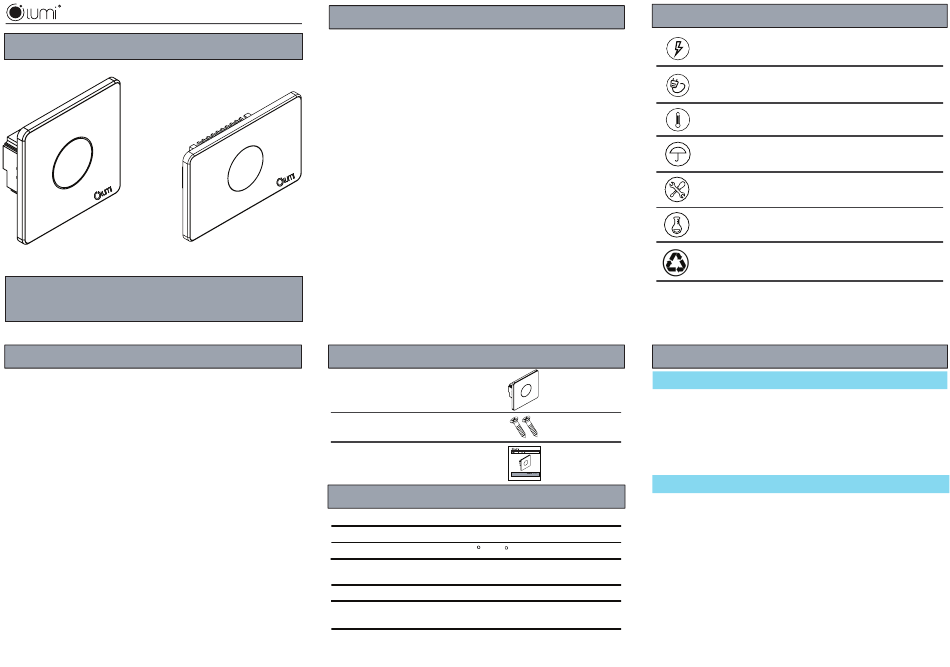

Lumi LM-S1D User Manual

USER GUIDE
Dimmer - square shape

Notice before Usage

Thank you for choosing Lumi Dimmer. You will receive the best
supports from us.
Before usage, please read the user guide carefully to ensure that you
totally understand all specifications of the device. The warranty does
not cover issues from faulty installations and incorrect usage of the
product
If having any questions, please feel free to contact us everytime.

Introduction

Lumi Vietnam.,JSC
20.2.1
Lumi Dimmer can control On/Off and dimming the dimmer device.
With a simple design compounded by tempered glass and capacitive
touch, Lumi's devices will make your home become more elegant,
modern and luxurious.
Also, based on Zigbee communication technology, the touch panel
switch could be controlled remotely from everywhere providing the
Internet available.
Once integrated into a smart home system, the device could be
connected and worked with other devices such as motion sensor,
door sensor, etc via a gateway.
Dimmer - rectangle shape
DIMMER
MODEL: LM-S1D

Product Package

Device LM-S1D
Screws
User Guide

Technical Information

Power Supply
Power consumption standby
Operational temperature
Power rating
Radio protocol
Dimensions (DxRxC)
Lumi Vietnam.,JSC
H NG D N S D NG D
T C M NG
Model: LM-Sx
100 - 240V AC ~ 50/60Hz
<0,5W
0 C - 50 C
Non reactive load: 500W
Led : 150W
Zigbee
95 x 95 x 31,5 mm (square)
121,5 x 80 x 31,5 mm (rectangle)

Safety Notes

Do not use voltage different from the one stated in the
device's specifications.
Disconnect the device's power before installation or
repair
Do not place the device in high-temperature
environment.
Do not place the place in wet enviroment and near water
source
Do not disassemble the device if not necessary
Do not clean the device with corrosive chemicals
Safety instruction should be complied during the device
Usage.
Device's functions
Manual usage
Device LM-S1D with design compounded capacitive touch. User
wants turn On/Off and dimming the dimmer device, just tap on the
touch button (round shape) on switch. Led indication is bright Red -
mean electric device turns on, Led indication is bright Blue - mean
electric device turns off. Or user cn touch on border of sensor area
and rotate follow clockwise to increase brightness. Rotate follow
counter clockwise to decrease brightness.

Advanced usage

Touch switch integrated with Zigbee protocol, when touch switch
connected to Home Controller, it can be receive control command
from App Lumi Life (on Smartphone, tablet...)
Moreover, device LM-S1D can work automatically according to rules,
scenes, schedules was configured on App Lumi Life
