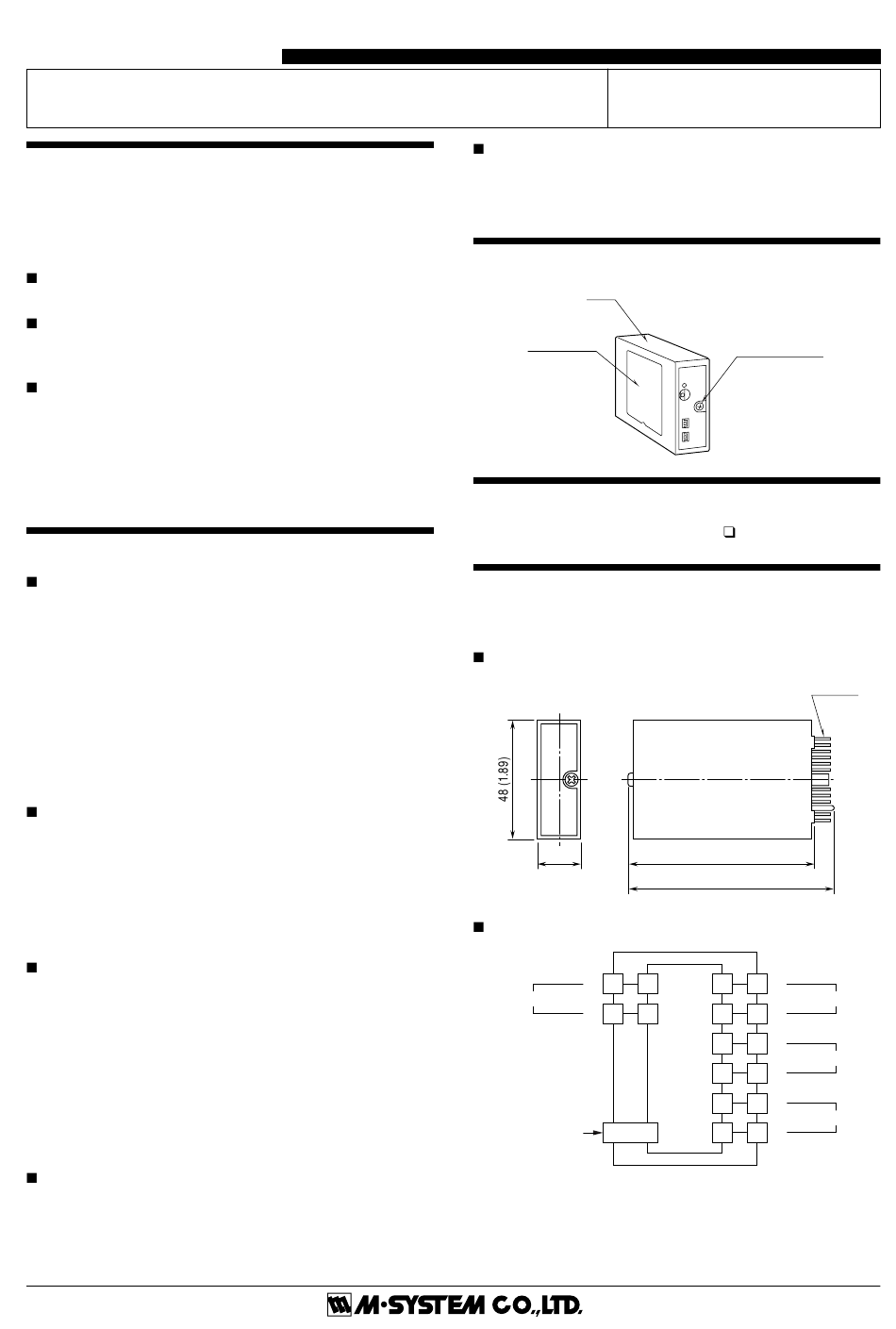

M-system M8XV3 Instruction Manual

INSTRUCTION MANUAL
SIGNAL CONVERTER
BEFORE USE ....
Thank you for choosing M-System. Before use, check the
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
PACKAGE INCLUDES:
Signal conditioner ....................................................... (1)
MODEL NO.
Check that model No. described on specification label is
exactly what you ordered.
INSTRUCTION MANUAL
This manual describes necessary points of caution when you
use this product, installation, connection and basic mainte-
nance procedures.
For changing I/O ranges, the JX Configurator Connection Kit
(model: JXCON) is required. For detailed information, refer
to the data sheet and instruction manual for the JXCON.
POINTS OF CAUTION
M8XV3: CONFORMITY WITH EC DIRECTIVES
• Operational insulation is maintained between signal input
and output.
• The equipment must be mounted inside a panel.
• Install lightning surge protectors for those wires connected
to remote locations.
• The actual installation environments such as panel con-
figurations, connected devices, connected wires, may affect
the protection level of this unit when it is integrated in a
panel system. The user may have to review the CE require-
ments in regard to the whole system and employ additional
protective measures to ensure the CE conformity.
POWER INPUT RATING & OPERATIONAL RANGE
• Check the power rating for the unit on the specification
label.
Rating 24V DC: 24V ±10%, approx. 50mA
• Power fuse: A power fuse of the rating as shown below is
incorporated for safety. However, DO NOT replace it by the
user.
T 0.25A 125V
ENVIRONMENT
• Indoor use
• When heavy dust or metal particles are present in the air,
install the unit inside proper housing and ventilate it.
• Do not install the unit where it is subjected to continuous
vibration. Do not apply physical impact to the unit.
• Environmental temperature must be within 0 to 55°C (32
to 131°F) with relative humidity within 30 to 95% RH in order
to ensure adequate life span and operation.
• Be sure that the ventilation slits are not covered with
cables, etc.
WIRING
• Do not install cables (input and output) close to noise
sources (relay drive cable, high frequency line, etc.).
• Do not bind these cables together with those in which noises
are present. Do not install them in the same duct.
(PC programmable)
MODEL
AND ....
• The unit is designed to function as soon as power is
supplied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data sheet.
COMPONENT IDENTIFICATION
Body
Specification
Label
INSTALLATION
Use Installation Base (model: M8BS ).
TERMINAL CONNECTIONS
Connect the unit referrint the drawings below.
EXTERNAL DIMENSIONS mm (inch)
17.5(.69)
CONNECTION DIAGRAM
+
A
INPUT
–
B
CONFIGURATOR
JACK
M8XV2 / M8XV3
M8XV2
M8XV3
Mounting Screw
I/O PINS
75 (2.95)
83 (3.27)
+
1 6
OUTPUT 1
–
2 7
+
8
OUTPUT 2
–
9
+
10
–
11
Installation Base
P. 1 / 3 EM-5469 Rev.2
POWER
