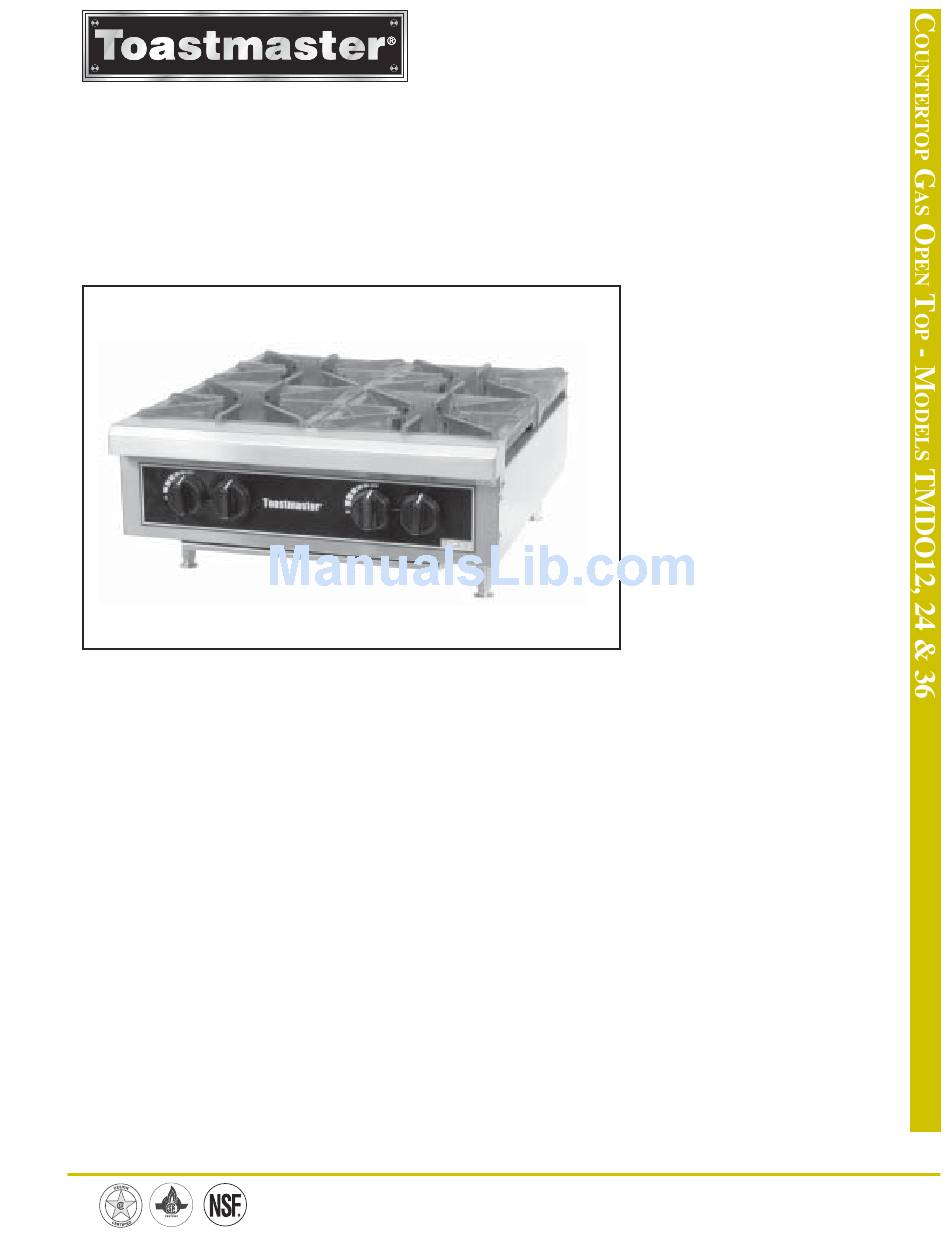

Toastmaster TMDO12 Brochure

Countertop Gas Open Top
Models TMDO12, 24 & 36
TMDO24
Application
The Toastmaster Countertop Gas
Griddle is the most economical and
flexible Countertop Griddle in the
food service industry. It offers
unsurpassed performance,
combining a proven control system
with Toastmaster quality and
durability. Available in three different
sizes: 12", 24", and 36".
Standard Features
• 52,000 BTU/hr per foot (26,000
BTU/hr per burner).
Range top available in 2,4 or 6
•
cast iron burners.
Stainless steel front including
•
top rail.
Aluminized steel rear and sides.
•
4" chrome legs.
•
• 3/4" rear gas connection and
universal presure regulator
supplied.
Full width crumb tray.
•
Electrical
None required.
Heating
Each burner is controlled by
independent control of flame. One
standing pilot services each burner.
A 3/4 " rear connection is standard.
Each burner is rated for 26,000
BTU/hr for natural gas and 20,000
BTU/hr for propane gas. The TMDO
has two cast iron burners per 12".
TMDO12 - 2 burners, TMDO24 -3
burners, TMDO36 - 4 burners.
Controls
One front panel mounted control
knob per burner, to allow adjustable
flame height. Two burners per 12".
Warranty
Product warranty includes one year
parts and labor. (USA only)
1400 Toastmaster Drive, Elgin IL 60120-9272 USA - Tel: 847-741-3300 - Fax: 800-635-4725 - www.toastmastercorp.com
Form 904 Rev 0 (02/05)
Foodservice Equipment
Job ________ Item# ________
Approximate Weights
TMDO24 - 105 lbs. shipping.
TMDO36 - 160 lbs. shipping.
TMDO48 - 245 lbs. shipping.
Cleanability
! Stainless steel front for durability
and easy cleanup.
! Easy access to grease drawer.
