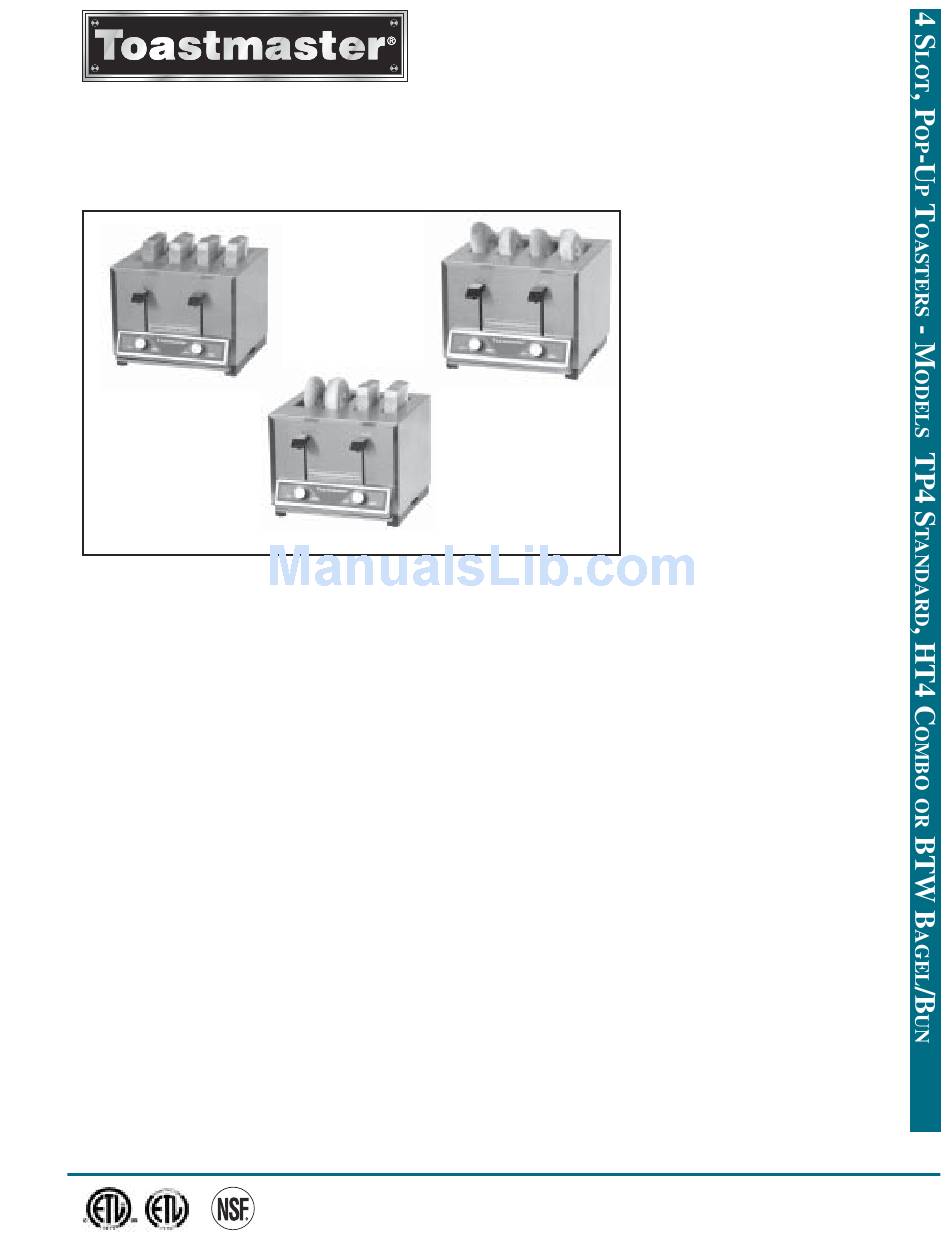

Toastmaster BTW09 Specifications

Solid-State, 4 Slot, Pop-Up Toasters
TP4 Standard, HT4 Combo or BTW Bagel/Bun
TP4 Standard
Application
Commercial electronic pop-up food
toasters are designed to uniformly toast
bread, frozen waffles and many other
foods consistently.
General Information
TP409/TP424/TP430
Commercial four slot pop-up type bread
toaster has four toasting slots in the
top. Each slot is 1-1/16" (28.6mm)W x
5-1/4" (133mm)L. Each toasting
chamber is equipped with oven guide
wires, and lowering rack. Overall
dimensions are 11-7/16" (291mm)W x
13" (330mm)D x 9-3/16"(233mm)H.
HT409/HT424
Commercial four slot pop-up type bread
toaster has two toasting slots in the top.
Two slots are standard 1-1/16"
(28.6mm)W x 5-1/4" (133mm)L, and
two slots are extra-wide one sided
slots, 1-9/16" (40mm)W x 5-1/
4"(133mm)L. Each toasting chamber is
equipped with oven guide wires, and
lowering rack. Overall dimensions are
11-7/16" (291mm)W x 13" (330mm)D x
9-3/16" (233mm)H.
BTW09/BTW24
Commercial two slot pop-up type bread
toaster has two toasting slots in the top.
BTW Bagel/Bun
HT4 Combo
Each slot is extra wide 1-9/16"
(40mm)W x 5-1/4" (133mm)L. Each
toasting chamber is equipped with oven
guide wires, and lowering rack. Overall
dimensions are 6-5/8" (171mm)W x 13"
(330mm)D x 9-3/16"(233mm)H. Each
Chamber Of The BTW Is One-Sided
Toasting Only.
Model TP4, HT4 and BTW Series
Toasters Feature:
• Solid state timer control
• Electrical heating elements that
provide uniform heat and even
toasting
• Operating lever and color selection
knob
Removable crumb tray
•
Construction
Construction is of formed and welded
sheet steel. Finish is brushed stainless
steel with a bright anneal (mirrored)
finish on the front panel. A front pullout
crumb tray is provided for easy
cleaning.
Electrical
The toasters are equipped with a two
pole microswitch for each pair of slots
that energizes the elements when the
respective operating lever is
depressed. All wiring connects in a
1400 Toastmaster Drive, Elgin IL 60120-9272 USA - Tel: 847-741-3300 - Fax: 800-635-4725 - www.toastmastercorp.com
Form 128 Rev 0 (02/05)
Foodservice Equipment
Job ________ Item# ________
junction box at the rear. All electronic
toasters are furnished with factory
installed 36" cord and NEMA plug, and
operate on 1 phase only. See additional
specifications on back for exact NEMA
plug and electrical requirements.
Heating
Insulated ceramic etched foil heaters
are installed on both sides of each
toasting chamber.
Controls
The two-slot section is controlled by a
lever operated mechanism, it is
equipped with color selector knob
coupled with solid state controls having
temperature and voltage
compensators. When operating lever is
depressed, bread racks are lowered,
and elements are energized
simultaneously. At the end of the
toasting cycle, elements are de-
energized , and bread racks are
automatically raised by a coil spring.
Capacity
The TP409 toaster will toast 300 slices
per hour. The TP424 toasts 380 slices
per hour at 240V, and 300 slices per
hour at 208V. The TP430 toasts 380
slices per hour.
The HT409 and HT424 in 208V, can
toast 150 slices of bread and 150 bagel
halves or 120 English muffins halves
per hour. The HT424 in 240V toasts
190 slices of bread and the same
capacity of bagels and muffins per
hour.
The BTW09/BTW24 can toast
approximately 300 bagel halves or 240
English muffins per hour.
No Quibble Warranty
Warranted for one year covering parts
and labor.
Approximate Weights
HT4/TP4/BTW - 18 lbs. (8.2 kg).
installed, 21 lbs. (9.5 kg) shipping.
Optional Accessories
!1D3CS - Stainless steel toaster
stand. Holds two toasters.
