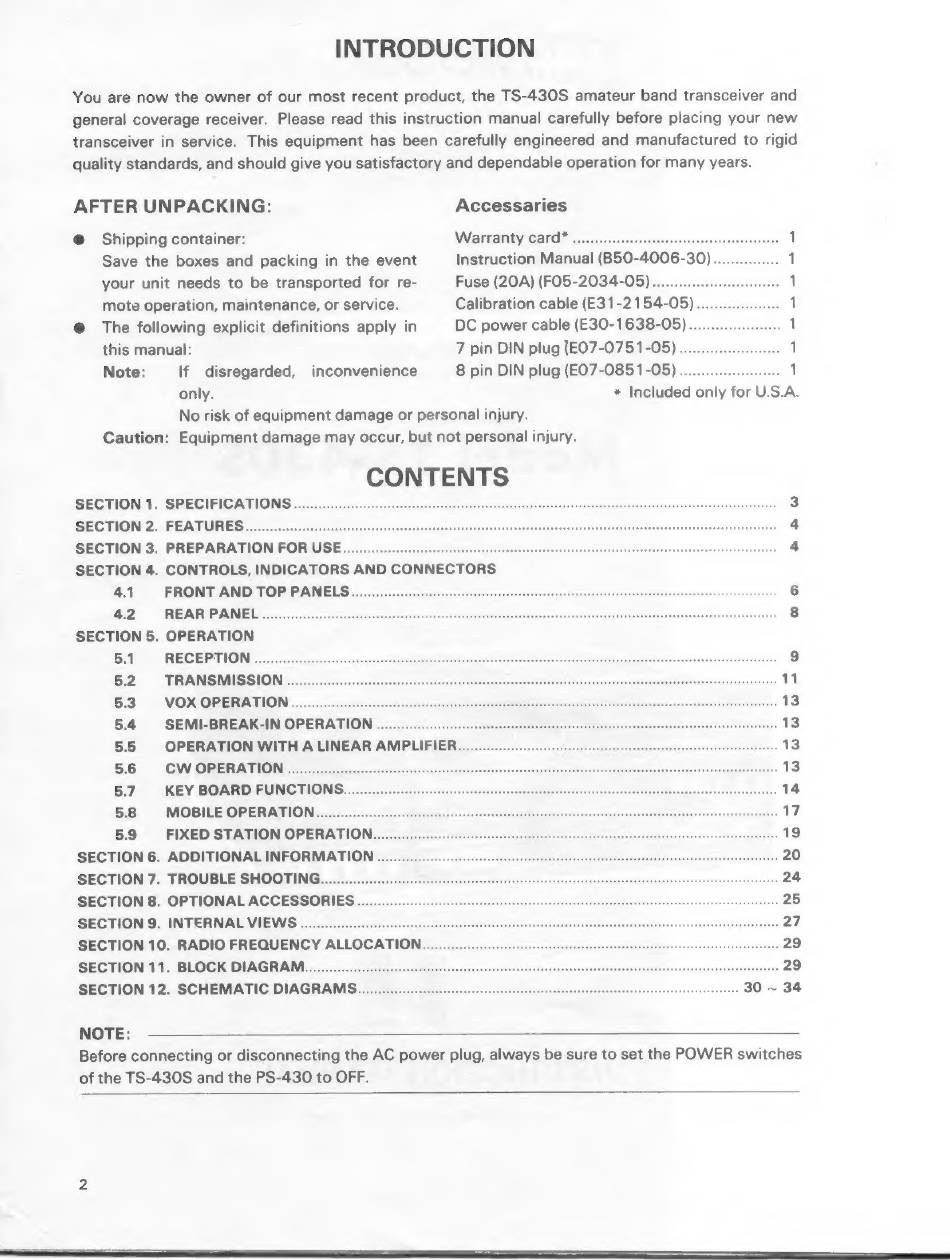

INTRODUCTION
You are now the owner of our most recent product, the TS-430S amateur band transceiver and
general coverage receiver. Please read this instruction manual carefully before placing your new
transceiver in service. This equipment has been carefully engineered and manufactured to rigid
quality standards, and should give you satisfactory and dependable operation for many years.
AFTER UNPACKING:
@ Shipping container:
Save the boxes and packing in the event
your unit needs to be transported for re-
mote operation, maintenance, or service.
@ The following explicit definitions apply in
this manual:
Note: If disregarded, inconvenience
only.
Accessaries
WV SIT AFICY, CONG ce cescg cscs evend pn entusse cosensveocacvensoe 1
Instruction Manual (B50-4006-30)...
Fuse (20A) (FO5-2034-05)..
Calibration cable (E31-2154-05)
DC power cable (E30-1638-05)...
7 pin DIN plug (E07-0751-05)
8 pin DIN plug (E07-0851-05) ...... eee 1
* Included only for U.S.A.
No risk of equipment damage or personal injury.
Caution: Equipment damage may occur, but not personal injury.
CONTENTS
SECTION 1. SPECIFICATIONS..
SECTION 2. FEATURES .
SECTION'S. PREPARATION: FORMUSE coi a5cori,. svicosnnes etirian scart reanttiySroeeatnestenasaesompeweahsnasdsnsssssssesenssrenssesssceans 4
SECTION 4. CONTROLS, INDICATORS AND CONNECTORS
41 FRONT AND TOP PANELS
4.2 REAR PANEL
SECTION 5. OPERATION
5.1 RECEPTION
5.2 TRANSMISSION
5.3 VOX OPERATION...
5.4 SEMI-BREAK-IN OPERATION
5.5 OPERATION WITH A LINEAR AMPLIFIER..
5.6 CW OPERATION
5.7
KEY BOARD FUNCTIONS.
.
5.8 IMO BIE PER BION ira sc nsstiangs --cestinartara® chsss rust Tagih sada torscate=ssarcbhoks sex, tigate staltes ceonesngnrctastyass.
5.9 FIXED STATION OPERATION...
SECTION 6. ADDITIONAL INFORMATION ..
SECTION 7. TROUBLE SHOOTING
SECTION 8. OPTIONAL ACCESSORIES
SECTION 9. INTERNAL VIEWS
SECTION 10. RADIO FREQUENCY ALLOCATION.
SECTION 11. BLOCK DIAGRAM
SECTION 12. SCHEMATIC DIAGRAMG................cccccccsseseseeesenereneneneneneneneneneneeeneneneneneneneneneneeeesieeeeees
NOTE:
Before connecting or disconnecting the AC power plug, always be sure to set the POWER switches
of the TS-430S and the PS-430 to OFF.
