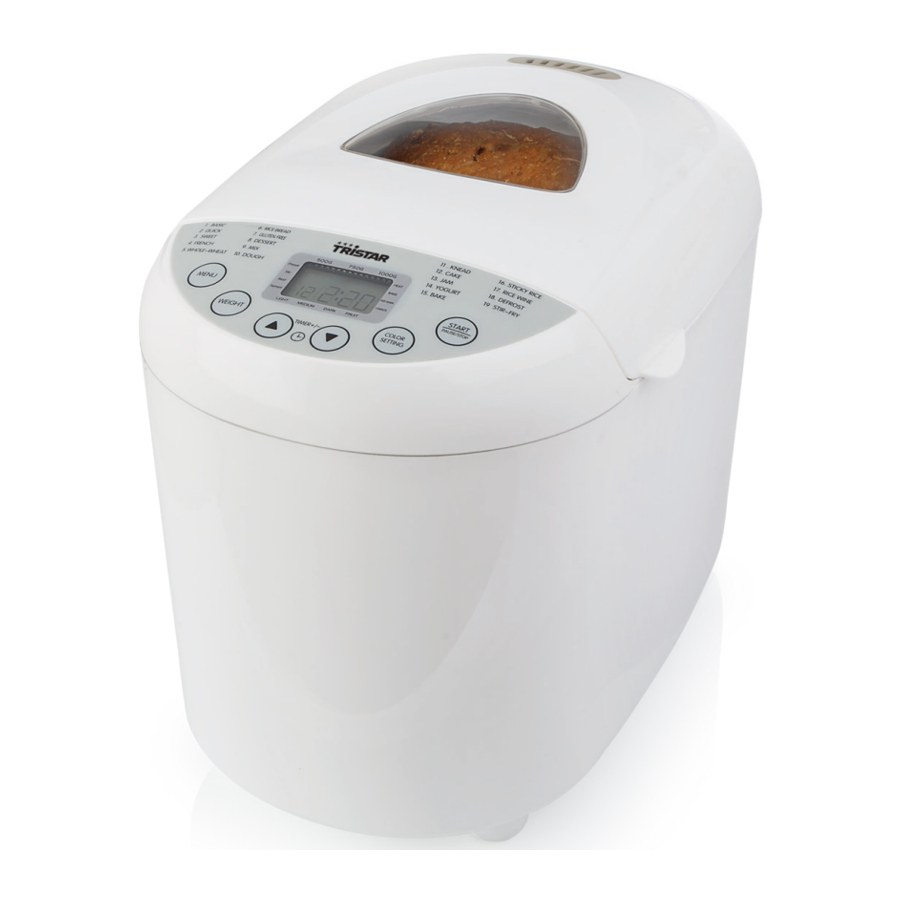

Tristar BM-4586 - Breadmaker Manual

PARTS DESCRIPTION

1. Lid
2. Menu button
3. Weight button
4. Up and down button
5. Color button
6. Start/stop button
7. Kneader
8. Bread pan
9. Control panel
10. Measuring cup
11. Measuring spoon
12. Hook

BEFORE THE FIRST USE

• The appliance may emit a little smoke and a characteristic smell when you turn it on for the first time. This is normal and will soon stop. Make sure the appliance has sufficient ventilation.
• Unpack your appliance and check whether all parts and accessories are complete and free of damage.
• Clean all the parts according to the section "CLEANING AND MAINTENANCE".
• Set the bread maker on bake mode and bake empty for about 10 minutes. Then let it cool down and clean all the detached parts again.
• Dry all parts thoroughly and assemble them, the appliance is ready for use.

USE

Start/stop button

• The button is used for starting and stopping the selected baking program.
• To start a program, press the START/STOP button once. A short beep will be heard, the indicator will light up, and the two dots in the time display begin to flash and the program starts. Any other button is inactivated except the START/STOP button after a program has begun.
• To stop the program, press the START/STOP button for approx. 3 seconds, then a beep will be heard, it means that the program has been switched off. This feature will help to prevent any unintentional disruption to the operation of program.

Menu button

• The MENU button is used to set different programs. Each time it is pressed (accompanied by a short beep) the program will vary. Press the button discontinuously, the 19 menus will be cycled to show on the LCD display. Select your desired program. The functions of 19 menus will be explained below.

Program 1: Basic
For white and mixed breads, it mainly consist of wheat flour or rye flour. The bread has a compact consistency. You can adjust the bread brown by setting the COLOR button.

Program 2: Quick
Kneading, rise and baking loaf within the time less than basic bread. But the bread baked on this setting is usually smaller with a dense texture.

Program 3: Sweet
For breads with additives such as fruit juices, grated coconut, raisins, dry fruits, chocolate or added sugar. Due to a longer phase of rising the bread will be light and airy.

Program 4: French
For light breads made from fine flour. Normally the bread is fluffy and has a crispy crust. This is not suitable for baking recipes requiring butter, margarine or milk.

Program 5: Whole Wheat
For breads with heavy varieties of flour that require a longer phase of kneading and rising (for example, whole wheat flour and rye flour). The bread will be more compact and heavy.

Program 6: Rice bread
Kneading, rise and baking loaf with the 1:1 mix of cooked rice and flour.

Program 7: Gluten free
Kneading, rise and baking GLUTEN free loaf. Normally for: gluten free flour, rice flour, sweet potato flour, corn flour and oat flour.

Program 8: Dessert
Kneading and baking those foods with more fat and protein.

Program 9: Mix
To make the flour and water or some others can well commix.

Program 10: Dough
Kneading and rise, but without baking. Remove the dough and use for making bread rolls, pizza, steamed bread, etc.

Program 11: Knead
Setting the kneading time by user with different qty.

Program 12: Cake
Kneading, rise and baking, but rise with soda or baking powder.

Program 13: Jam
Boiling jams and marmalades.

Program 14: Bake
For additional baking of breads that are too light or not baked through. In this program there is no kneading or raising.

Program 15: Yoghourt
Rising and make the yoghourt.

Program 16: Sticky rice
Kneading and baking the mix of polished glutinous rice and rice.

Program 17: Rice wine
Rising and baking the polished glutinous rice.

Program 18: Defrost
Defrost those frost foods.

Program 19: Stir-fry
Kneading and baking some dry fruit, such as peanut, soybean etc.

Color button

• With the button you can select light, medium or dark color for the crust. This button is not applicable for the following program: Menu 9, 10, 11, 13, 15, 16, 17, 18, 19

Weight button

• Select the weight (450g, 600g, 750g). Press the weight button to choose your desired gross weight, see the mark beneath it for reference.
• This button is only applicable for the following program: menu 1-7

Up and down button

• If you want the appliance do not start working immediately you can use this button to set the delay time.
• You must decide how long it will be before your bread is ready by pressing the these buttons. Please note the delay time should include the baking time of program.
• At first the program and degree of browning must be selected, then pressing the up or down button to increase or decrease the delay time at the increment of 10 minutes. The maximum delay is 15 hours.
• Example: Now it is 8:30p.m, if you would like your bread to be ready in the next morning at 7 o'clock, i.e. in 10 hours and 30 minutes. Select your menu, color, loaf size then press the up or down to add the time until 10:30 appears on the LCD. Then press the START/STOP button to activate this delay program and the indicator will light up. You can see the dot flashed and LCD will count down to show the remaining time. You will get fresh bread at 7:00 in the morning, if you don't want to take out the bread immediately, the keeping warm time of 1hour starts.

Note: For time delayed baking, do not use any easily perishable ingredients such as eggs, fresh milk, fruits, onions, etc.

Keep warm

• Bread can be automatically kept warm for 1 hour after baking. During keeping warm, if you would like to take the bread out, switch the program off by pressing the START/STOP button.

Memory

• If the power supply has been interrupted during the course of making bread, the process of making bread will be continued automatically within 10 minutes, even without pressing START/STOP button. If the interruption time exceeds 10 minutes, the memory cannot be kept, you must discard the ingredients in the bread pan and add the ingredients into bread pan again, and the bread maker must be restarted. But if the dough has not entered the rising phase when the power supply breaks off, you can press the START/STOP directly to continue the program from the beginning.

Environment

• The machine may work well in a wide range of temperature, but there may be any difference in loaf size between a very warm room and a very cold room. We suggest that the room temperature should be within the range of 15^oC to 34^oC.

Warning display

• If the display shows "HHH" after you have pressed START/STOP button, the temperature inside is still too high. Then the program has to be stopped. Open the lid and let the machine cool down for 10 to 20 minutes.
• If the display shows "EE0" after you have pressed START/STOP button, the temperature sensor is disconnected please check the sensor carefully by Authorized expert.

HOW TO MAKE BREAD

• Place the bread pan in position, and then turn it clockwise until they click in correct position. Fix the kneading blade onto the drive shaft. It is recommended to fill hole with heat-resisting margarine prior to place the kneading blade to avoid the dough sticking the kneading blade, also this would make the kneading blade be removed from bread easily.
• Place ingredients into the bread pan. Please keep to the order mentioned in the recipe. Usually the water or liquid substance should be put firstly, then add sugar, salt and flour, always add yeast or baking powder as the last ingredient.

Note: the quantities of flour and raising agent that may be used refer to the recipe.

• Make a small indentation on the top of flour with finger, add yeast into the indentation, make sure it does not come into contact with the liquid or salt.
• Close the lid gently and plug the power cord into a wall outlet.
• Press the MENU button until your desired program is selected.
• Press the COLOR button to select the desired crust color.
• Press the LOAF SIZE button to select the desired size.
• Set the delay time by pressing the up or down button. This step may be skipped if you want the bread maker to start working immediately.
• Press the START/STOP button once to start working, and the indicator will light up.
• For the program of menu 1-7 beeps sound will be heard during operation. This is to prompt you to add ingredients. Open the Lid and put in some ingredients. It is possible that steam will escape through the vent in the lid during baking. This is normal.
• Once the process has been completed, ten beeps will be heard. You can press START/STOP button for approx. 3 seconds to stop the process and take out the bread. Open the Lid and while using oven mitts, turn the bread pan in anti-clockwise and take out the bread pan.

  the Bread pan and bread may be very hot! Always handle with care.
• Let the bread pan cool down before removing the bread. Then use non-stick spatula to gently loosen the sides of the bread from the pan.
• Turn bread pan upside down onto a wire cooling rack or clean cooking surface and gently shake until bread falls out.
• Let the bread cool for about 20 minutes before slicing. It is recommended slicing bread with electric cutter or dentate cutter, had better not with fruit knife or kitchen knife, otherwise the bread may be subject to deformation.
• If you are out of the room or have not pressed START/STOP button at the end of operation, the bread will be kept warm automatically for 1 hour, when keep warm is finished, one beep will be heard.
• When do not use or complete operation, unplug the power cord.

Note: Before slicing the loaf, use the hook to remove out the Kneading blade hidden on the bottom of loaf. The loaf is hot, never use the hand to remove the kneading blade.

About Quick Breads

• Quick breads are made with baking powder and baking soda that activated by moisture and heat. For perfect quick breads, it is suggested that all liquids be placed in the bottom of the bread pan; dry ingredients on top, During the initial mixing of quick bread batters, dry ingredients may collect in the corners of the pan, it may be necessary to help machine mix to avoid flour clumps. if so, use a rubber spatula.

CLEANING AND MAINTENANCE

• Disconnect the machine from the power outlet and let it cool down before cleaning.
• Bread pan: remove the bread pan by turning it in anti-clockwise, then pulling the handle, wipe inside and outside of pan with damp clothes, do not use any sharp or abrasive agents for the consideration of protecting the non-stick coating. The pan must be dried completely before installing.

Note: Insert the bread pan and press down until it fixed in correct position. If it cannot be inserted, adjust the pan lightly to make it is on the correct position then turn it in clockwise.

• Kneading blade: If the kneading blade is difficult to remove from the bread, use the hook. Also wipe the blade carefully with a cotton damp cloth. Both the bread pan and kneading blade are dishwashing safe components.
• Housing: gently wipe the outer surface of housing with a wet cloth. Do not use any abrasive cleaner for cleaning, as this would degrade the high polish of the surface. Never immerse the housing into water for cleaning.

Note: It is suggested not disassembling the lid for cleaning.

• Before the bread maker is packed for storage, ensure that it has completely cooled down, clean and dry, and the lid is closed.

SAFETY INSTRUCTIONS

Before using the electrical appliance, the following basic precautions should always be followed:

• Read all instructions
• Before using check that the voltage of wall outlet corresponds to the one shown on the rating plate.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to manufacturer or the nearest authorized service agent for examination, repair or electrical or mechanical adjustment.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock do not immerse cord, plugs, or housing in water or other liquid.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Do not let cord hang over edge of table or hot surface.
• The use of accessory not recommended by the appliance manufacturer may cause injuries.
• This appliance is not intended for used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Do not touch any moving or spinning parts of the machine when baking..
• Never switch on the appliance without properly placed bread pan filled ingredients.
• Never beat the bread pan on the top or edge to remove the pan, this may damage the bread pan.
• Metal foils or other materials must not be inserted into the bread maker as this can give rise to the risk of a fire or short circuit.
• Never cover the bread maker with a towel or any other material, heat and steam must be able to escape freely. A fire can be caused if it is covered by, or comes into contact with combustible material.
• Turn any control to OFF, then remove plug from wall outlet.
• Do not operate the appliance for other than its intended use.
• This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.
• This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments;
  • Farm houses;
  • By clients in hotels, motels and other residential type environments;
  • Bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Do not use outdoors.
• Save these instructions

SUPPORT

You can find all available information and spare parts at service.tristar.eu!
