Summary of Contents for Adhesive Dispensing TS1215

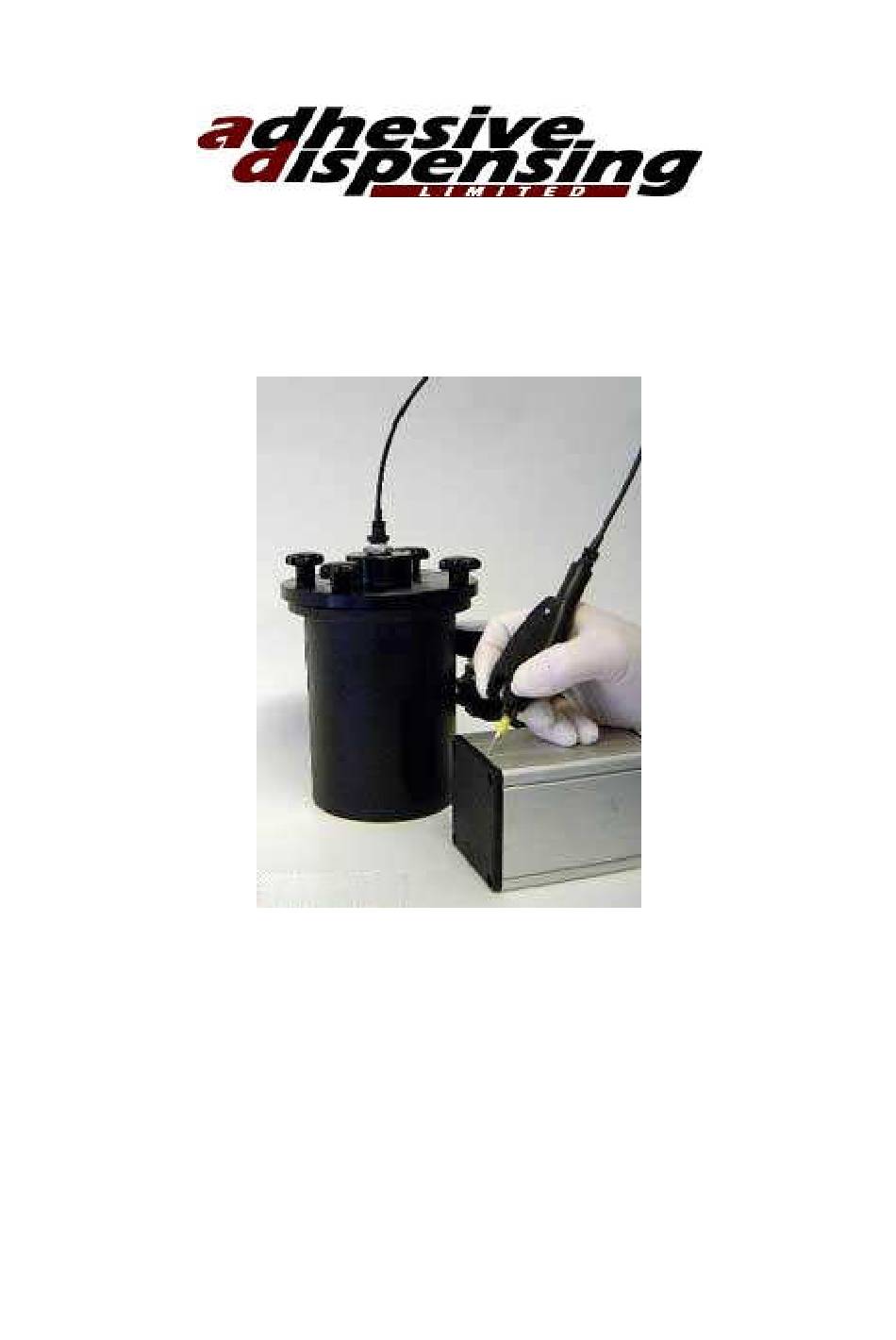

- Page 1 USER MANUAL TS1215 Pressure Pot...
- Page 2 Pressure Pot. This manual is designed to help you use your Pressure Pot as quickly as possible. We here at Adhesive Dispensing Ltd hope you find our product beneficial. If you ever have any questions, please contact us at the number listed below.
- Page 3 In no event shall manufacturer be liable for consequential or incidental damages. A return authorization is required from Adhesive Dispensing Ltd. prior to shipping a defective unit to the factory.
-
Page 4: Table Of Contents
Material Feeding Tube Insertion ..............9 Figure 4 Relief Valve....................11 Figure 5 Pressure Pot Assembly Drawing ...............13 Figure 6 TS1215-375…..Accessory Kit 3/8” Fitting and Tubing………………….14 Figure 7 TS1215-250…..Accessory Kit 1/4" Fitting and Tubing………………….14 Figure 8 TS1215-4MM...Accessory Kit 4mm Fitting and Tubing…………………15 Table Table 1 O-Rings Used with Pressure Pot ...............12... -
Page 5: Introduction
INTRODUCTION The TS1215 Pressure Pot offers a convenient, easy to use system for dispensing cyanoacrylates, as well as many solvents, lubricants and other low to medium viscosity materials directly from the material container/bottle. Air pressure in the chamber forces the material from the container/bottle through disposable polyethylene supply tubing to an optional dispensing valve. -
Page 6: Technical Specifications
Do NOT attempt to open cover lid until air pressure is released. Cover knobs must be hand tightened ONLY. Secure the pressure Pot to bench top or other stable work surface. Model TS1215 has mounting kit available for base plate. • Check with Factory if unsure about dispensing material chemical compatibility. -
Page 7: Installation And Operation
WARNING Read the material safety data sheets for special precautions for the specific material being dispensed. Wear protective safety equipment as specified in the material safety data sheets. INSTALLATION AND OPERATION Connector and Tubing Installation Select dispense size Tubing and Male Connector with Ferrule. 3 combination sizes are available: Tube 3/8”... - Page 8 Remove cap from material container. Cap may be saved for future resealing of container. Place material container inside pressure pot chamber. NOTE: DO NOT pour or spill dispense material into Pressure Pot chamber. Figure 1 Connect Filtered Air Figure 2 Filtered Air Connection Connection to Base of Pressure Pot to Pressure Regulator Insure that the ‘O-Ring stays in groove of cover.
-
Page 9: Operation Start-Up Procedure
Make necessary connection at the dispense end of the tube. Note: Connect dispense end of the tube to selected dispense valve CAUTION Never pour adhesives or other material directly into dispenser. To do so may cause severe damage to dispenser. Use material container or similar containment vessel. -
Page 10: Operation Stop Procedure
Figure 4 Relief Valve CAUTION Whenever replacing or removing valve(s), insure that regulator pressure is at zero. WARNING Do not open lid until air pressure is at zero. Operation STOP Procedure Pull air pressure regulator knob, turn counterclockwise and lower air pressure to zero. Pull on Relief Valve (figure 4) to insure chamber is completely depressurised. - Page 11 Unscrew tube male connector nut completely. Move nut and ferrule along tubing about 4 inches away from the connector body on the cover. Cut off tubing in between connector body on lid and nut/ferule. Put the cut tubing with nut/ferrule aside. Take care to accommodate drainage and spillage at the end of tubing. Wipe off any excess fluid material from the cut-ends of the tubings.
-
Page 12: O-Ring Care
TS1215-Vit ASSEMBLY DRAWINGS & PARTS LIST Assembly drawing TS1215 Pressure Pot is shown in Figure 5. The 3/8” Accessory Kit Fitting and Tubing is shown in Figure 6, 1/4" Accessory Kit Fitting and Tubing is shown in Figure 7, and... -
Page 13: Figure 6 Ts1215-375
Figure 6 TS1215-375…..Accessory Kit 3/8” Fitting and Tubing Figure 7 TS1215-250…..Accessory Kit 1/4" Fitting and Tubing... -
Page 14: Figure 8 Ts1215-4Mm
Figure 8 TS1215-4MM…..Accessory Kit 4mm Fitting and Tubing Specifications, colours and dimensions can be subject to change.
