Vestamatic Vestaline VL-MM-230-35/13Nm Installation And Operating Instructions

1. Safety precautions (safety measures)
2. Short description (identification of products)
3. Scope of delivery
4. Intended use
5. Technical data
6. Installation, Assembly, Disassembly
7. Troubleshooting
8. Warranty
9. Maintenance
10. Disposal of waste
11. Service / Contact
12. Declaration of conformity
WARNING!
Ä
Important safety information.
Follow these instructions to ensure the
safety of persons. The instructions must
be stored.
– Contact a professional electrician to install
the motor, be cause the motor requires a
power supply of 230VAC, 50 Hz.
– Check the motor for signs of mechanical
damage after un packing. If you notice
any shipping damage, do not start up the
motor and notify your supplier immedi-
ately.
– The motor should only be used for the
purpose specified by the manufacturer
(refer to the operating instructions). Any
changes or modifications thereof are not
permissible and will result in loss of all
warranty claims.
– Technical data can be found on the type
label of the tubular motor.
– If the motor cannot be operated without
presenting a hazard, it must be switched
off and prevented from being switched
on unintentionally.
– When performing work on the windows,
motor or connected shades, protect
them against unauthorised or uninten-
tional operation.
© Vestamatic GmbH
G
VL-MM-230-35
Vestaline
M-Line motors
CONTENTS
1. Safety precautions
1/5
G
VL-MM-230-35/10Nm
VL-MM-230-35/13Nm
VL-MM-230-35S/10Nm

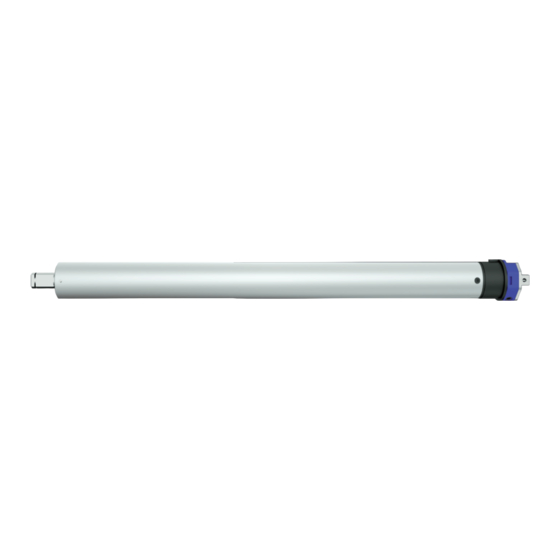

Vestaline motors for controlling roller shutters.
Installation and Operating Instructions
– Moving parts of the motor installed un-
der 2.5 m above the floor level should be
protected.
– This motor is not intended for use by per-
sons (including children) with reduced
physical, sensory or mental abilities or
lack of experience and / or lack of knowl-
edge, unless they are supervised by a
person responsible for their safety, or re-
ceived instructions on how the device is
to be used.
– Children should be supervised to ensure
that they do not play with the device.
– Children are not allowed, to play with
fixed controls. Keep remotes away from
children.
– The installation has to be checked fre-
quently for imbalance or of signs of wear,
damaged cables or springs, if applicable.
– Automatically controlled systems have
to be disconnected from the supply net-
work, e. g. if maintenance work has to be
done close to them.
– Before the motor is installed, all un-
needed wires must be removed and all
devices which are not required for actua-
tion with a power drive must be put out of
operation.
– The actuating element of a hand release
is to be installed at a height of less than
1.8 m.
– The mains cable of this device cannot be
replaced. If the mains cable is damaged,
the device has to be discarded.
H O M E ∙ VL-MM-230-35
H O M E
Art.-no.: 01066010
Art.-no.: 01066020
Art.-no.: 01066030
Subject to modifications.
