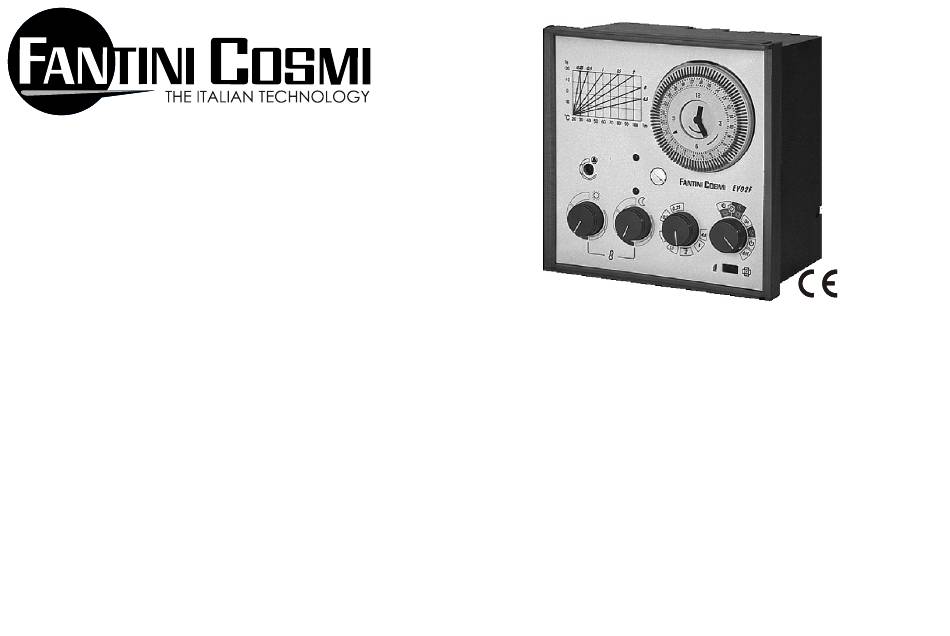

FANTINI COSMI S.P.A.
VIA DELL'OSIO 6
20090 CALEPPIO DI SETTALA (MI)
ITALIA
Phone no. +39 02 95682.222
E-mail: export@fantinicosmi.it
EV02F
ELECTRONIC CONTROL UNIT WITH QUARTZ CLOCK
for the thermoregulation of heating systems by proportional integral
control of mixing valves or by ON-OFF control of burners, daily programming.

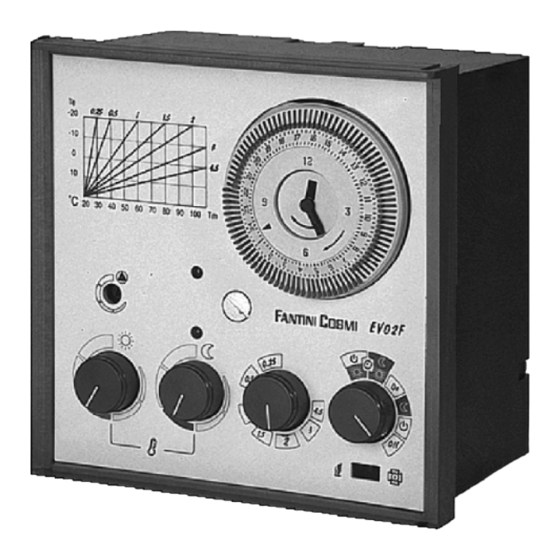

EV02F ELECTRONIC CONTROL UNIT
GENERAL FEATURES
- Electronic control unit for the thermoregulation of
heating systems.
- The devices regulates the delivery water temperature
of the system as a function of the outside temperature
and of the required ambient temperature. Regulation
is performed by direct control of the burner or by
proportional-time control of a 3- or 4-way motor-
operated mixing valve.
- The outside and delivery temperatures are
Fax no. +39 02 95307006
Web: www.fantinicosmi.it
detected by special probes provided for the purpose.
Temperature values are sent to the control unit
which according to the set programming determines
the delivery water temperature value to be sent to
the system to keep the set ambient temperature
constant.
- The control unit is fitted with: quartz clock for daily
programming of ON/OFF times and manual/automat-
ic mode switching. Potentiometer to select system
heating curve with slope adjustable from 0.25 to 4.5.
1
Potentiometer to regulate daytime ambient tempera-
Advertisement
Related Manuals for Fantini Cosmi EV02F
Summary of Contents for Fantini Cosmi EV02F
- Page 1 ON-OFF control of burners, daily programming. detected by special probes provided for the purpose. EV02F ELECTRONIC CONTROL UNIT Temperature values are sent to the control unit GENERAL FEATURES...
-
Page 2: Technical Data
ture (comfort) with parallel translation of the heating curve. Potentiometer to regulate nighttime ambient OVERALL DIMENSIONS temperature (economy). Six-way selector to select the operating program, switch to select burner ON/ OFF control or mixing valve proportional control. Po- tentiometer to regulate the delay in circulation pump shutdown. -
Page 3: Electric Connections
TEMPERATURE PROBES Resistance values as a function of temperature: GENERAL FEATURES EC11 OUTSIDE PROBE DELIVERY PROBES EC12 EC13 - EC-- series temperature probes are the sensors TEMPERATURE RESISTANCE TEMPERATURE RESISTANCE °C Ω °C Ω used by the control unit to get the information requi- - 40 8629 + 20... - Page 4 ON/OFF control (wiring diagram 3). IN THE EVENT OF SYSTEM UNSUCCESSFUL CIRCULATION PUMP CONTROL OPERATION CHECK THE FOLLOWING: EV02F control unit is preset for automatic circulation Supply voltage, that shall be: 230V 50Hz. pump control. Probe circuit, by means of the tester provided for measuring the resistance value.
- Page 5 off the control unit is working regularly, check then the 2 - Wiring diagram for motor-operated mixing servo control and the mixing valve. valves with servo controls powered with voltages other than 230V 50 Hz Check for regular operation of couplers between ser- Supply voltage 230 V - 50 Hz vomotor and mixing valve control stem, and for ab-...
-
Page 6: Front Control Panel
ADJUSTMENTS”) Switch for choosing between burner or power- operated mixing valve control Six-way selector to select the following: FANTINI COSMI EV02F - OFF - always antifreeze: at this position the delive- water temperature is always kept at + 5 °C at least, with whatever position of the other... - Page 7 If the circulation pump is placed on the delivery side, INSTALLATION install the probe downstream the pump. EV02F CONTROL UNIT INSTALLATION Fully loosen the fastening bolt to release the base of 3- OR 4-WAY MIXING VALVE INSTALLATION the control unit. Lever on the slots with a screwdriver Install the mixing valve at boiler top edge level, in to remove the base.
- Page 8 3-WAY ROTOR POWER-OPERATED MIXING EXAMPLES OF HYDRAULIC CONNECTIONS FOR MIXING VALVES VALVE 3-WAY SECTOR POWER-OPERATED MIXING VALVE 4-WAY ROTOR POWER-OPERATED MIXING VALVE...
-
Page 9: Settings And Adjustments
whatever outside temperature (it is recommended SETTINGS AND ADJUSTMENTS 1) INITIAL CONTROLS POSITIONS to check temperature in the afternoon and early in (see paragraph “front control panel”, page 6) the morning since outside temperature changes for sure). at central area (comfort zone). NOTE knob F shall be used to select the required fully rightwards at “MAX”... - Page 10 1 position (nighttime economy/ daytime comfort). - Check the timer and set current time. FANTINI COSMI EV02F If the heating system settings have not been chan- set current time moving the dial clockwise ged with respect to the last winter mode duty, the 2 program ON and OF times using the indicators on control unit is set yet.
- Page 11 If the boiler is not fitted with hot water system, the previous operations are not necessary - the burner shall however be turned off. Fantini Cosmi S.p.A. reserves the right to make what- ever technical and manufacturing modification with- out prior notice.
