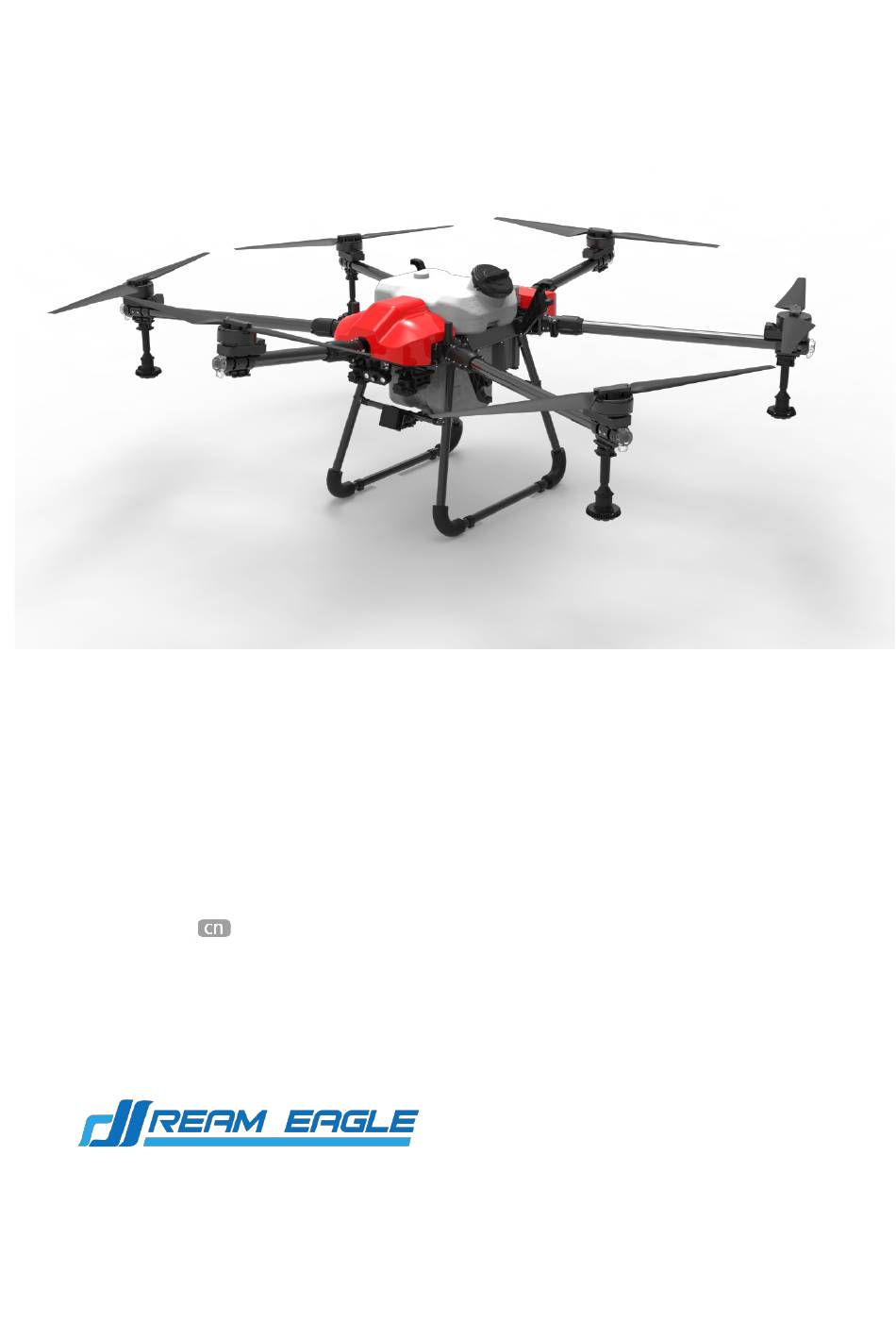

- Page 1 X6-30 Getting Started Guide Introduction to Frame Mounting Version 1.0 Shenzhen DreamEagle Technology Co., Ltd.
- Page 2 X6-30 Agricultural plant protection drone structure quick start guide - rack installation guide To users Dear user, thank you for using Dream Eagle Technology products. In order to ensure safe and smooth use and installation, before using the F-series plant protection drone, we strongly recommend that you carefully read this quick start guide, Introduction to Rack Installation And follow the rules mentioned in this guide.
- Page 3 22 Tail light mount * The X6-30 structure can be applied to the 40-diameter power. According to the difference in power purchase, the structure is different, and the six-axis 20L~40L spraying can be adjusted (customization is required), and the spreading mode can be switched at the same time for corresponding operations;...
- Page 4 X6-30 Agricultural plant protection drone structure quick start guide - rack installation guide Meet the X6-30 plant protection UAV——the whole machine The main structural components of the X6-30 plant protection drone are as follows (the whole machine—the non- standard battery is for graphic reference only): 10 11 (Above) Figure 3.
- Page 5 X6-30 Agricultural plant protection drone structure quick start guide - rack installation guide X6-30 Plant Protection Drone - Frame Packing List The main body of the rack package and the physical display of the accessories package (the rack includes the contents shown in the figure below) Contents include: frame main body;...
- Page 6 X6-30 Agricultural plant protection drone structure quick start guide - rack installation guide machine for wiring, and the order of installing modules needs to pay attention to the front and rear order; rack packing list details As shown in the figure;...
- Page 7 X6-30 Agricultural plant protection drone structure quick start guide - rack installation guide 5. The arm is snap-fitted; it is divided into left L and right R, and the nose is lower and the tail is upper; 6. The water pump fixing seat is installed; the screw package is attached with M4*10 screws for locking; the water...
- Page 8 X6-30 Agricultural plant protection drone structure quick start guide - rack installation guide 9. RTK fixed base installation; RTK needs to be fixed on the matching mounting base first, then install the antenna connector and lock it on the installation position (M3*12), note that 3M double-sided tape can be used to fix the RTK antenna, or you can use an optional Fix the glue by curing;...
-
Page 9: Specifications
X6-30 Agricultural plant protection drone structure quick start guide - rack installation guide Specifications X6-30 Plant protection platform Dimensions：2033*1916*803mm（Expand Size）1247*750*920mm（folded size） Product wheelbase：2153mm Product weight：26.2kg（without battery） 36.2kd（with battery） Waterproof level：Complete machineIP67 Arm size ：37*40mm carbon fiber tube Medicine box volume ：30L Hover time ：Hover for 21 minutes with no load... - Page 10 X6-30 Agricultural plant protection drone structure quick start guide - rack installation guide D isclaimer 1. Before using this product, please read this document carefully. This statement has an important impact on the safe use of this product and your legal rights. Once you use this product, it is deemed that you have understood, understood, recognized and accepted all the terms and contents of this document.
- Page 11 X6-30 Agricultural plant protection drone structure quick start guide - rack installation guide warn Users need to read the complete "Product Manual" and obtain the UAV system approved by Dream Eagle Technology (or approved by current laws, regulations, and policies) License to operate.
- Page 12 These guidelines are subject to update without prior notice. ©Dreameagle Co., Ltd. All Rights Reserved. Shenzhen Dream Eagle Technology Co., Ltd. All rights reserved. The copyright of all information in this user manual (including but not limited to any text descriptions, illustrations, photos, methods, processes, etc.) belongs to Shenzhen Dream Eagle Technology Co., Ltd.
