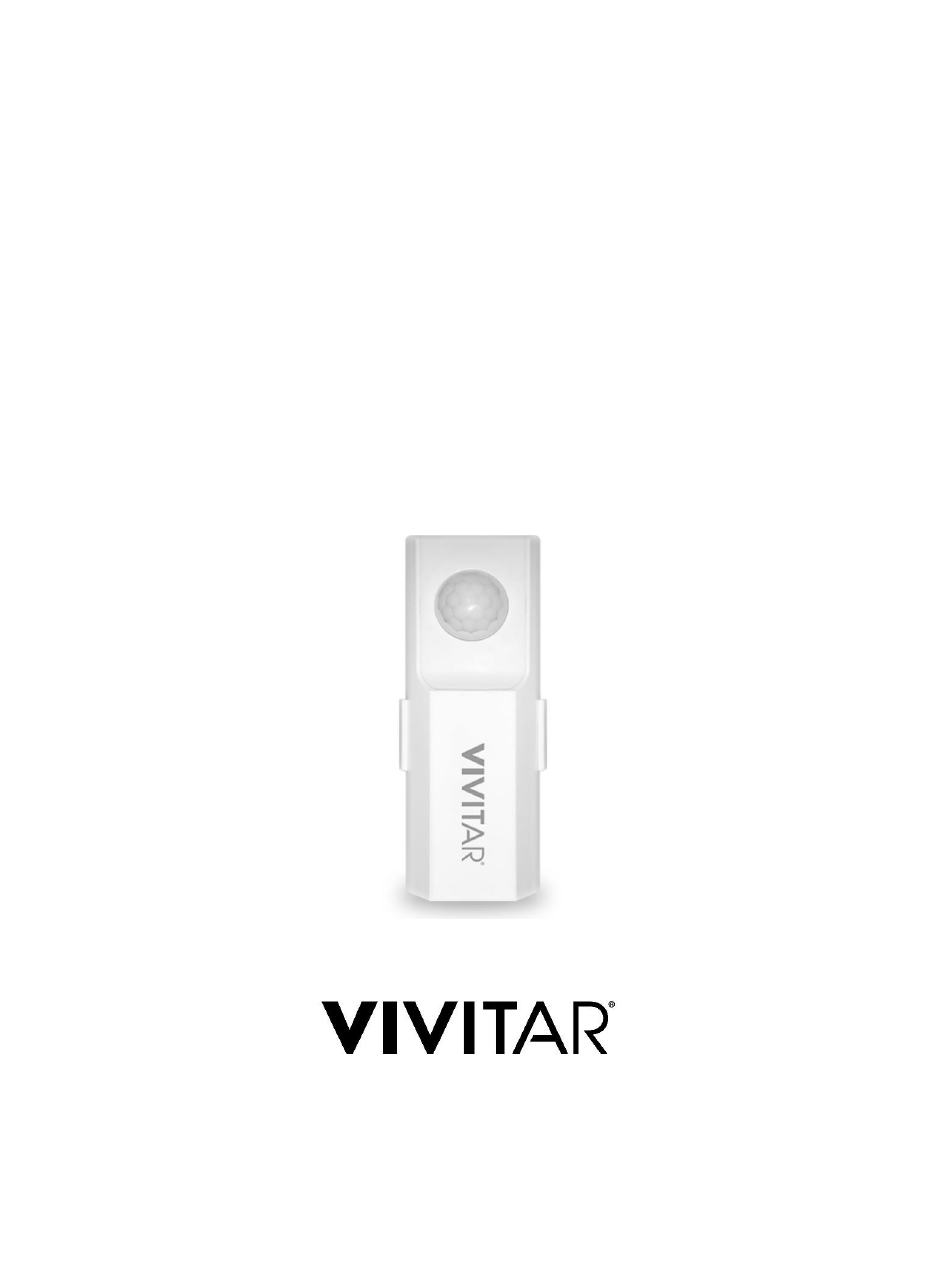

Wi-Fi Motion PIR Sensor

Wireless Smart Sensor

User Manual

Windows and the Windows logo are registered trademarks of Microsoft Corporation.

All other trademarks are the property of their respective companies.

Table of Contents

Need help?

Do you have a question about the WT-09 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivitar WT-09

Page 1 WT-09 Wi-Fi Motion PIR Sensor Wireless Smart Sensor User Manual © 2009-2018 Sakar International, Inc. All rights reserved. Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies.
Page 2: Table Of Contents
Connecting Your Device with the App ................... 4 ....................................4 NTRODUCTION ..................................... 4 UICK VERVIEW ....................................5 NITIAL ETUP Using Vivitar Smart Home Security .................... 13 ....................................13 ASHBOARD ....................................16 .................................... 32 AVIGATION .................................... 33 ENSORS CREEN ......................................36 EVICES ...................................
Page 3: Introduction
In addition, you can use the Vivitar Smart Home Security app to control your IP cameras, lighting, electrical outlets and more. Please read this manual carefully first to get the most out of your Vivitar Smart Home Security Wi-Fi Motion PIR Sensor.
Page 4: How To Install The Application
Make sure your mobile device is connected to a Wi-Fi Network via the Settings of your mobile phone or tablet. Use your mobile phone or tablet to search for Vivitar Smart Home Security in the Google Play Store (for Android OS) or the Apple App Store (for iOS).
Page 5: Connecting Your Device With The App
IP Cameras, electric outlets, power strips and more via any mobile device from anywhere. With Vivitar Smart Home Security, you can see what is going on in and outside your home 24 hours a day, 7 days a week. Receive automatic alerts from your IP Cameras upon detection of motion and sound.
Page 6: Initial Setup
Make sure to enable Wi-Fi on your smartphone or tablet via the settings of your mobile device. LAUNCH MOBILE APP If you have not already launched the app, tap the Vivitar Smart Home Security application icon on your smartphone or tablet to launch the installed app. TUTORIAL quick overview through the app appears.
Page 7 To register and add a new Motion PIR Sensor: 1) From the ‘Devices’ Home screen, tap Add New Device to enter the ‘Add new device’ screen. The list of Vivitar Smart Home Security devices appears. 2) Tap Sensors to enter the list of Vivitar Sensors.
Page 8 3) Tap WT-09 Wi-Fi Motion PIR Sensor to select and register your device. 4) The ‘Register a new device’ screen appears. You can create a new account or if you have already created an account, you can sign in to your existing account.
Page 9 - Tap Create Account. - A ‘Registration complete’ window appears showing that your account has been created successfully. Tap OK to continue. b) Sign in to Existing Account - Group 3 – Sensors: - To sign in to your existing Smart Home Security account, tap Sign In from the ‘Register a new device’...
Page 10 6. ADD NEW DEVICE: CONNECT TO APP The ‘Add new device’ connect instruction screen then appears. PREPARE YOUR DEVICE - Loosen the screws on the battery cover by using the supplied screwdriver to open the battery compartment. - Insert 2 new AAA batteries. Make sure the batteries are placed correctly as per the polarity symbols shown inside the batter compartment.
Page 11 7. ADD NEW DEVICE: DEVICE UID Please scan the Barcode that is on the device or on the device’s hang tag. NOTE: If a message window appears to allow ‘Smart Home Security’ to access the device, please tap on OK to allow access to be able to scan the Barcode. Alternatively, you can enter the devices UID number as seen by the Barcode, then tap Continue.
Page 12 9. CONNECTING STATUS The ‘Connecting’ screen appears displaying the connection progress. Please wait for the indication that the Smart Sensor has successfully been found and connected. 10. ADD DEVICE NAME AND LOCATION The ‘Add to Account’ screen then appears displaying the device image along with the model name and UID number.
Page 13 11. SETUP COMPLETE After setting your device name and selecting a room, tap Done. - A ‘Success’ window then appears, showing that your device has been successfully added to your account. - Tap OK to complete the setup and open the ‘Devices’ screen. - Tap Sensors to open your Sensor’s Dashboard control screen.
Page 14: Using Vivitar Smart Home Security
Using Vivitar Smart Home Security DASHBOARD • Once you have successfully registered and added your device, the ‘Devices’ screen appears. • To access the Motion PIR Sensor Dashboard: Sensors on the ‘Devices’ screen to open the screen displaying your device’s Dashboard controls.
Page 15 The connected Smart Sensor displays the following: 6. Home / Away Mode Control 1. Main Menu 7. Device Location: 2. Back Button Device Name 8. Alerts History 3. Device Battery Status 4. Device On/Off Status 5. Settings ITEM NAME FUNCTION Main Menu Displays the Main Menu options: Devices, Events, Rooms, Settings, Messages, Share, Accounts, Help...
Page 16 NOTE: The last alert appears on the Dashboard. In order to receive Motion PIR alert notifications, please make sure that you have allowed your mobile device to receive notifications for the Vivitar Smart Home Security app in your phone ‘Notifications’ settings.
Page 17: Main Menu
MAIN MENU Tap the Main Menu button to view the following menu options: Devices +, Events, Rooms, Settings, Messages, Share, Accounts +, Help Tap on one of the menu items to view the selected menu’s options. NOTE: All menu options that appear with a + plus symbol can be expanded when tapping on the + plus symbol.
Page 18 Enter the ‘Sensors’ screen displaying the list of registered Sensors. This displays when you have added to the app more than one Vivitar Smart Home Security Sensor. Tap one of the listed sensors to select it and display it in Dashboard view.
Page 19 MULTIPLE DEVICES: ONE DEVICE: If multiple sensors If one device has been added > have been added > enter the ‘Sensors’ automatically Screen. enter the Dashboard view. Tap a Sensor to select the device you want to control. The Dashboard view of the selected device then opens.
Page 20 Devices: Expanded Menu The expanded menu view allows you to easily see the list of your devices and to quickly enter the selected device’s dashboard. 1. Tap the Main Menu button. 2. Then tap the + plus symbol) on the right side of the Devices menu button to expand the list of devices within the Main menu.
Page 21 ONE DEVICE: MULTIPLE DEVICES: EXPANDED VIEW: If one Sensor has If multiple Sensors The expanded view been added > have been added > lists the registered automatically enter the ‘Sensors’ devices. enter the Screen. Tap a sensor to select Dashboard view. Tap a sensor to select it and open the it and open the...
Page 22 NOTE: List of devices subject to change as per update of new devices. IP Cameras Tap IP Cameras to access and control your registered Vivitar Smart Home Security IP Camera(s). NOTE: Please sign in to or create an account in GROUP 1 for your IP Camera.
Page 23 Your events can be saved to your SD Card and to your Cloud. NOTE: More information regarding Events can be found in the User Manual of your purchased Vivitar Smart Home Security IP Camera. 3. ROOMS The Rooms main menu option opens the ‘Rooms’ screen that lists the Room types that have been associated with your added device(s).
Page 24 - Device Menu – Tap on the device menu icon to open a window with the device options. Sensors: Device Options for more information. Tap on a device to select it and view it in the Dashboard screen. NOTE: To change the device’s room name, tap on the Settings button on the bottom navigation bar or Settings from the Main Menu.
Page 25 Tap a device from the list in the ‘Settings’ screen for which you would like to view the settings. The device settings screen for that selected device then opens. The following information appears in the Vivitar Motion PIR Sensor settings screen: • Device Room: Device Name The room and device name are displayed on the top of the screen.
Page 26 The account name (email) appears along with the device’s QR Code. The QR Code contains your account name information so that another user can scan this code from their mobile device in order to share devices via the Vivitar Smart Home Security app.
Page 27 The Share main menu option allows you to share your device(s) with other users that have installed the Vivitar Smart Home Security app. This lets the user have control to view the On/Off status and to change the status of your device.
Page 28 5. ‘SHARE TO’ LIST: After tapping Share, the ‘Share’ screen in your app now displays the list of ‘Shared to” devices which shows the recipient’s account name. DELETE: If you would like to remove the shared account, tap on the Delete button by the Shared account name, then tap Remove to delete the account.
Page 29 7. ACCOUNTS + The Accounts main menu option lists the Vivitar Smart Home Security Accounts as per device Group. Each device must be registered according to the device Group. The ‘Accounts’ option allows you create an account, sign in to your account or sign out of your account.
Page 30 Accounts: Compact Menu Tap the Main Menu button to view the menu options. Then tap the Accounts menu option to open the ‘Accounts’ screen. The ‘Account’s screen lists the account(s) per Account group. From the ‘Accounts’ screen, tap on an account to open the information for that account. The following information appears for each account: •...
Page 31 Devices: Expanded Menu The expanded menu view allows you to easily see the list of device Group Accounts and to quickly enter the selected Group’s Account. Tap the Main Menu button to view the menu options Then tap the + plus symbol on the right side of ‘Accounts’ menu button to expand and show the Groups list of Accounts within the Main menu.
Page 32 8. HELP The Help main menu option displays links to helpful details regarding your device and the Vivitar Smart home Security application. Tap Help from the Main Menu to open the ‘Help’ window. The following list of options appears: About: Tap About to open the window displaying the Smart Home Security copyright and version number.
Page 33: Navigation Bar
Home Security devices. When selected, the navigation button appears in green. Devices: Tap Devices to open the Devices screen. The Devices screen displays the list of Vivitar Smart Home Security devices: IP Cameras, Lights, Outlets, Power Strips, Sensors, Panic Buttons.
Page 34: Sensors Screen
SENSORS SCREEN The ‘Sensors’ Screen is shown when you have more than one Vivitar Smart Sensor registered to the Vivitar Smart Home Security app. A list of your registered sensors appears on this screen. Tap the Devices button on the bottom navigation bar, then tap Sensors.
Page 35 SENSORS: NAVIGATION OPTIONS 1. < Back: Tap the Back button to return to the ‘Devices’ screen. Add Device: Tap Add Device to open the ‘Add new device’ screen and add a new device from the list that appears. 3. Navigation Bar: Tap one of the following options on the Navigation bar to enter the selected screen: Devices, Events,...
Page 36 - Tap Remove to remove the device. A confirmation message appears once the device is removed. • View Tap to enter the device dashboard view. • Settings Tap to view the device’s settings screen. • Share device Tap to open the ‘Share’ screen, which allows you to add recipients that can view and control your device.
Page 37: Devices
DEVICES The ‘Devices’ home screen displays the list of device types that you can control and use via the Vivitar Smart Home Security app. These devices include: IP Cameras, Lights, Outlets, Power Strips, Sensors, Panic Buttons NOTE: List of devices subject to change as per update of new devices.
Page 38 Outlets Tap Outlets to go to the ‘Outlets’ screen or directly to the Outlets Dashboard screen. NOTE: Please sign in to or create an account in GROUP 2 OR GORUP 4 for your outlet. Power Strips Tap Power Strips to go to the ‘Power Strips’ screen or directly to the Power Strips Dashboard screen.
Page 39: Sharing Devices
You can share your Vivitar Smart Home Security devices with other users. SHARE YOUR DEVICE To share your Vivitar Smart Home Security device with someone, please follow the steps below: 1. Tap the following: Menu > Share. 2. The ‘Share devices’ screen opens.
Page 40 REMOVE SHARED DEVICES To remove sharing your device with another user: 1. Tap Menu > Share. 2. The ‘Share devices’ screen opens. Tap on the device name that is being shared. 3. The ‘Share’ window appears: Select the recipient from the SHARED TO list and tap the (Android) or (iOS) to remove your selected device from being shared with that recipient.
Page 41 6. The recipient’s ‘Sensors’ screen displays your 5. The SHARED TO list 4. Enter the recipient’s shared device with a account (email). appears with the Shared icon recipient’s account Alternatively, tap on the Bar (email). Code icon to scan in the recipient’s Account Bar NOTE: To stop sharing your camera with the...
Page 42: Reconnecting Devices
RECONNECTING DEVICES To reconnect your Vivitar Smart Home device to the Vivitar Smart Home Security app: 1. Make sure your device has working batteries and that they are properly installed. 2. Launch the Vivitar Smart Home Security app. 3. Tap Sensors from the ‘Devices’ home screen.
Page 43: Technical Support
Call 1-800-592-9541 in the U.S. or 1-800-006-614 in Australia or visit our website at www.vivitar.com. To receive Warranty service along with the name and address of an authorized product service center, the original consumer purchaser must contact us for problem determination and service procedures.
Page 44 Remark： Product and software are updated periodically. The application interface in this manual are only for example. No extra notification on further changes. For Consumers in Australia Only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
Page 45 Some countries, states or provinces do not allow the exclusion or limitation of incidental or consequential damages or allow limitations on warranties, so limitation or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state or province to province.
