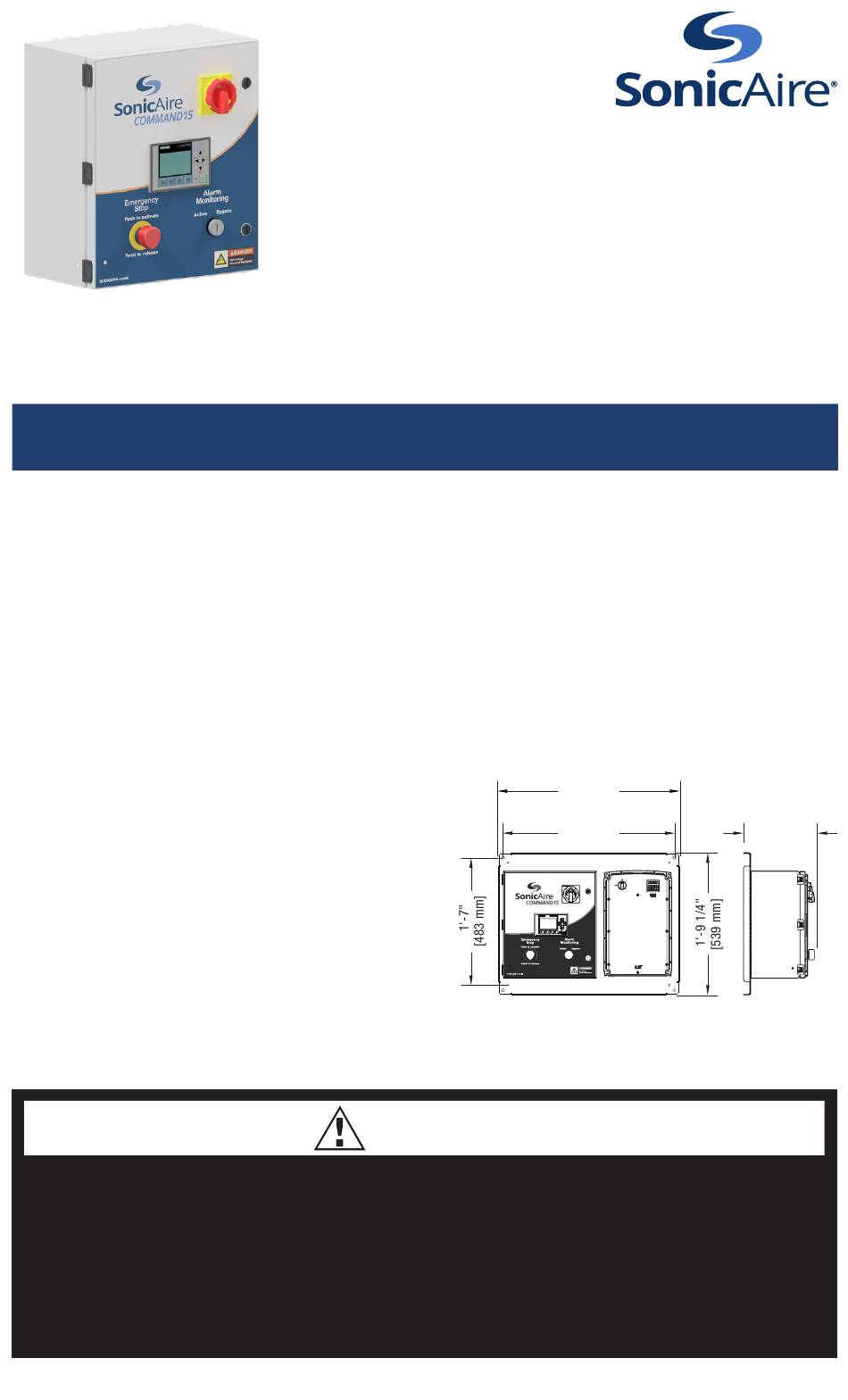

COMMAND15 CONTROL PANEL
OWNER'S MANUAL
Model: Command15

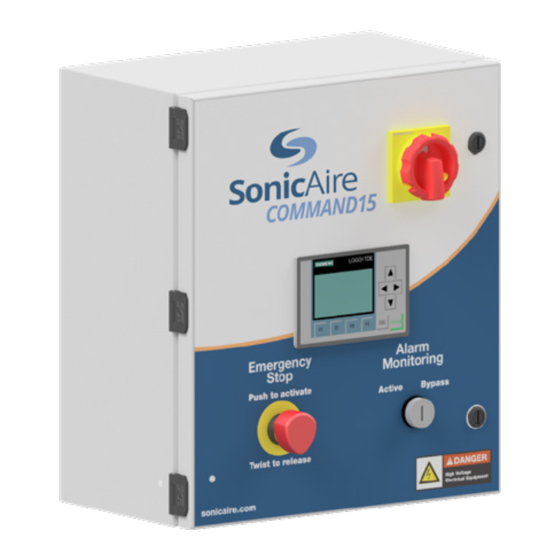

The Command15 Control Panel provides the
facility with a means of automatically locking
out, tagging, disabling, and resetting a group
of SonicAire fans in the event that there is a
fire alarm condition by using a signal from the
facility fire alarm panel.
An E-Stop button on the face of the panel can
be depressed by any employee that observes a
condition that requires immediate shut down of
the SonicAire fans. The panel is also equipped
with a two-position keyed switch which allows
the override of the Fire Alarm signal input for
system testing or maintenance.
The Command15 Control Panel contains a
fifteen (15) horsepower Variable Frequency
Drive (VFD) that can be operated at 30, 40, 50,
and 60 Hz, operated through an LCD panel.
Installation and electrical wiring must be completed by qualified persons in accordance with all applicable codes and standards.
Before servicing or cleaning the unit, disconnect the fan from the power supply and follow proper lock-out-tag-out procedures for your
location. Any cover, guard, or safety device removed for repair must be replaced as originally installed.
Ensure installation securement does not penetrate walls or ceilings where electrical components or wiring could be potentially damaged.
Fan units are not designed or intended to be mounted to movable objects.
All overhead areas must be cleaned and free of dust buildup prior to powering on fan. If fan is not in service, any dust buildup must be
cleaned prior to restarting fan.
SonicAire fans are for the prevention of dust accumulation and are not to be used for declassifying areas with dust accumulation.
1.336.712.2437
SonicAire provides control panels as optional equipment for use
with SonicAire fans. These panels contain a variety of safety and
functional control features for operating your SonicAire fan safely
and efficiently.
partsandservice@sonicaire.com
Table of Contents
NEMA Rating: Type 4
WARNING
www.sonicaire.com
Original Instructions
Please read and save these instructions.
2'-3 1/4"
[692 mm]
2'-1 3/4"
[654 mm]
042821OI/Command15/H
1
1
6
8
9
10
11"
[279 mm]
Advertisement
Summary of Contents for SonicAire COMMAND15
-
Page 1: Table Of Contents
All overhead areas must be cleaned and free of dust buildup prior to powering on fan. If fan is not in service, any dust buildup must be cleaned prior to restarting fan. SonicAire fans are for the prevention of dust accumulation and are not to be used for declassifying areas with dust accumulation. www.sonicaire.com 1.336.712.2437... -
Page 2: Installation
-VAR-OFF -VAR-OFF FANS ON FANS ON System for programming and operating FIRE ALARM ACTIVE FIRE ALARM ACTIVE your SonicAire fan system. Use the F1-OFF/ON CLEAN MAX F1-OFF/ON CLEAN MAX F2-VAR SPEED F2-VAR SPEED information in this section to understand F3-TIMER-OFF-... - Page 3 1.1 to turn fans on and off at maximum speed (60 Hz). FUNCTION 2: Variable Speed Mode Your SonicAire Command15 Panel has a variable speed feature which allows Figure 1.1 you to operate in a reduced power (and Manually turning your fans ON and...
- Page 4 Command15 Owner’s Manual Figure 2.2 Cycling through Variable Speed Modes FUNCTION 3: Activating the automatic timer Use the F3 button to cycle through the on/ off settings for the Daily Timer and Cycle Timer. These settings include: both ON; Daily Timer OFF and Cycle Timer ON;...
- Page 5 Command15 Owner’s Manual days. Use the up/down arrows to select/ unselect days (”-” designates the fans will not run on a particular day when using the automatic timer feature. If letters M T W T F are shown, timer will function on all the days/letters shown).
- Page 6 Command15 Owner’s Manual Figure 4.4 Selecting individual digits in timer ON/OFF function The timers on Page 4 of the timer menu (Figure 4.5) contain two low speed timer options for operating fan separately in lower speed modes (30, 40, 50 Hz). If the...
-
Page 7: Epic Loop
Owner’s Manual EPIC Loop Your SonicAire Command15 Panel has an interconnection feature which creates a working interface between your fan system and your process equipment or plant machinery. This feature will allow you to set up fan-on and fan-off functions once the process equipment interconnect control circuit has been energized. - Page 8 Command15 Owner’s Manual for your fan system. Your EPIC Loop Function (F2) will need to be set to ‘OFF’ for timer function to operate properly. EPIC Loop Process Stop Option The EPIC Loop process stop turns the fans off when a signal is sent to the process control relay.
-
Page 9: Resetting Time And Date
Command15 Owner’s Manual Resetting time and date • From the main menu of the LCD Panel Control System, press the down arrow on the keypad to display the time and date. • Press the ESC button to access the LOGO settings selection screen. Use the up/down arrows on the keypad to highlight the “LOGO! Settings”... -
Page 10: Mechanical Controls
Command15 Owner’s Manual Mechanical controls E-Stop and Bypass Key To operate the Emergency Stop, simply press the button. The E-Stop will illuminate when engaged. To disengage, twist the E-Stop button until it releases. Once released, use the F4 button to resume operation of your fan(s). -
Page 11: Wiring Diagrams
Command15 Owner’s Manual Wiring Diagrams... - Page 12 Command15 Owner’s Manual Subpanel Figure 6.4 Command15 wiring diagram...
- Page 13 Command15 Owner’s Manual Door Figure 6.4 Command15 wiring diagram...
