TVbed CAPELLA Assembly Instructions Manual

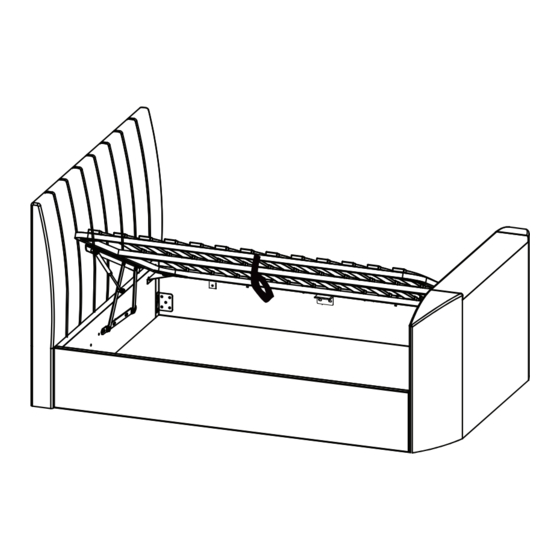

Ottoman tv bed
Hide thumbs

Advertisement

Quick Links

Download this manual
Double & King
Super-King
An instructional video of the operation of the Ottoman Lift Up System is available via YouTube using
the following address: https://youtu.be/hyq4zm7h_yU
Code Matching (pairing): occasionally pairing is lost, perhaps due to atmospheric conditions,
To re-pair - press and hold the code matching button whilst connecting the power by plugging
the mains cable into the control box of the TV lift on the base of the footboard.
Continue to press the button for another 5 seconds then press the up or down button to
successfully match the code.
Regularly check the batteries and if necessary re-place them - x3 pcs AAA size.
230621

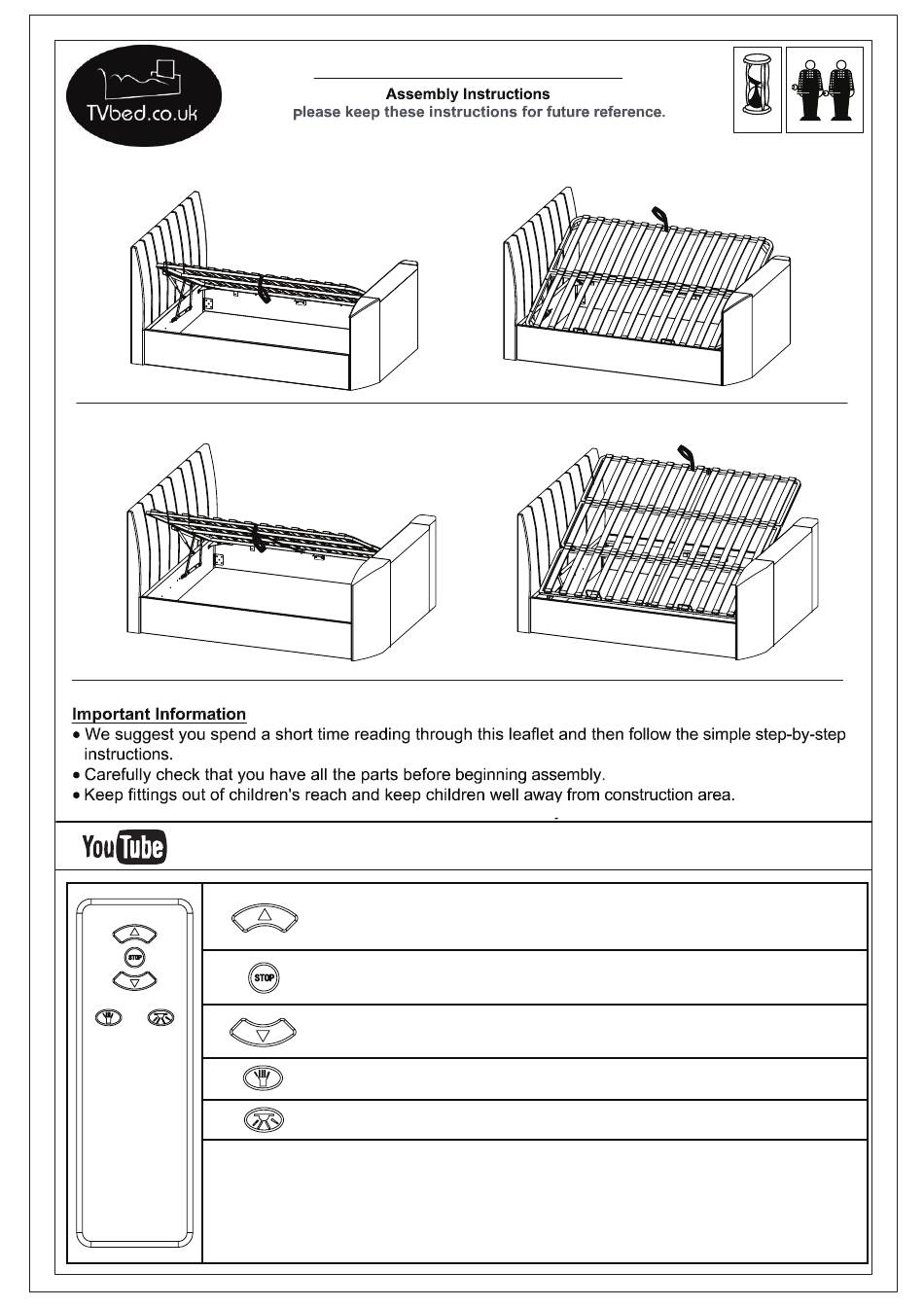

CAPELLA OTTOMAN TV BED
Press once and TV will rise to it's upper working position. Power to the TV will
be connected automatically
Press once and TV Lift will stop.
Press once and TV will go down - as soon as the lower resting position is
reached power to the TV is switched off to prevent it overheating.
Torch
Code Matching
2 Hrs
Page 1 of 20

Advertisement

loading
Need help?

Need help?

Do you have a question about the CAPELLA and is the answer not in the manual?

Questions and answers

Summary of Contents for TVbed CAPELLA

  • Page 1 CAPELLA OTTOMAN TV BED 2 Hrs Double & King Super-King An instructional video of the operation of the Ottoman Lift Up System is available via YouTube using the following address: https://youtu.be/hyq4zm7h_yU Press once and TV will rise to it's upper working position. Power to the TV will be connected automatically Press once and TV Lift will stop.
  • Page 2 CARTON 1 - HEADBOARD CARTON 2 - FOOTBOARD The following items are in an accessory box, inside the TV Compartment within the Footboard Hardware Pack for Bed Assembly A) x24 B) x24 C) x24 D) x1 Bolts (M8x30mm) for fitting side rails (3) to Spring washer for M8 bolts Flat Washer for M8 bolts Allen key for M8 bolt...
  • Page 3 HARDWARE PACK FOR ASSEMBLY OF THE OTTOMAN SLAT FRAME - INSIDE PACK 4 DOUBLE & KING x28 A) x12 DOUBLE & KING x22 Q) x6 SUPER KING SUPER KING Bolts (M8x30mm) for fitting gas-lift mechanisms U(a) & U(b) to headboard & footboard (1&2) Flat washer for M8 bolts Spring washer for M8 bolts M8 nuts for slat frame bolts...
  • Page 4 CHOOSE WHICH SIDE OF THE BED YOU WOULD LIKE TO LIFT UP OPEN FROM LEFT U(a) U(b) CHECK THIS DIAGRAM AND IF ACCESS IS NEEDED FROM THE LEFT SIDE OF BED, FIT BOTH LIFT MECHANISMS TO RIGHT SIDE OF THE HEADBOARD & FOOTBOARD. BOLT INTO THE HOLES MARKED (R) WITH BLUE LABELS.
  • Page 5 OPEN FROM RIGHT U (a) U (b) CHECK THIS DIAGRAM AND IF ACCESS IS NEEDED FROM RIGHT SIDE OF BED, FIT BOTH LIFT MECHANISMS TO LEFT SIDE OF THE HEADBOARD & FOOTBOARD. BOLT INTO THE HOLES MARKED (L) WITH RED LABELS. THE MECHANISMS ARE LABELED U(a) &...
  • Page 6 3 x2 1&2 3&4 1&2 3&4 DO NOT TIGHTEN BOLTS FULLY Page 6 of 20...
  • Page 7 Fit x4 corner brackets (6) 1&2 3&4 100% N.B. SQUARE UP THE BED AND THEN TIGHTEN ALL BOLTS 100% Fit the fabric base cover (4) evenly around the inside of the bed. Page 7 of 20...
  • Page 8 Connect Main Power Lead (G) to your wall socket - for safety, this must be an earthed supply. Press the “UP” button to raise the TV lift. Note: For illustration purposes only, TV connections may vary. TV Power Lead TIP: supplied with your TV BEFORE FITTING THE TV, PUSH CABLES THROUGH...
  • Page 9 TV Installation - Normal Vesa Fixing IF SCREWS ARE SUPPLIED WITH TV, PLEASE USE THOSE IN PREFERENCE Choose a suitable set of hardware Bolt sets Counter-sunk screw Counter-sunk screw sets (M6x12mm) sets (M4x12mm) M8 x 25mm Allen key (2.5mm) Allen key (4mm) Loosen Tighten Page 9 of 20...
  • Page 10 TV Installation - 100x100 Vesa Fixing FIRSTLY: REMOVE THE TELEVISION CROSS-BRACKET FROM THE 100mm LIFTING COLUMN BY REMOVING THE 4 SCREWS FROM THE TWO CLAMPING PLATES IF SCREWS ARE SUPPLIED WITH TV, PLEASE USE THOSE IN PREFERENCE Choose a suitable set of hardware Counter-Sunk screw Bolt sets Counter-Sunk Screw...
  • Page 11 THIRDLY: MAKE THE NECESSARY ADJUSTMENTS Loosen Tighten FINALLY WHEN ALL ADJUSTED SCREW THE TWO CLAMPING PLATES BACK INTO POSITION Page 11 of 20...
  • Page 12 Note: For illustration purposes only, TV connections may vary. Note: For illustration purposes only, TV connections may vary. TV Power Lead supplied with your TV 90º ADAPTOR PLUG IN - KEEP ALL CABLES TIGHT - USE CLIPS & TIES PROVIDED. Keep wires tight - peel off cover from cable clips &...
  • Page 13 TV Power Lead supplied with your TV Press the “DOWN” button to lower the TV lift. If you purchased Double or King size bed, first un-fold metal slat frame (5), fit metal connection plates (W) then follow Stage 13 onwards. Page 13 of 20...
  • Page 14 If you purchased Super King size bed, first un-fold metal slat frame (8 ), fit metal connection plates (W)and cross bar (9) then follow Stage 13 onwards. Lift Support bars & lay on the slat frame Slat Frame Support Bar 1&2 Page 14 of 20...
  • Page 15 SUPER KING DOUBLE & KING Bolt into centre of long holes SUPER KING Carefully lay frame down. Make sure there is an even gap each side of about 8mm, as in the sketch. DOUBLE & KING Hold frame securely then tighten all six bolt sets 100% using spanner (T) &...
  • Page 16 DOUBLE & KING SUPER KING During this next step, the assistant should hold up the slat frame. On side rails (3) slide gas-lift piston stems (X) onto the axles (Y) then fit the flange lock-nuts (S). SMALL GAP over-tighten. A small gap is left so stems can move freely - this is important - see sketch above.

  • Page 17: Technical Specifications

    Note: Be very careful what you store under the bed - the top of an item, like a suitcase or a box, must not touch the slats or they shall be damaged. Maximum storage height is 270mm. : Before moving the slat frame, NOTE mattress must be placed on the slats or the speed of upward movement is very high and may cause injury.
  • Page 18 Always ensure that the ottoman is FULLY opened before accessing the storage area. • Do not exceed the maximum weight as specified in the table below: • Bed Size Min Weight (kg) Max Weight (kg) Capella Double Ottoman King TV Bed Super King Ensure mattress is on before lifting Don’t lift without mattress...
  • Page 19 TV BED SAFETY INFORMATION GENERAL INFORMATION It is very important not to place any vessel containing liquids, e.g. drinks or vase of flowers, on top of the TV footboard which may accidentally spill and enter the TV compartment as this could cause damage to the TV and/or the TV lifting equipment.
  • Page 20 Polyester Fabric. of 14 Kg ". : W98 x H57 x D8cm Periodically wipe with a soft damp cloth or if fabric, dust lightly using a small vacuum cleaner.. We cannot be held responsible for any damage caused to the TV, TV cabling or the TV Bed itself due to incompatibility of any additional equipment installed by the end-user or due to loose and poorly installed cables.
