Furitek IGUANA 20A/40A BRUSHED ESC Manual

For axial scx24 with foc technology

Hide thumbs

FURITEK IGUANA 20A/40A BRUSHED ESC

FOR AXIAL SCX24 WITH FOC TECHNOLOGY

Features:

- Support sensorless brushless DC and brushed DC motor (config via app,

- FOC (Field-oriented control) technology

- Designed for AXIAL SCX24 crawlers.

- 5.5V-1.5A Built-in BEC

- Mini size and light weight

- Super easy programming via App on BOTH Android and IOS

- Firmware update available (bluetooth module required)

- Real-time telemetry up to 10Hz

- Support AAA batteries and 2s liPo battieres with automatic battery type recognition capability

- Ability to run with stock TX/RX or any other TX/RX

Specifications:

- Dimension (mm): 24(L)x12.4(W)

- Weight: about 2.1g

- Battery types: 4 AAA NiMH/2s liPo/ 2s LiOn

- Motor type: Sensored/Sensorless Brushless DC / Brushed DC

- BEC output: 5.5V/1.5A

- Constant Current : 20A

- Burst Current : 40A

- Waterproof : NO

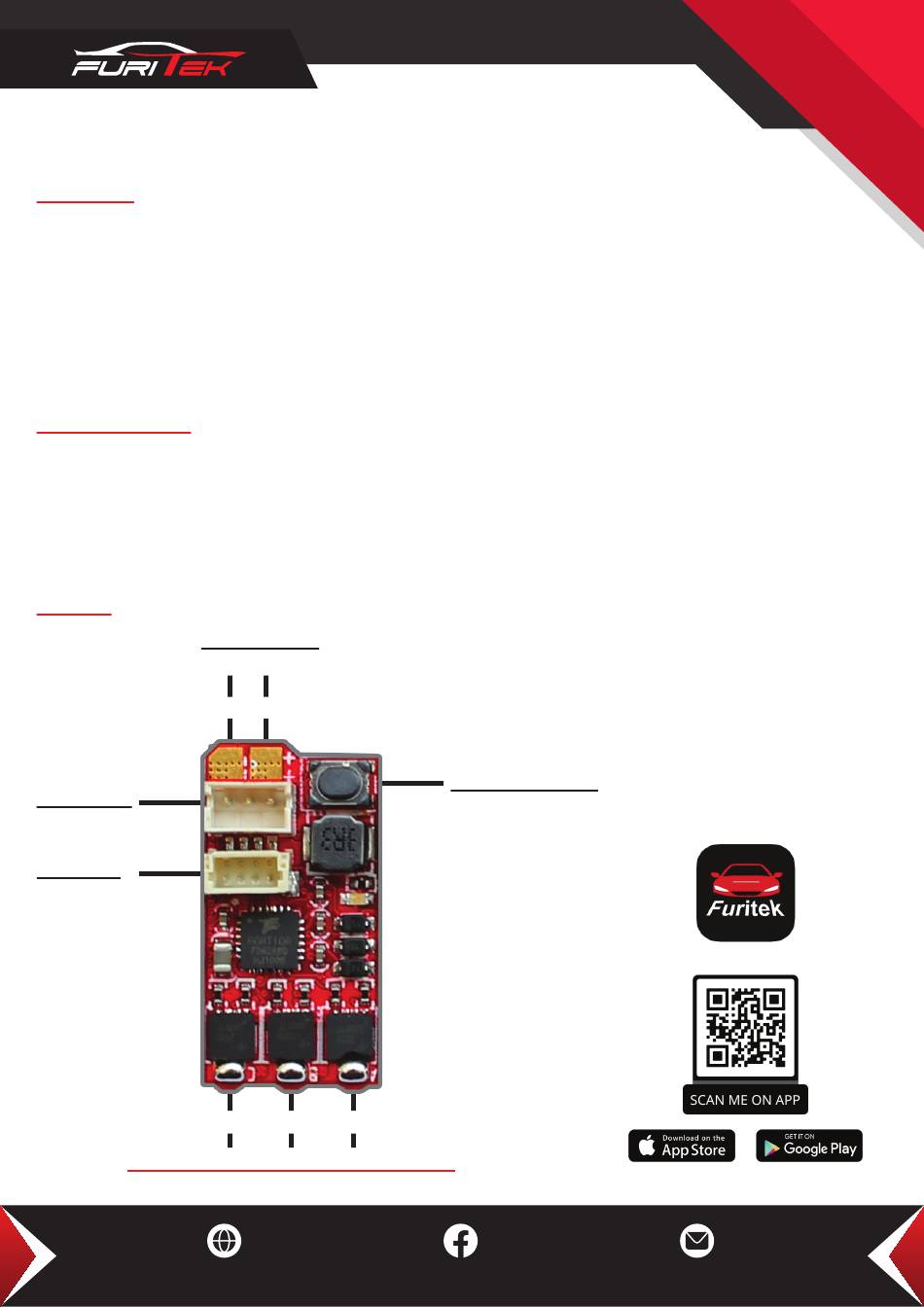

Pinout:

Battery input:

Support AAA/2s liPo batteries

Bat-

ESC Signal

(configure page 3)

Bluetooth

(configure page 4)

Motor output: Default (Brushed motor)

Brushless or brushed motor (configure page 2)

www.furitek.com

Iguana Brushed Manual V1.0

Bat+

www.facebook.com/furitekelectronics

Start/Stop Button

(configure page 3)

default is

brushed)

FURICAR

sales@furitek.com
