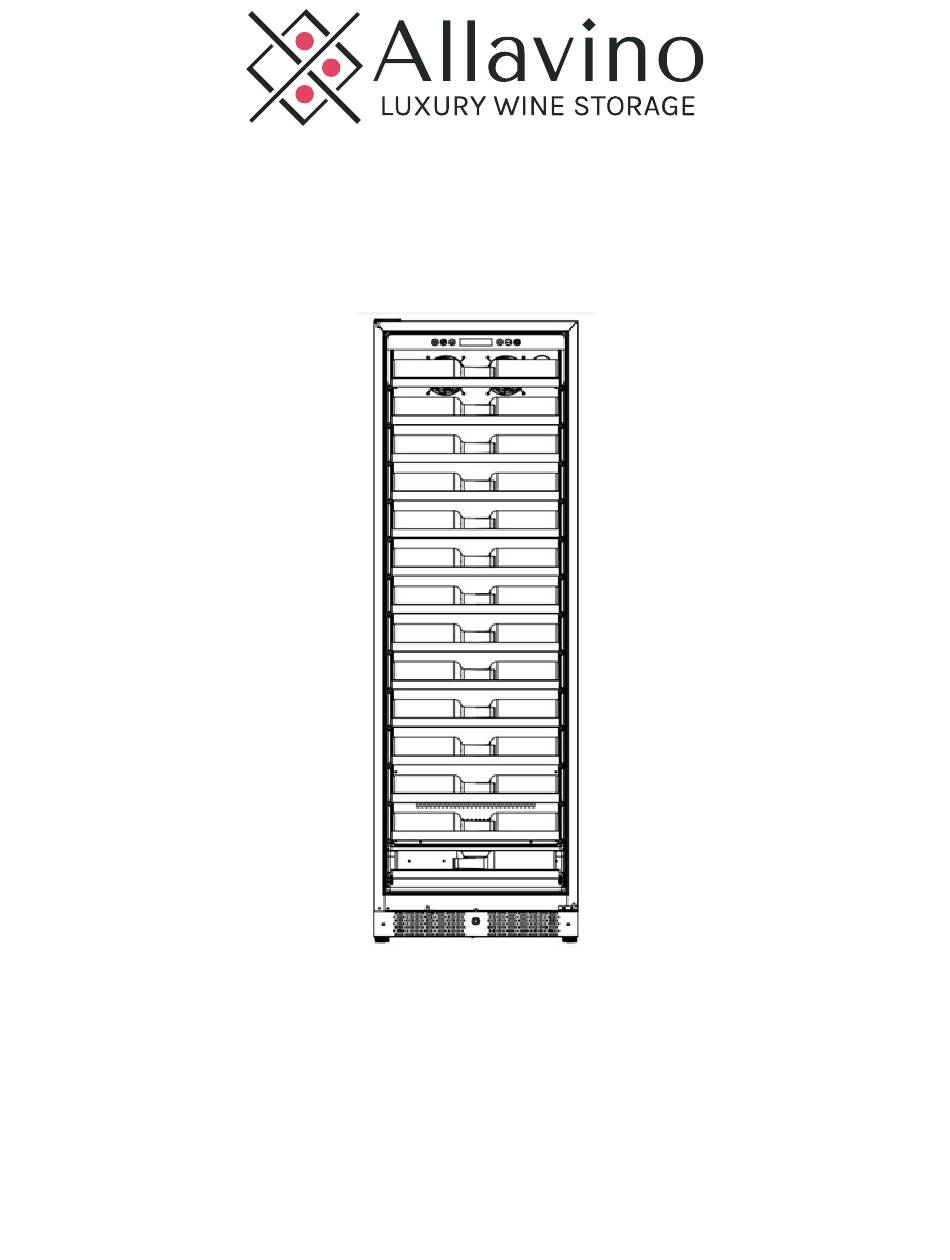

INSTRUCTION MANUAL
BUILT-IN WINE REFRIGERATOR
MODEL: VSW6771S-1
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Allavino has a policy of continuous improvement on its products and
reserves the right to change materials and specifications without notice
ALLAVINO
8520 Miralani Dr., San Diego, CA 92126
www.allavino.com
1
1.888.980.4809
Advertisement
Table of Contents
Related Manuals for Allavino Reserva VSW6771S-1BR-WD
Summary of Contents for Allavino Reserva VSW6771S-1BR-WD
- Page 1 BUILT-IN WINE REFRIGERATOR MODEL: VSW6771S-1 BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Allavino has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice ALLAVINO 8520 Miralani Dr., San Diego, CA 92126 www.allavino.com...
-
Page 2: Table Of Contents
Installation Instructions ............................ Handle Installation ............................ Operation Instructions ............................ Setting Temperature ......................................................Light Settings Wall Bracket Installation ............................ Racking Configuration ............................ Induction of Opening the Door ............................ Care and Maintenance ............................ Troubleshooting ............................ Technical Specifications ............................ Warranty Information ............................ www.allavino.com 1.888.980.4809... -
Page 3: Diagram And Description
Diagram and Description 1. Control Panel 2. Wine shelves 3. Front Ventilation Base 4. Door hinge 5. Adjustable feet 6. Door handle 7. Lock www.allavino.com 1.888.980.4809... -
Page 4: Safety Tips
When no longer using your old wine cellar, take off the door and leave the shelves in place so that children may not climb inside easily. • Do not use solvent-based cleansers or abrasives on the interior as they may damage or discolor the interior. www.allavino.com 1.888.980.4809... -
Page 5: Installation Instructions
• After plugging the appliance into a wall outlet, allow the unit to cool down for 3 to 4 hours before placing wine bottles in the appliance. www.allavino.com 1.888.980.4809... -
Page 6: Handle Installation
For example, placing your unit in extreme cold or hot conditions may cause the interior temperatures to fluctuate. Your Allavino wine unit includes an operating panel on the front of the unit. The operating panel includes several features to operate and control the temperature of the wine refrigerator, including: Power –... -
Page 7: Setting Temperature
Setting Temperature This Allavino refrigerator has a wide enough temperature range to store red, white, or sparkling wine. Different varietals of wine require different temperature settings. Red wine is generally stored between 50 and 65 degrees Fahrenheit, while white wines are stored between 40 and 50 degrees Fahrenheit. White wine can be stored at red wine temperatures for a short period of time (less than three months), and flash chilled before serving. -
Page 8: Light Settings
Light Settings The Allavino wine refrigerator has 9 different color options and 5 different brightness levels to choose from. Color Options: C1=Red, C2=Orange, C3=Yellow, C4=Green, C5=Cyan, C6=Blue, C7=Purple, C8=White, and C9=Rotate All Colors Light Brightness: b1=20%, b2=40%, b3=60%, b4=80%, and b5=100% Factory default setting: Color: C9=All color rotation;... -
Page 9: Wall Bracket Installation
Align the back of the unit with the wall bracket and reinsert the screws back into place through the wall bracket slots (4). CAUTION: This product is not intended to be a substitute for proper supervision. Manufacturer assumes no liability for improper installation or excessive loads placed on screw or brackets. www.allavino.com 1.888.980.4809... -
Page 10: Racking Configuration
The Allavino wine refrigerator has 13 shelves that can hold up to 5 bottles each, with a bottom shelf that can hold an extra 2 bottles for a maximum bottle capacity of 67 bottles. The maximum capacity can be reached with many different bottle sizes and is only affected when adding larger Pinot or Champagne bottles. -
Page 11: Care And Maintenance
• Turn the adjustable leg up to the base to avoid damage. • Be sure the appliance stays secure in the upright position during transportation. • Protect the outside of the appliance with a blanket or similar item. www.allavino.com 1.888.980.4809... -
Page 12: Troubleshooting
The LOWER ZONE temperature is short circuit ERROR CODE HH on screen High-temperature alarm ERROR CODE LL on left and right screen Low-temperature alarm ERROR CODE DO on left and right screen Shows when door is open for 3 minutes and alarms www.allavino.com 1.888.980.4809... -
Page 13: Technical Specifications
Up to 67 Wine Bottles Dimensions 71.5” H x 23.5” W x 16.8” D (18.4“ w/ handle) Weight 225 lbs. Voltage / Frequency 115v / 60 Hz Running Amps 2.1A Operating Temperature 41°F - 64°F Ambient Temperature 32°-100°F www.allavino.com 1.888.980.4809... -
Page 14: Warranty Information
WHAT IS COVERED LIMITED ONE-YEAR WARRANTY: For one year from the date of purchase by the original owner, Allavino will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Allavino will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual. - Page 15 1.888.980.4809...
- Page 16 1.888.980.4809...
