SUN SCIENTIFIC Aero-Wrap User Manual

Compression systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Aero-Wrap™ Compression Systems
Aero-Wrap™
Aero-Wrap™ Flex
User Guide and
Instructions for Use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aero-Wrap and is the answer not in the manual?

Questions and answers

Summary of Contents for SUN SCIENTIFIC Aero-Wrap

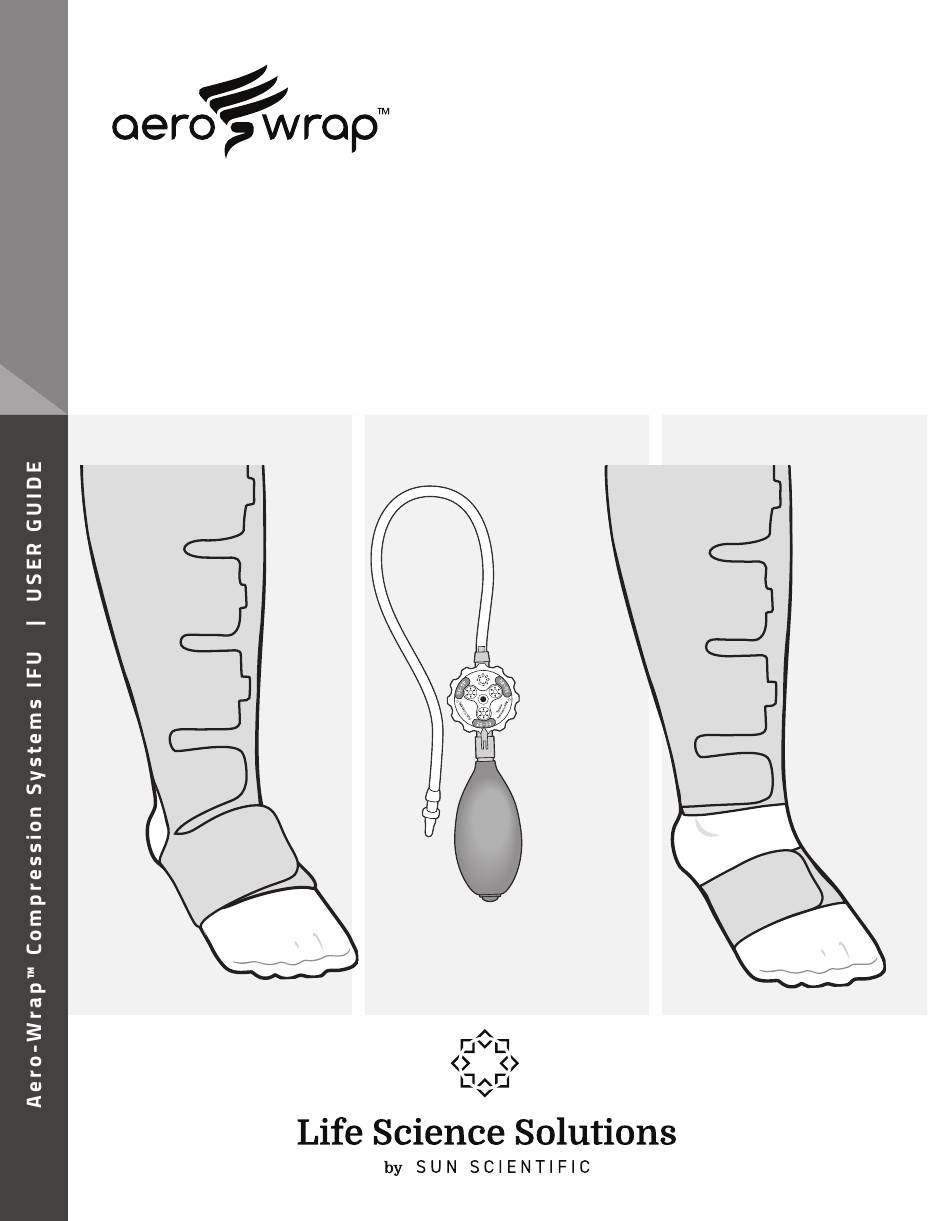

  • Page 1 Aero-Wrap™ Compression Systems Aero-Wrap™ Aero-Wrap™ Flex User Guide and Instructions for Use...

  • Page 3: Table Of Contents

    2.1 Applying Aero-Wrap™ ........6...

  • Page 4: Before You Get Started

    1.5. • Aero-Wrap™ and Aero-Wrap™ Flex come in unilateral (single leg) and bilateral (two leg) configurations. • Each Aero-Wrap™ system contains: •...

  • Page 5: How To Contact Sun Scientific

    AeroGauge™ Foot Compression Strap How to Contact Sun Scientific. If you have questions about your Aero-Wrap™ please contact Sun Scientific: Customer Service: Toll-free (U.S. only) at 855.656.5656 Monday–Friday, 9:00 a.m. – 5:00 p.m. EST. You may also email us at info@sun-scientific.com.

  • Page 6: Safety Precautions

    • Care should be taken to use proper footwear when using Aero-Wrap™ while walking/doing activities. Failure to do so can cause damage to the bottom of Aero-Wrap™ and could be a potential slipping hazard to the user.

  • Page 7: Contraindications

    Contraindications. Aero-Wrap™ should not be used if you have one or more of the following conditions: • Decompensated acute heart failure • Severe peripheral arterial disease (critical limb ischemia including ischemic rest pain, arterial wounds, or gangrene) • Acute thrombophlebitis, acute deep venous thrombosis •...
  • Page 8 If you have a question, please consult a physician before using this product. • The compression applied by Aero-Wrap™ should never be painful or be uncomfortable. If you experience discomfort, reduce the compression level or remove Aero-Wrap™ systems.

  • Page 9: Operating Instructions

    Attached Under-Sock Detached Under-Sock Slots to snap in Under-Socks Heel opening Foot portion Aero-Wrap™ inside view 1. From a comfortable seated position hold Aero-Wrap™ so that the hook and loop straps are open.
  • Page 10 Without the attached Under-Sock - Step your heel into the triangular opening as shown below. (Aero-Wrap™ should not be worn directly on your skin. If your physician has provided any wound care instructions, they should be followed first). Attached Under-Sock...
  • Page 11 Aero-Wrap™ being secured Fully Applied Sleeve 3. Optional: Trim the foot strap. Aero-Wrap™ has a long foot strap to accommodate different foot sizes. If the foot strap is too long it can be trimmed to reduce excess material by following the instructions below: 1.

  • Page 12: Applying Aero-Wrap™ Flex

    Detached Under-Sock Slots to snap in Foot Under-Socks Compression Strap(s) Aero-Wrap™ Flex inside view 1. From a comfortable seated position hold Aero-Wrap™ Flex so that the hook and loop straps are open. Customer Service Toll-Free: 855 .656 .5656 (US Only)
  • Page 13 Work your way up by securing each strap with the elastic portion hugging the back of your calf. (Aero-Wrap™ Flex should not be worn directly on your skin. If your physician has provided any wound care instructions, they should be followed first).
  • Page 14 Attached Under-Sock Detached Under-Sock Aero-Wrap™ Flex proper orientation 3. Optional: Foot Compression Strap(s). Aero-Wrap™ Flex includes an optional elastic Foot Compression Strap(s). To apply: Over the included Under-Sock or your chosen liner, open the strap with the writing face up and position it under the arch of your foot.

  • Page 15: Inflating Aero-Wrap™ And Aero-Wrap™ Flex

    Having this space allows the chambers to appropriately inflate to provide air compression. If you intend to wear a shoe while wearing Aero-Wrap™, put the shoe on prior to inflating the sleeve. Aero-Wrap™ and Aero-Wrap™ Flex are inflated with the AeroGauge™...
  • Page 16 IMPORTANT INSTRUCTION: It’s recommended to start gradually with the compression level. Begin at the 20–30 mmHg option and check your leg(s) for any reaction after two hours of use. Gradually increase the duration and compression level, if desired. Consider if your physician or health care professional may have advised you on the desired compression level for you and your condition.

  • Page 17: Deflating Aero-Wrap™ And Aero-Wrap™ Flex

    1. The first way is to locate the valve cap on the side of the sleeve on both Aero-Wrap™ and Aero-Wrap™ Flex (the same place you inserted the pump to inflate the chambers). Flip the cap upside down and press the tip of the cap into the valve until the compression has been released.

  • Page 18: Optional: Using The Extension Panel

    Optional: Using the Extension Panel Aero-Wrap™ and Aero-Wrap™ Flex can be adjusted with an Extension Panel (purchased separately) which can adjust the shape or width of the sleeve for patients who do not fit within the traditional product measurements. The Extension Panel is attached with hook to the sleeve and can be angled to provide extra width where required.

  • Page 19: System Cleaning And Care

    • Do not dry clean. • Do not iron. • Do not autoclave. Aero-Wrap ™ and Aero-Wrap™ Flex can be cleaned, as needed, using a damp cloth and mild household soap or laundry detergent, and hung to dry. Under-Sock(s) can be cleaned in the washing machine with laundry detergent.

  • Page 20: Warranty And Service Information

    Our warranty service to the system offers the following coverage • Aero-Wrap™ and Aero-Wrap™ Flex: 90 Days Sun Scientific Inc. warrants its Aero-Wrap™ systems to be free from defects in workmanship and materials for the periods listed above from the date Device is delivered to the original purchaser (“Warranty Period”).
  • Page 21 WHETHER OR NOT THAT PRODUCT OR DEVICE IS COVERED BY ANY EXPRESS WARRANTY CONTAINED HEREIN. • IN NO EVENT SHALL SUN SCIENTIFIC BE LIABLE FOR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, USE OR TIME INCURRED BY PURCHASER OR END USER).
  • Page 22 REF . Aero-Wrap™ Flex, Unilateral, Small Kit MS-SF Aero-Wrap™ Flex, Unilateral, Medium Kit MS-MF Aero-Wrap™ Flex, Unilateral, Large Kit MS-LF Aero-Wrap™ Flex, Unilateral, XLarge Kit MS-XLF Aero-Wrap™ Flex, Bilateral, Small Kit MSB-SF Aero-Wrap™ Flex, Bilateral, Medium Kit MSB-MF Aero-Wrap™ Flex, Bilateral, Large Kit MSB-LF Aero-Wrap™...

This manual is also suitable for:

Aero-wrap flex
