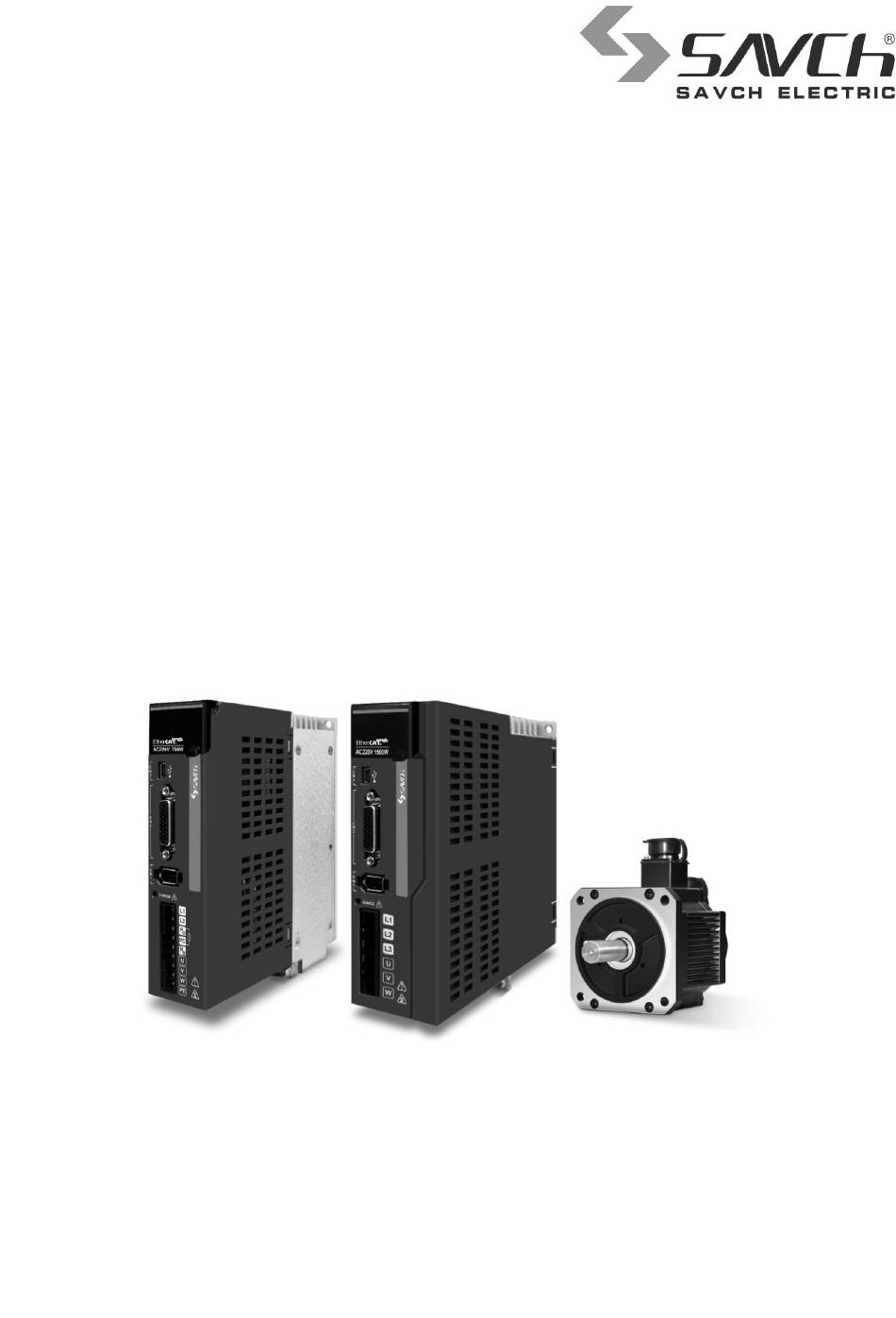

- Page 1 SDV3- E Series servo system Quick manual...
-
Page 2: Safety Precautions
●To check whether there are damaged parts during transportation and deliver. If there are, do not connect with power. If any of the above checkpoints are not satisfactory, contact your SAVCH ELECTRIC representative for a quick resolution. 3. Model description... - Page 3 4. Servo drive dimension Size1 Unit:mm SDV3-2S0.4E~2S0.75E Size2 Unit:mm SDV3-2S1.0E~2S1.5E SDV3-4T0.75E~4T2.0E...
- Page 4 5. Basic wring diagram SDV3-2S0.4E~2S0.75E Installation Notes: 1.Check the L1,L2 power and connecting wire. 2.Check the servo motor output U, V, W terminal phase wires (Unable to run when the connection is wrong). 3.External connected regeneration resistor is the selective spare, adopt according to the actual needs. 4.CHARGE indicator is on means that the power is on.
- Page 5 SDV3-2S1.0E~1.5E/4T0.75E~2.0E Installation Notes: 1.Check the L1,L2,L3 power and connecting wire. 2.Check the servo motor output U, V, W terminal phase wires (Unable to run when the connection is wrong). 3.External connected regeneration resistor is the selective spare, adopt according to the actual needs. 4.CHARGE indicator is on means that the power is on.
- Page 6 6. Interfaces 6.1 SDV3 Series TE terminal Terminal Name of signal Function mark Connect to external AC power. Single phase AC220V -15%~+10% 50/60Hz (connect to L1,L2) Main circuit power supply Three phase AC380V -15%~+10% 50/60Hz DC bus positive terminal When using an external regenerative resistor, a regenerative resistor is added between the Pc and P+ terminals.
- Page 7 6.3 EtherCAT port The dual RJ45 terminal of the SDV3 E series servo drive is located at CN4 and CN5. CN4 is the EtherCAT network input port, and CN5 is the network output port. 7. EtherCAT 7.1 Communication specification Item Specification Physical layer 100BASE-TX...
- Page 8 ESI files and more information about SDV3-E series servo drivers and servo motors can be downloaded from the Savch website (www.savch.net) or obtained by scanning the QR code below. Thanks for choosing SAVCH servo system, if you have any questions about our products or services, please let us know!
