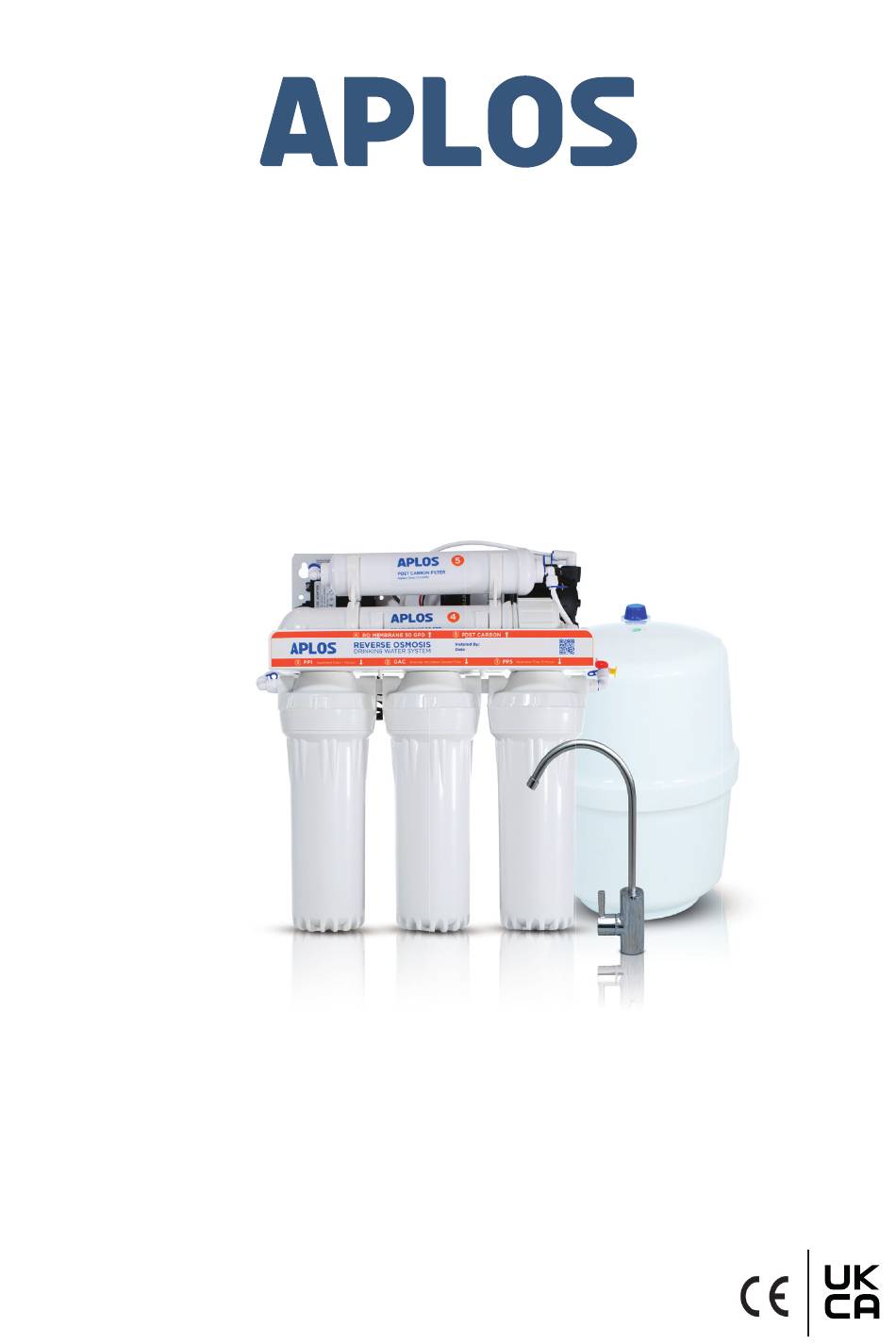

- Page 1 Instruction Manual 5 Stage Reverse Osmosis Drinking Water System, 50gpd Manufactured for EPS Group aplos.ie...
-
Page 2: Table Of Contents
Contents Pages Section Table of Contents Introduction Feed Water and Operations Requirements Product Specification Installation Diagram Installation Instructions Installation Steps Operational Guidelines Filter Replacement Guide Membrane Replacement Guide Troubleshooting Warranty... -
Page 3: Introduction
Ensure that the manual is kept in a safe place for reference. The system must be properly installed and serviced in accordance with the in- structions. We recommend that the system is installed by a trained professional. Unpumped Model R0-N5050 Pumped Model R0-5050 For households with inlet water pressure For households with inlet water pressure <3 bar... -
Page 4: Feed Water And Operations Requirements
2. Feed Water and Operations Requirements To achieve the optimal performance, it is highly recommended to use this system within the following operational parameters. Municipal or pre-treated Water Supply well water Main Pressure (no booster pump), bar 3 - 6 Main Pressure (booster pump installed), bar 2 - 4.5 Pressure Tank, bar... -
Page 5: Product Specification
3. Product Specification 1) System Rack Carbon Post-Filter Auto shut-off valve Membrane Housing Filter Head Housing Options: Booster Pump 2) Pressure Tank 4) Feed Water Adapter 3) Drinking Water Faucet... - Page 6 3. Product Specification 7) Set of 5) Feed Valve 6) Tank Valve 8) Drain Saddle coloured tubes 11) Reverse Osmosis 9) Set of pre-filter cartridges 10) Housing 50 GDP membrane Wrenches 12) Flow Restrictor 13) Locking clip: accessory securing push-fit connections from inadvertent disconnection in easily accessible locations...
-
Page 7: Installation Diagram
4. Installation Diagram 1) Model RO-N5050 Non Pumped 5-Stage Reverse Osmosis Drinking System Black Tube Red Tube 2) Model RO-5050 Pumped 5-Stage Reverse Osmosis Drinking System 220V Black Tube Red Tube... -
Page 8: Installation Instructions
5. Installation Instructions BEFORE INSTALLATION CAREFULLY READ INSTRUCTIONS This product should be used with cold water supply only! 1) Check that all parts are in the package. 2) Before installation, please check incoming water pressure, tank pressure and inlet water temperature. In certain installations the use of a PRV valve and surge vessel may be required. -
Page 9: Installation Steps
6. Installation Steps Shut off water supply in your kitchen or whole home and open water tap where you are about to install the system (on your kitchen sink) for 1 min- ute to relieve pressure in the system, and then close it. Screw the feed water adapter 4 into the cold water plumbing. - Page 10 6. Installation Steps Tap Installation To install drinking water faucet drill 12.5 mm (1/2”) diameter hole for single way tap in a convenient location at the sink or countertop. Caution! metal shavings can damage your unit, remove them carefully as soon as you have drilled the hole.
- Page 11 6. Installation Steps Select spot where you are going to install the fi lter andmake two holes. The distance between the holes in the wall must precisely correspond to that between the holes in the bracket. Allow for at least 100 mm (3.9”) gap between the bottom of the fi lter and fl oor.
- Page 12 6. Installation Steps Leave the feed valve 5 and purified water faucet 3 open for 30 minutes. Then open the tank valve 6. Close the faucet 3 and carefully check all connections for leaks. CAUTION! The first week after installation, check the system daily for leaks, do it periodically in the future.
-
Page 13: Operational Guidelines
7. Operational Guidelines When using the system for the first time, let purified water drain from the full water pressure tank. It is highly recommended to replace filter cartridges regularly to ensure high quality of water purification. It is recommended that you use the system at least twice a week to prevent microbiological contamination caused by the equipment lying idle for an extended period of time, which in turn might cause odors in the water. -
Page 14: Filter Replacement Guide
8. Filter Replacement Guide Shut off feed valve 5 and tank valve 6. CAUTION! Dissemble while under water pressure can result in flooding! Wash your hands with antibacterial soap. Unscrew with the sump wrench 10 first and second sumps in water flow direction (right to left). -
Page 15: Membrane Replacement Guide
9. Membrane Replacement Guide Turn off water supply to the system (feed valve 5), shut off the tank valve 6. Open the purified water faucet 3 to relieve permeate pressure. Disconnect the white tube from the inlet in membrane housing cap. Unscrew the membrane housing cap. -
Page 16: Troubleshooting
10. Troubleshooting Problem Cause Solution Fitting leak Tube is not joined tightly Remove and rejoin the tube Drain saddle leak Drain saddle is not in- Reinstall drain saddle as stalled described in paragraph 4.2 properly in this manual Pre-filter sump leak O-ring seal is missing or Check that the O-ring seal misaligned... - Page 17 10. Troubleshooting Problem Cause Solution The system is constantly Pre-filter cartridges are Replace pre-filter cartridges in operation mode clogged (water is drained Membrane is clogged Replace membrane continuously) Missing or misplaced Flow restrictor must be flow restrictor installed in the tube running from membrane housing to drain.
-
Page 18: Warranty
11. Warranty We hope that this product will serve you long and let you and your family enjoy high quality pure drinking water. Product warranty period is 12 months from the date of purchase. We guarantee that reverse osmosis water drinking system does not contain workmanship and material defects and no such defects will arise within warranty period from the date of purchase. - Page 19 Notes _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________...
- Page 20 Manufactured for EPS Group aplos.ie...
