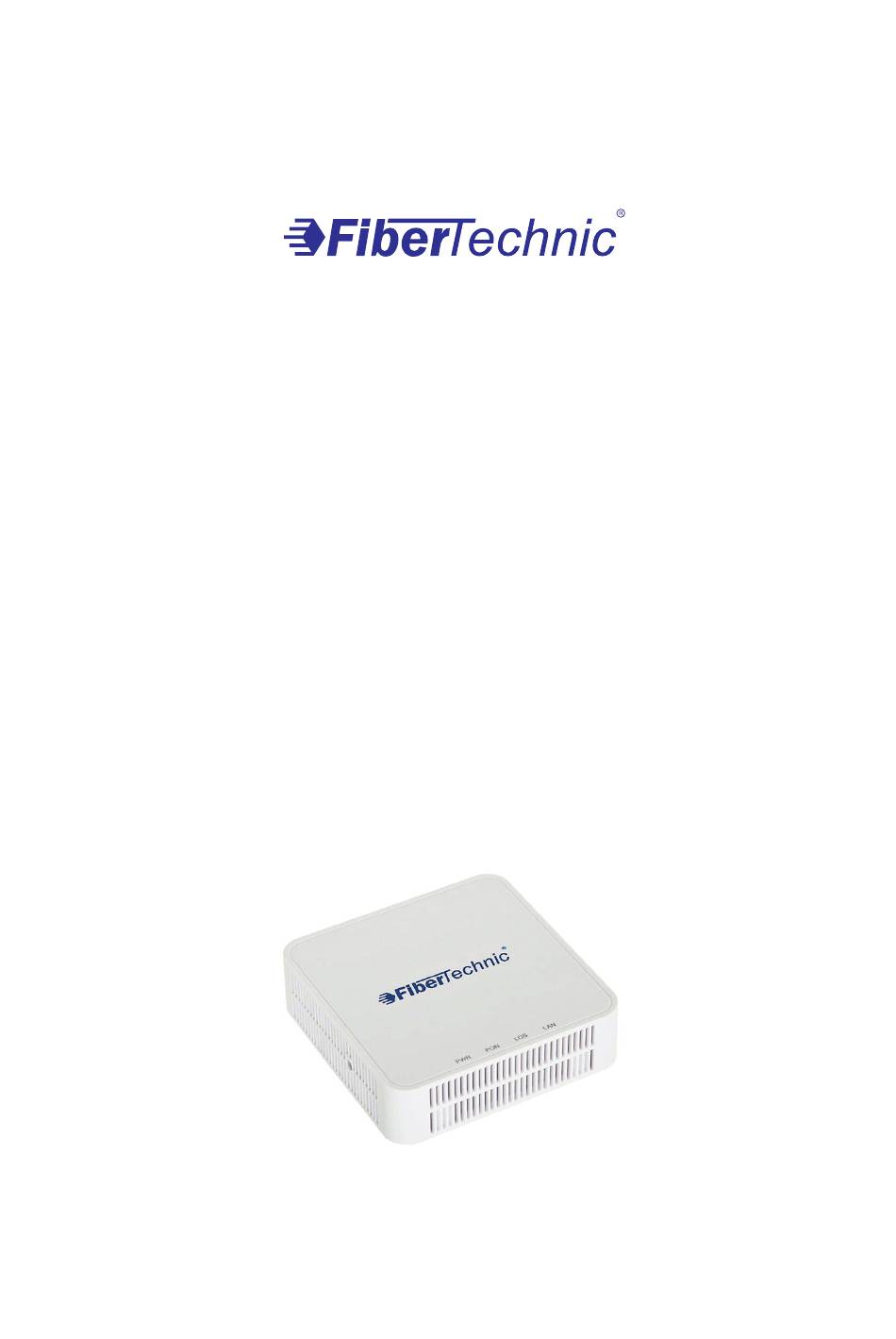

  • Page 1 User Manual v. 3.0 FiberTechnic® Ftech G-01...

  • Page 2: Table Of Contents

    DATASHEET V3.0 Contents 1 Note ...............................1 1.1 Installation Precautions ......................1 1.2 Precautions for Use .......................1 2 Introduce ............................3 2.1 Product Feature ........................3 2.2 Environmental Requirements ....................4 2.3 Product Operation Introduction ....................4 2.4 Product Interface Definitions ....................5 2.5 Product LED Definitions ......................
  • Page 3 DATASHEET V3.0 6.2 Broadband Internet Access In Bridge Mode ..............21 6.3 View Broadband WAN Status .................... 21 6.4 Delete Internet WAN Connection ..................22 7 ONU LAN configuration ......................22 7.1 LAN IP Address Configuration ..................23 8 Multicast / IPTV Service Basic Settings ..................24 9 ONU Device Management ......................

  • Page 4: Note

    DATASHEET V3.0 Note 1.1 Installation Precautions Do not near flammable or conductive items, high temperature, direct sunlight or moist  environment, or on PC chassis, and check whether other home equipment placed around stability Check the cable line. Test and confirm the ac or dc input voltage in the range of allowable, ...
  • Page 5 DATASHEET V3.0 Unplug the power supply before cleaning equipment. Use a soft dry cloth cleaning  equipment, do not use the liquid or spray. Do not use this product connected to any electronic products unless got our  engineer allow. because any wrong connection may cause electricity or fire danger. Shenzhen C-Data Technology Co., Ltd.

  • Page 6: Introduce

    DATASHEET V3.0 Introduce The double-mode series ONU is GPON/EPON adaptive terminal products to meet the telecom, radio and television FTTH fiber to the home multi-service access. This series of products based on mature and stable, cost-effective Gigabit GPON/EPON technology, integration Gigabit and Fast Ethernet switching technology and powerful routing and forwarding technology.

  • Page 7: Environmental Requirements

    DATASHEET V3.0 Support managed by different manufacturers OLT work as SNMP-agent. Easy to  install and maintain Provide a variety of fault alarm function, easy to fault diagnosis  Support AES-128 decryption, support key generation and switching  Support DBA technology and priority Dual management model to ensure ...

  • Page 8: Product Interface Definitions

    DATASHEET V3.0 2.4 Product Interface Definitions 2.5 Product LED Definitions Indicator Description On: Ethernet connection is normal; Blinking: Data is being transmitted through the LAN port status Ethernet port; Off: Ethernet connection is not set up; On: Optical power lower than receiver XPON optical signals sensitivity ;...

  • Page 9: Network Application

    DATASHEET V3.0 2.7 Network Application ONU Local WEB login 3.1 ONU and PC physical Connection a) Connect your computer's local network card to the LAN port or ETH port of the ONU via a network cable. b) Set the IP address of the computer's local network card to 192.168.101.X (X: 2-254).

  • Page 10: Computer Access Onu Local Web

    DATASHEET V3.0 3.2 Computer Access ONU Local WEB In the case # 3.1 computer can communicate with the ONU, open the computer's Web browser (IE, Firefox, google), copy and paste the ONU access URL: http: //192.168.101.1, pop-up as follows ONU prompt landing page: adminisp adminisp Enter the ONU super login user:...

  • Page 11: Onu Registration Information Configuration(When Adaptive To Gpon Mode)

    DATASHEET V3.0 After entering the main interface of the ONU, the ONU can be set up further. For details, see the following setup guide. ONU Registration Information Configuration(When adaptive to GPON mode) 4.1 ONU Registration Status View web login ONU select the Status -> PON inform, you can check whether the ONU registered successfully: 4.2 ONU Optical Power Information View web login ONU select the Status ->PON inform, you can view the ONU input...

  • Page 12: Onu Registration Loid Configuration

    DATASHEET V3.0 and output optical power information: 4.3 ONU Registration LOID Configuration The LOID of the ONU is mainly applicable to the authentication mode of LOID and LOID + Password. General ONU authentication mose is SN, and rarely use the LOID authentication mode, so normal circumstances do not need to configure the LOID.

  • Page 13: Onu Registers Sn Configuration

    DATASHEET V3.0 4.4 ONU Registers SN Configuration The SN of the ONU is mainly applicable to the OLT SN authentication mode by default. Sometimes it may be related to the problem of compatibility, need to modify the default SN of the ONU, you can refer to the following ways to modify, SN by 4 characters prefix (letters) + 8 ASCII code.

  • Page 14: Onu Optical Power Information View

    DATASHEET V3.0 5.2 ONU Optical Power Information View web login ONU select the Status ->PON inform, you can view the ONU input and output optical power information: 5.3 ONU Registration LOID Configuration The LOID of the ONU is mainly applicable to the authentication mode of LOID and LOID + Password.

  • Page 15: Internet Basic Configuration

    DATASHEET V3.0 can set and view the ONU LOID and password: 2.After completing the LOID and password settings, you can click the "Apply" button below to complete the setup. Internet Basic Configuration ZTE ONU series of products support route function, Internet can work by route mode or bridge mode, the difference between the two modes are as follows: Routing mode Broadband Internet access: ONU as a home gateway equipment, ONU on route mode...

  • Page 16: Routing Mode Broadband Internet Settings

    DATASHEET V3.0 6.1 Routing mode broadband Internet settings 6.1.1 PPPoE broadband Internet access in routing mode 1. web login ONU and select WAN Configuration->WAN->NEW, and then set the following parameters: 【Connection Name】Enter a qualified name. 【Enable】Check this option,It makes the WAN you configured take effect 【WAN Mode】Select “Route”.
  • Page 17 DATASHEET V3.0 【As default gateway】Choose to tick according to your needs Note: ZTE solution ONU series of products is no port binding function, because the ONU is SFU (pure data)+ Routing, the ONU either works in SFU mode, or is working in routing mode.

  • Page 18: Dhcp Broadband Internet Access In Routing Mode

    DATASHEET V3.0 2. After the above configuration, click "Apply" button to complete the PPPoE broadband Internet access settings: 6.1.2 DHCP broadband Internet access in routing mode 1. web login ONU and select WAN Configuration->WAN->NEW, and then set the following parameters: 【Connection Name】Enter a qualified name.
  • Page 19 DATASHEET V3.0 vlan planning for broadband Internet access, this option is not to choose. 【Vlan ID】This will appear after the selection "tag", and the vlan id of the network plan should be filled in. 【802.1p】 Set the priority of vlan, The same as "enable Vlan", depending on the network vlan planning to configure.
  • Page 20 DATASHEET V3.0 2..After configuring the parameters of DHCP WAN connection as below, click ‘Apply’ to finish the setting： Shenzhen C-Data Technology Co., Ltd. Marketing@cdatatec.com +86-755-26014509 www.cdatatec.com...

  • Page 21: Static Ip Broadband Internet Access In Routing Mode

    DATASHEET V3.0 6.1.3 Static IP Broadband Internet Access In Routing Mode 1. web login ONU and select WAN Configuration->WAN->NEW, and then set the following parameters: 【Connection Name】Enter a qualified name. 【Enable】Check this option,It makes the WAN you configured take effect. 【WAN Mode】Select “Route”.
  • Page 22 DATASHEET V3.0 【802.1p】Set the priority of vlan, The same as "enable Vlan", depending on the network vlan planning to configure. The default priority is 0. 【IP Acquisition Mode】Select“Static”. 【IP Address】Set static IP address; 【Subnet Mask】Set the mask of static IP address; 【Gateway】Set the default gateway of static IP address;...
  • Page 23 DATASHEET V3.0 2.After the above configuration, click "Apply" button to complete the Static IP broadband Internet access settings: Shenzhen C-Data Technology Co., Ltd. Marketing@cdatatec.com +86-755-26014509 www.cdatatec.com...

  • Page 24: Broadband Internet Access In Bridge Mode

    DATASHEET V3.0 6.2 Broadband Internet Access In Bridge Mode ZTE solution ONU series products factory default mode in the bridge (pure data SFU), ONU bridge mode Internet does not need to do any configuration in the web interface. Just configure the correct ONU port vlan (eg access, trunk, transparent) in the OLT Note: If ONU was in route mode for Internet.

  • Page 25: Delete Internet Wan Connection

    DATASHEET V3.0 6.4 Delete Internet WAN Connection web login ONU and select the WAN Configuration->WAN, select a WAN connection in the "Connection Name", and then click the "Delete" button at the bottom of the page to complete the deletion: ONU LAN configuration The LAN side configuration of the ZTE solution ONU is mainly for terminal device when ONU in route mode.

  • Page 26: Lan Ip Address Configuration

    DATASHEET V3.0 7.1 LAN IP Address Configuration 1.web login ONU and select the LAN Configuration-> DHCP Configuration, And then set the following parameters: 【LAN IP Address】 Set the local management IP address of the ONU. The default is 192.168.101.1 【Subnet Mask】Set the subnet mask corresponding to the local management IP address of the ONU.

  • Page 27: Multicast / Iptv Service Basic Settings

    DATASHEET V3.0 2.After the above configuration, click "Apply" button to complete the LAN ip settings: Multicast / IPTV Service Basic Settings ZTE solution ONU multicast / IPTV service settings are mainly through the OLT to configure, including multicast vlan, snooping configuration can be configured through the OLT.

  • Page 28: Software Upgrade

    DATASHEET V3.0 9.2 Software Upgrade web login ONU and select the System Tool->Firmware Upgrade. Click the "Choose File" button to select an upgrade file, and then click the "Upgrade" button to upgrade: Note: ONU upgrade will automatically restart, do not need to manually restart the ONU, upgrade time is about 3 minutes.

  • Page 29: Concluding Remarks

    Building B, Wentao Industrial Park, Yingrenshi Community, Shiyan Avenue, Baoan District, Shenzhen, China Telephone: 0755-26014509/26014710/26014711 Fax: 0755-26014506 Email: Marketing@cdatatec.com Cyberteam Sp. z o.o. | ul. Strefowa 8 | 22-400 Zamość cyberteam@cyberteam.pl www.cyberteam.pl Website: www.cdatatec.com www.cdatatec.com.cn Shenzhen C-Data Technology Co., Ltd.
