Summary of Contents for STORZ POWER 10354

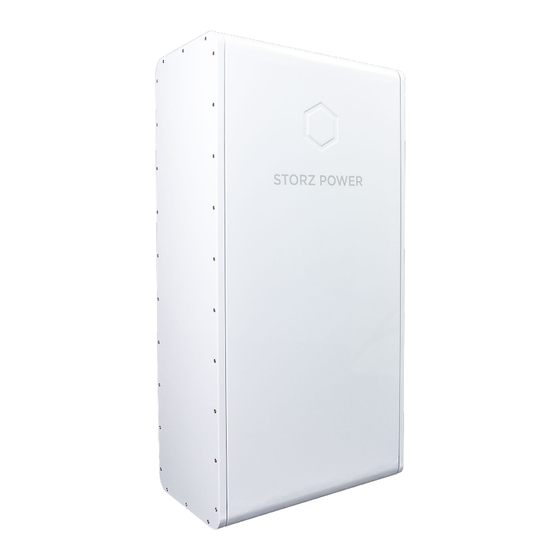

- Page 1 INSTALLATION MANUAL Storz Wall Mount Battery Cabinet | SKU: 10354 19.375” x 12.75” x 37.75” | 72 lbs. | IP65 v1.1 | 2023.4.11 | pg. 1...
- Page 2 -Limitations of Liability -Important Note EQUIPMENT NEEDED (NOT INCLUDED IN BOX) FOR -Storz Wall Mount Battery Cabinet -Recommended Protective Equipment PACKING LIST FOR -Storz Wall Mount Battery Cabinet -Storz Power Battery INSTALLATION -Selecting Mounting Location -Mounting the Cabinet -Install Configurations www.storzpower.com connect@storzpower.com 833-786-7901 2961 W.
-
Page 3: Important Safety Warnings
• DO NOT expose Storz Power Battery or Storz Wall Mount Battery Cabinet to flammable or harsh chemicals or vapors. • DO NOT paint any part of the Storz Power battery or Storz Wall Mount Battery Cabinet, including any internal or external components. -
Page 4: Maintenance
Check that the product is secure and safe to use at regular intervals (at least every three months). LIMITATIONS OF LIABILITY In no event will Storz Power be liable for any damages, personal harm or injury, whether direct or indirect, special, punitive, incidental or consequential damages (including, but not limited to, lost profits or revenue,... - Page 5 STORZ WALL MOUNT BATTERY CABINET INSTALLATION MANUAL NECESSARY STORZ WALL MOUNT BATTERY CABINET INSTALLATION TOOLS (not included in box): • Drill with Hammer • Philips bit • 5/32” wood bit • 3/8” concrete bit • 1.5” max knockout Drill Option (if installing the (if installing the drillbit for metal...
-
Page 6: Packing List
• 4 terminal block lug connectors USE: 2 • 1 cabinet shell • 2 side panels • 1 wall bracket STORZ POWER BATTERY You will receive the following parts with each battery: • 1 black terminal • 1 red terminal block block •... -
Page 7: Installation
However, only professional personnel can enter this area for installation or maintenance. Storz Power is not responsible for the use of improper fittings that could create a leak in the Storz Wall Mount Battery Cabinet. -
Page 8: Knockout Locations
STORZ WALL MOUNT BATTERY CABINET INSTALLATION MANUAL STEP 3: KNOCKOUT LOCATIONS Determine which side the Battery Faceplate will face out when installed in the cabinet (left or right). Take off the Side Panel of the side that the Battery Faceplate will be facing out. Do not lose the screws that go to the side panel that you remove. - Page 9 STORZ WALL MOUNT BATTERY CABINET INSTALLATION MANUAL STEP 4 DRILL KNOCKOUT Use up to a 1.5” knockout drillbit for metal. Knockout drillbit must not be any bigger than 1.5”. Drill knockout on cabinet at an approved location. STEP 5 INSTALL WALL MOUNT Determine if the wall for installation is concrete or has wood studs.
- Page 10 Attach Storz Wall Mount Battery Cabinet Shell to the Wall Mount Bracket on the wall. It is recommended to use two Storz Power Certified Installers to lift the cabinet onto the Wall Mount. Negligence or failure to use safety precautions as an installer due to the weight of the cabinet while lifting is not the responsibility of Storz Power.
- Page 11 STORZ WALL MOUNT BATTERY CABINET INSTALLATION MANUAL STEP 7 BATTERY PREP Remove 6 screws on each side to remove flanges from the battery(ies). MUST: Screw the 6 screws back into battery(ies) without the flanges on each side. DO NOT skip this step. www.storzpower.com connect@storzpower.com 833-786-7901...
- Page 12 STORZ WALL MOUNT BATTERY CABINET INSTALLATION MANUAL STEP 8 ATTACHING THE FLAT WHITE PLATES TO THE CABINET Choose which side of the cabinet the battery faceplates will face out. Attach each white flat plate to the cabinet with the flattest side facing out, specifically on the side of the cabinet the battery faceplates will face out.
- Page 13 Battery while lifting is not the responsibility of Storz Power. Storz Power will not be held liable for any lack of common sense or personal injury during installation. Carefully load each Battery into the Storz Wall Mount Battery Cabinet, pushing the Storz Power Battery all the way in leaving no space between the opposing Side Panel and the back of the Storz Power Battery.
- Page 14 STORZ WALL MOUNT BATTERY CABINET INSTALLATION MANUAL STEP 10 ATTACHING THE BLACK AND RED TERMINAL BLOCKS Using the inside holes on the White Flate Plate already attached to the cabinet you installed in Step 8, attach the Black Terminal Block to the inside left side of the Cabinet Shell with 4 lock & flat washer screws;...
- Page 15 STEP 12 ATTACHING TERMINAL BLOCK LUG CONNECTORS & BATTERY CABLES TO TERMINAL BLOCKS Connect Storz Power Batteries properly, according to the instructions given in the Storz Power ESS Installation Manual. *IMPORTANT NOTE: All cables necessary for installing batteries and connecting them to other Cabinets or the Inverters are not shown in the pictures below.
-
Page 16: Plastic Covers
Terminal Blocks after Battery wiring is complete. STEP 14 RS485 COMM CABLE Reference the Storz Power Battery Setup Guide. Visit Partner Portal for Comm. Cable configuration and dip switch assignment. *IMPORTANT NOTE: All cables necessary for installing batteries and connecting them to other cabinets or the Inverters are not shown in the picture below. -
Page 17: Ground Wire
Cabinet Shell to one Side Panel using one smaller lock & flat washer screw. Make sure the Storz Power stickers on the outside of the Side Panel(s) are not upside down. One Side Panel MUST HAVE a ground wire attached. -
Page 18: Attach Side Panels
26 screws into each Side Panel onto the USE: 26 per side Cabinet Shell. + INSTALL CONFIGURATIONS Follow instructions given in the Storz Power ESS Installation Manual for proper install configurations. www.storzpower.com connect@storzpower.com 833-786-7901 2961 W. Maple Loop Dr. Suite 300 Lehi, UT 84043... - Page 19 19.375” x 12.75” x 37.75” Cabinet Rating IP65 Rated Max Capacity 2 Storz Power Batteries Weight with 2 Storz Power Batteries 320 lbs. Follow all warnings and instructions in this manual to install the Storz Wall Mount Battery Cabinet properly. www.storzpower.com connect@storzpower.com...
