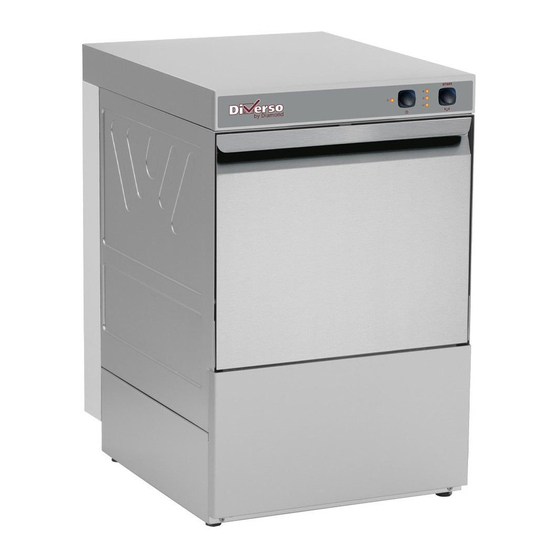

Summary of Contents for Diamond Diverso WR-LB40-MPSC
- Page 1 12/2021 Mod: WR-LB40-MPSC Production code: 919050...
-
Page 2: Table Of Contents
INSTRUCTION MANUAL FOR DISHWASHERS TRANSLATION FROM THE ORIGINAL INSTRUCTIONS CONTENTS CHAP 1 RISKS AND IMPORTANT WARNINGS ..............2 ..................3 ORMAL OPERATING CONDITIONS CHAP 2 PREFACE ........................4 CHAP 3 INSTALLATION ......................4 ........................4 NPACKING ........................4 OSITIONING ....................5 LECTRICAL CONNECTION .................... -
Page 3: Chap 1 Risks And Important Warnings
INSTRUCTION MANUAL FOR DISHWASHERS Read the instruction manual carefully before starting the machine. The warnings contained in the manual provide important information on safety and installation, use and maintenance. Failure to observe the instructions in the enclosed documentation may compromise the safety of the appliance and immediately voids the warranty. -
Page 4: Normal Operating Conditions
INSTRUCTION MANUAL FOR DISHWASHERS NEVER place your bare hands in the wash solution. NEVER overturn the machine after it has been installed. If you notice any malfunction or fluid leak, immediately disconnect the power supply and shut off the water supply. ... -
Page 5: Chap 2 Preface
INSTRUCTION MANUAL FOR DISHWASHERS Chap 2 PREFACE Warnings: Keep all documentation in the vicinity of the appliance; make it available to the technicians and operators charged with operating it and keep it in good condition in a safe place, along with extra copies for frequent reference The operator must read, understand and familiarise himself with the contents of this manual before working on or with the appliance. -
Page 6: Electrical Connection
INSTRUCTION MANUAL FOR DISHWASHERS 3.3 Electrical connection The power supply must be fitted with a omnipolar circuit breaker (master power switch) to break all contacts including neutral, with a contact gap of at least 3 mm and thermal cutout or fuses, which must be set or rated to the power indicated on the machine's nameplate. -
Page 7: Water Circuit Hookup
INSTRUCTION MANUAL FOR DISHWASHERS 3.4 Water circuit hookup The appliance must be connected to its water supply with a flexible hose. A shut off valve (cock) must be installed between the water supply line and the appliance's solenoid valve. The cock must be close to the appliance. ... -
Page 8: Chap 4 Using The Machine
INSTRUCTION MANUAL FOR DISHWASHERS Chap 4 USING THE MACHINE 4.1 Key and symbols Referring to Fig.1: ON/OFF BUTTON 5 BOILER HEATING UNDERWAY LED AUTO BUTTON (HOOD) 6 TUB HEATING UNDERWAY LED START BUTTON 7 CYCLE UNDERWAY LED POWER LED The arrangement of buttons and leds may vary according to the machine type Switching the dishwasher on Referring to Fig.2: ... -
Page 9: Automatic Start-Up (Hood)
INSTRUCTION MANUAL FOR DISHWASHERS 4.4.3 Automatic start-up (hood) With the hood raised, press the AUTO (2) button for automatic start (Fig.6). Lower the hood, the cycle starts automatically and the CYCLE UNDERWAY (7) led lights up. When the cycle is completed the CYCLE UNDERWAY (7) led goes off. ... -
Page 10: Cleaning
INSTRUCTION MANUAL FOR DISHWASHERS 5.2 Cleaning To keep the machine in good working order, it must be maintained regularly as explained below. We recommend periodically running a sanitising treatment with suitable non-corrosive commercial products. 5.3 Cleaning the filter unit Run this procedure at the end of the day or when you see the filters are dirty: 1. -
Page 11: Chap 7 Environment
INSTRUCTION MANUAL FOR DISHWASHERS Chap 7 ENVIRONMENT RESPECT FOR THE ENVIRONMENT Proper use of the dishwasher can improve its environmental footprint, if the following simple rules are observed: Only wash full baskets. Switch the dishwasher off when not using it. Keep the machine closed when it is in standby.
