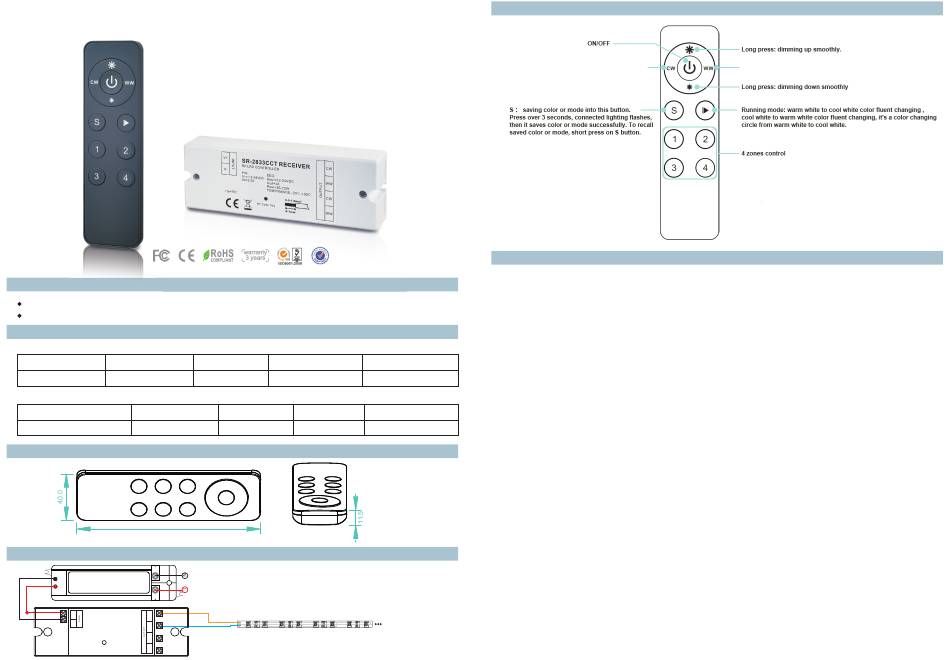

EVEREN SR-2833CCT Manual

RF Wireless CCT Dimmer

Feature

SR-2833CCT is RF Wireless CCT Dimmer.
4 different zones independently or in a group.

Parameter

Remote

Operation Voltage
Part No.
SR-2833CCT 3VDC

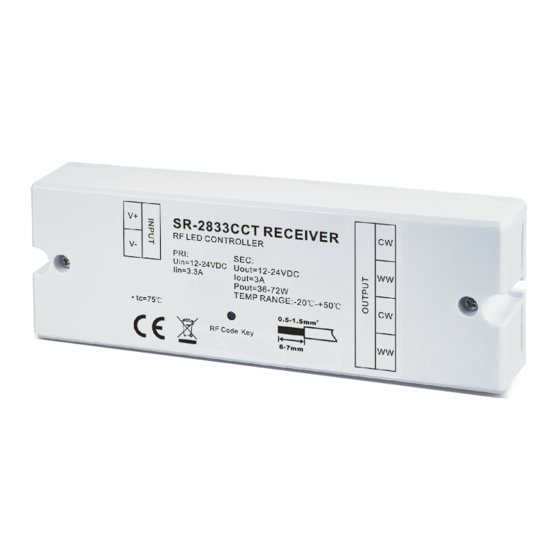

Receiver

Iuput Voltage
Part No.
SR-2833CCT RECEIVER 12-24VDC

Product Size

136.5

Wiring diagram

Power Supply
110V-230VAC
12-24VDC
V+
CW
SR-2833CCT RECEIVER
V-
WW
CW
Learning Key
WW
SR-2833CCT

Operation

DIMENSIONS
Frequency ø/h (mm)
434MHz/868MHz 39X136.5X10.7
Current Output
3A 36-72W Constant voltage
WW
CW

Brief introduction of buttons

CW:short press:CW color dimming step by step
long press:CW color dimming smoothly
Operation
After you have wired all the receivers according to Figure illustration you need to do the following:
1. Pull off the plastic film cover of the battery at the back of remote.
2. If you use multiple receivers, you have 2 choices:
Have all receivers in the same zone like Zone 1 for example or
Have each receiver in a different zone, like Zone 1, 2, 3 and so on
Remarks
3. In order to pair each receiver to know what Zone it belongs to, you will need match it to the zone you wish to
Battery CR2025
use: short press the Learning Key on the receiver, then immediately short press the zone button 1 or 2 or 3 or 4
you wish to use. Once you do that, the receiver output connected lighting will flash at 1 time.Then your remote
and receiver are paired successfully. Short press on zone button to turn ON/OFF, long press on zone button to
Remarks
turn UP/DOWN.
4. Learn more receivers into same zone.
This wireless receiver can be learned into any zone ( 4 zones) . It has a special "Learning Key" that will enable
you to pair it to any of the 4 zones by RF remote. You can learn lots of receivers into zones as you wish. Each
zone can learn endless number of receivers.
Memory Reset:
In case you want to learn receiver into another zone, press the learning function button for 10 seconds until the
receiver's connected lighting off. Then the memory is deleted. So you can do the above learning operation, to
learn it into another zone.
Re-Assign Zone:
Re assigning the receiver to a different zone is easy,just press for less than 1 second the learning button on the
receiver and then press any zone button that you would like to re-assign the receiver(Zone 4).
WW:short press:WW color dimming step by step
long press:WW color dimming smoothly
