ENGO CONTROLS EPC12HW Quick Manual

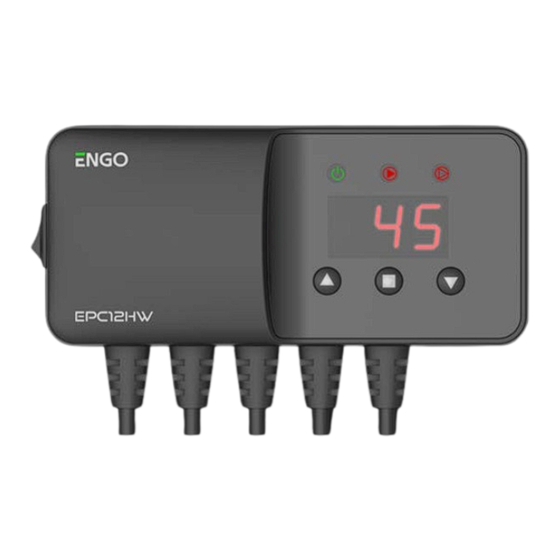

EPC12HW | Controller for CH pump and HW pump
Producer:
Engo Controls S.C.
43-200 Pszczyna
ul. Górnośląska 3E
Polska
www.engocontrols.com
Quick Guide
Release date: III 2023
Distributor:
QL CONTROLS Sp z o.o. Sp. k.
43-262 Kobielice
4 Rolna St.
Poland
PC

Introduction

The controller is designed to control CH and HW pumps. CH pump turns
ON when boiler temperature exceeds user setpoint temperature. HW
pump work depends on the temperature difference. HW pump turns
on when boiler temperature exceeds the temperature of the tank by
hysteresis value set by user. HW pump works until the temperature of
the boiler and the temperature of the tank will be equal or setpoint
temperature of the tank will be achieved.

Product Compliance

This product complies with the essential requirements and other
relevant provisions of the following EU Directives: EMC 2014/30/EU,
RoHS 2011/65/EU.

Safety Information

Use in accordance to national and EU regulations. Use the device as
intended, keeping it in dry condition. Product for indoor use only. In-
stallation must be carried out by a qualified person in accordance to
Ver. 1
national and EU regulations.
Before carrying out any activities related to the power supply
(connecting wires, device installing etc.), make sure that main power
is not connected to the controller! Incorrect wiring connections may
cause device damage.

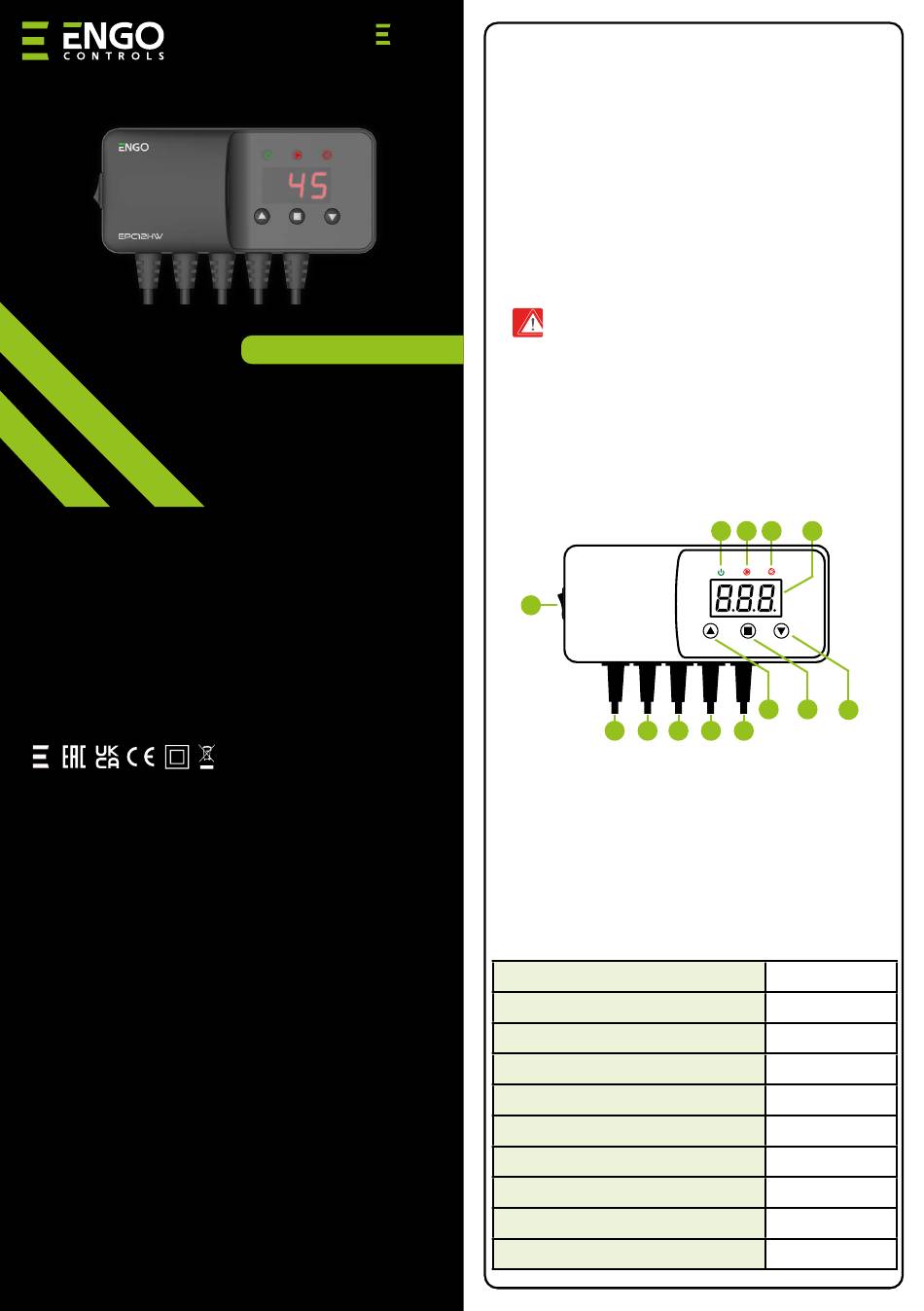

Controller description

13
1. Power supply indicator
2. CH pump operation
indicator
3. HW pump operation
indicator
4. Display
5. Increasing setpoint
temperature or value
6. Menu button

Technical specification

Power supply
Max load of the CH pump output
Max load of the DHW pump output
Temp. measurement range
Setpoint temp. range for CH
Setpoint temp. range for DHW
Sensor temp. range
CH sensor cable lenght
DHW sensor cable lenght
Dimension [mm]
1 2 3
5
8 9 10 11 12
7. Decreasing setpoint
temperature or value
8. Controller power supply
9. CH pump power supply
10. HW pump power supply
11. HW temperature sensor
12. CH temperature sensor
13. ON/OFF power supply
switch
230 V / 50Hz
3 (1) A
3 (1) A
0 – 99°C
5 – 80°C
20 – 80°C
-10 – 120°C
1,5m
3m
155 x 70 x 39
4
6
7
