Summary of Contents for COMPANION CTS-DUO

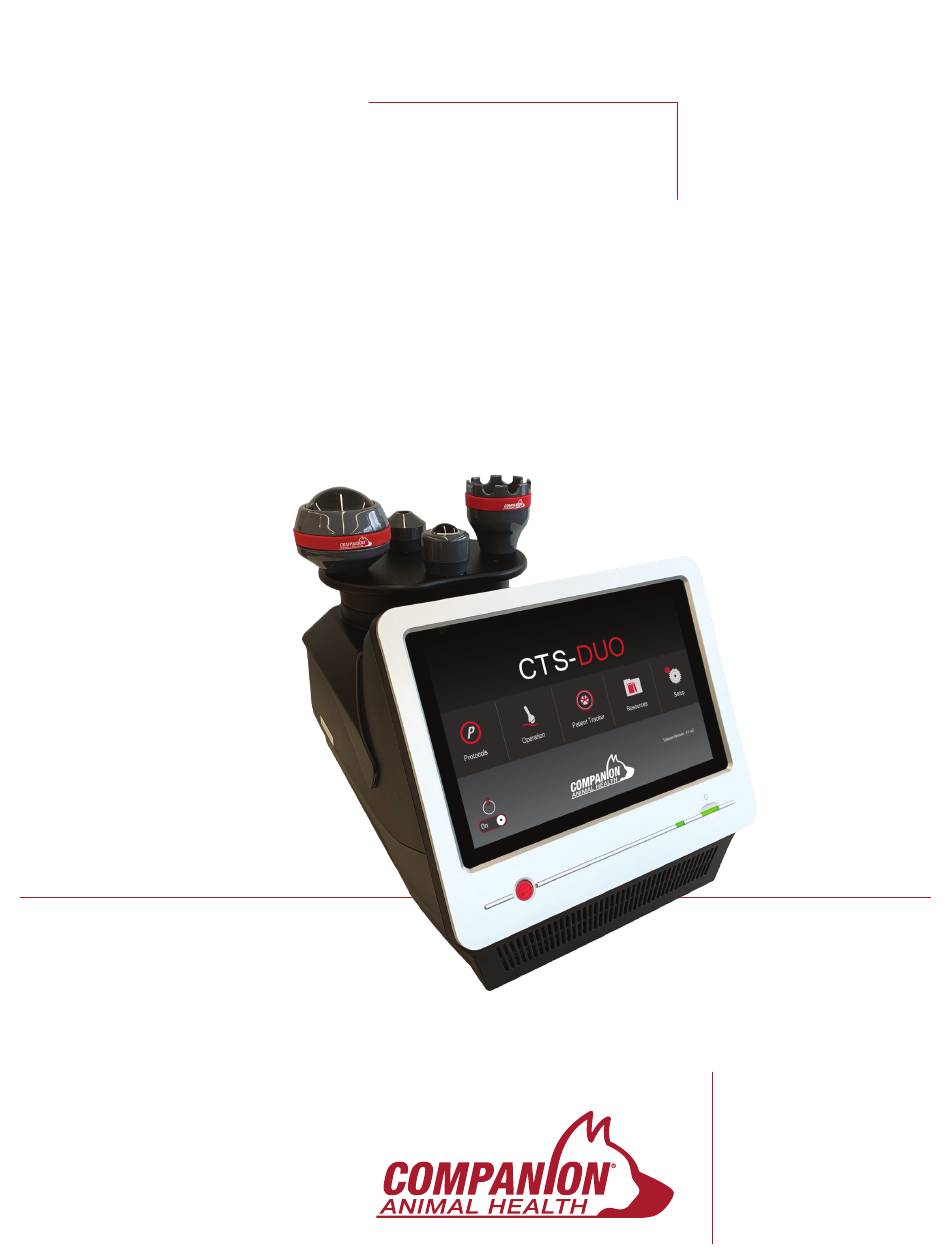

- Page 1 >> User Manual Companion Animal Health CTS-DUO Laser System Companion Animal Health Phone 302.709.0408 Toll Free 877.627.3858 Fax 302.709.0409 This document contains proprietary and confidential information...
- Page 2 ® Companion Animal Health CTS-DUO User Manual Read the entire User Manual before attempting to operate this device. User Manual PN: RSR-000715-000 (2) Applicable Software Version: 4.0+ Effective Date: 2021-08-30 RSR-000715-000 (2) User Manual – CTS-DUO Page 1 of 26...
-
Page 3: Table Of Contents
5.2.1. System Setup ..........13 12.4.1. Standard Warranty ..........25 5.2.2. Handpiece Setup ........13 12.4.2. Extended Coverage ..........25 5.2.3. Localization Setup ........14 13. Contact Information ..........25 RSR-000715-000 (2) User Manual – CTS-DUO Page 2 of 26... -
Page 4: Safety
The mating connector (as shown in Figure 2) MUST be inserted (or remote interlock circuit closed / door closed) for Figure 2 the laser system to emit. RSR-000715-000 (2) User Manual – CTS-DUO Page 3 of 26... -
Page 5: Laser Emission Indicators
Plug the female end of the power cord into the AC input at the back of the laser system (Figure 8). Plug the male end of the AC power cord into a 100-240 grounded electrical outlet Step 5. Figure 8 RSR-000715-000 (2) User Manual – CTS-DUO Page 4 of 26... -
Page 6: Delivery System Connection
When therapy is discontinued or between treatment cycles, the user may rest the hand piece in the Hand Piece Clip. For long term storage and during transport, the user may also wrap the fiber around the Fiber Manager Spool to avoid damage to the fiber. Figure 14 RSR-000715-000 (2) User Manual – CTS-DUO Page 5 of 26... -
Page 7: Device Description
For exposure times between 10 and 3000 seconds, the MPE at the cornea for this laser system is 418.9 W/m . For exposure times between 10 and 30,000 seconds, the skin MPE is 3027.1 W/m RSR-000715-000 (2) User Manual – CTS-DUO Page 6 of 26... -
Page 8: Laser Console Diagrams
LED will turn red. When the hand piece is moved too fast during emission, the LED will turn yellow. When vibration feedback is turned on, the hand piece will vibrate when in the red or yellow condition (Figure 20). During laser system shutdown, the Emission Indicator Ring will flash red. RSR-000715-000 (2) User Manual – CTS-DUO Page 7 of 26... -
Page 9: Quick Disconnect Treatment Heads
Protocol or treatment settings. 3.7. Treatment Head Attachments The following table lists the treatment heads included with the laser system and provides a description of when to use each. RSR-000715-000 (2) User Manual – CTS-DUO Page 8 of 26... -
Page 10: Treatment Head Parameters
NOHD (ft’ inches”) Radians Degrees Small Cone 0.8148 1’ 4” Small Ball 0.2258 3’ 8” Large Cone 0.8148 1’ 4” 17' 9" Large Ball 0.0566 XL Contact 0.1860 10.7 4’11” RSR-000715-000 (2) User Manual – CTS-DUO Page 9 of 26... -
Page 11: Device Operation
DO NOT pretreat tissue (e.g., with a heating pad or wet compress) before laser treatment. Tissue to be treated must be dry and at normal temperature before laser treatment begins. RSR-000715-000 (2) User Manual – CTS-DUO Page 10 of 26... -
Page 12: Treatment Considerations
In general, doses are delivered to the area of pain, the surrounding tissues, and along the nerve pathway for the specific area experiencing the pain. Treat muscles connecting to a painful joint in addition to tendon attachments. RSR-000715-000 (2) User Manual – CTS-DUO Page 11 of 26... -
Page 13: Treatment Technique
Press the exit button to return to Standby mode. Make sure that the ambient temperature of the laser system is within the operating temperature range of the device, which is 5°C to 40°C (41°F to 104°F). RSR-000715-000 (2) User Manual – CTS-DUO Page 12 of 26... -
Page 14: Power On
Note: If a small treatment head is attached to an Empower IQ and the treatment power setting is above 6W, then the LED will illuminate Red regardless of the Visual Feedback setting. If Vibration Feedback is Off, though, the Empower IQ will not vibrate in this, or any, condition. RSR-000715-000 (2) User Manual – CTS-DUO Page 13 of 26... -
Page 15: Localization Setup
Large Cone Small Ball Small Cone Contact Recommended (Green) Exhibit caution These attachments will only appear Red or Green (Yellow) based on the protocol and power selection. Not Recommended (Red) RSR-000715-000 (2) User Manual – CTS-DUO Page 14 of 26... -
Page 16: Operation Mode
(treatment area, treatment power, and target energy density) and the patient’s coat color and skin color, and then calculates the appropriate treatment time and wavelength blend. RSR-000715-000 (2) User Manual – CTS-DUO Page 15 of 26... -
Page 17: Resources
Always use protective eyewear and gloves when cleaning and disinfecting any equipment. DO NOT use treatment head until alcohol solution used in cleaning procedure completely evaporates. Doing so may cause the laser to ignite alcohol solutions or vapors. RSR-000715-000 (2) User Manual – CTS-DUO Page 16 of 26... -
Page 18: Cleaning The Console
Make sure that the power cord is correctly attached and plugged into a functioning power outlet or that the battery is sufficiently charged. Make sure that the remote interlock on the bottom of the laser system is properly inserted and wire loop is not damaged. RSR-000715-000 (2) User Manual – CTS-DUO Page 17 of 26... -
Page 19: If There Are Scratches On The Massage Ball
Class 4 laser product according to IEC 60825-1 In order to safely perform its intended use, the system requires the following Class I accessories: Empower IQ™ Delivery System Laser Safety Eyewear RSR-000715-000 (2) User Manual – CTS-DUO Page 18 of 26... -
Page 20: Declaration Of Conformity (Eu)
Quality & Regulatory Manager New Castle, DE 19720 ® LiteCure, LLC (the parent company of Companion ) declares under sole responsibility as the regulatory representative and legal manufacturer that the above-mentioned product is delivered in conformity with the following Council Directives as transposed in the national laws of the Member States through determination of... -
Page 21: Accessories
Accessories Warning: Do not use any accessories and/or cables not specified or sold by Companion as replacement parts. Use of unauthorized accessories and/or optical fibers not specified or sold for use with this system may result in unsafe treatment emissions or damage to the laser system. -
Page 22: Emissions
Electromagnetic Environment – Guidance RF Emissions Group 1 The CTS-DUO uses RF energy only for its internal function. Therefore, its RF emissions CISPR 11 are very low and are not likely to cause any interference in nearby electronic equipment. RF Emissions... -
Page 23: Disposal
Note: This is located inside the device. Indicates the need for the user to consult the instructions for use prior to operating Follow Instructions the device. Power On/Off Push/push power button RSR-000715-000 (2) User Manual – CTS-DUO Page 22 of 26... -
Page 24: Laser Product Label
European Economic Area. 11.2. Laser Product Label US/Canada: International: 11.3. Non-Interlocked Protective Housing Label (US/Canada Only) 11.4. Therapy Laser 25W Label (International Only) RSR-000715-000 (2) User Manual – CTS-DUO Page 23 of 26... -
Page 25: Warranty Seal
Contact Customer Care to obtain an RMA, or service order, number and detailed return instructions. A form will be enclosed with the loaner or replacement product and must be completed, signed and returned to Companion with the returned product. Be prepared to furnish: Product Model and Serial Number •... -
Page 26: Cancellation Fees
Companion, FOB city destination within the continental United States. Transportation beyond these limits will be charged to purchaser. The warranty set out in above paragraph is the exclusive warranty made by Companion and is in lieu of all other warranties (except for specific product performance warranties), whether written, oral, or implied, including any warranty of merchantability or fitness for a particular purpose, and shall be customer’s sole remedy and Companion’s sole liability on contract or warranty of... - Page 27 The Model ( REF ) and Serial Number ( SN ) of the device are found on the yellow label located underneath the device. RSR-000715-000 (2) User Manual – CTS-DUO Page 26 of 26...
- Page 28 CompanionAnimalHealth.com Companion Animal Health Phone 302.709.0408 Toll Free 877.627.3858 Fax 302.709.0409 This document contains proprietary and confidential information...
