Summary of Contents for SingularXYZ T8 Pro

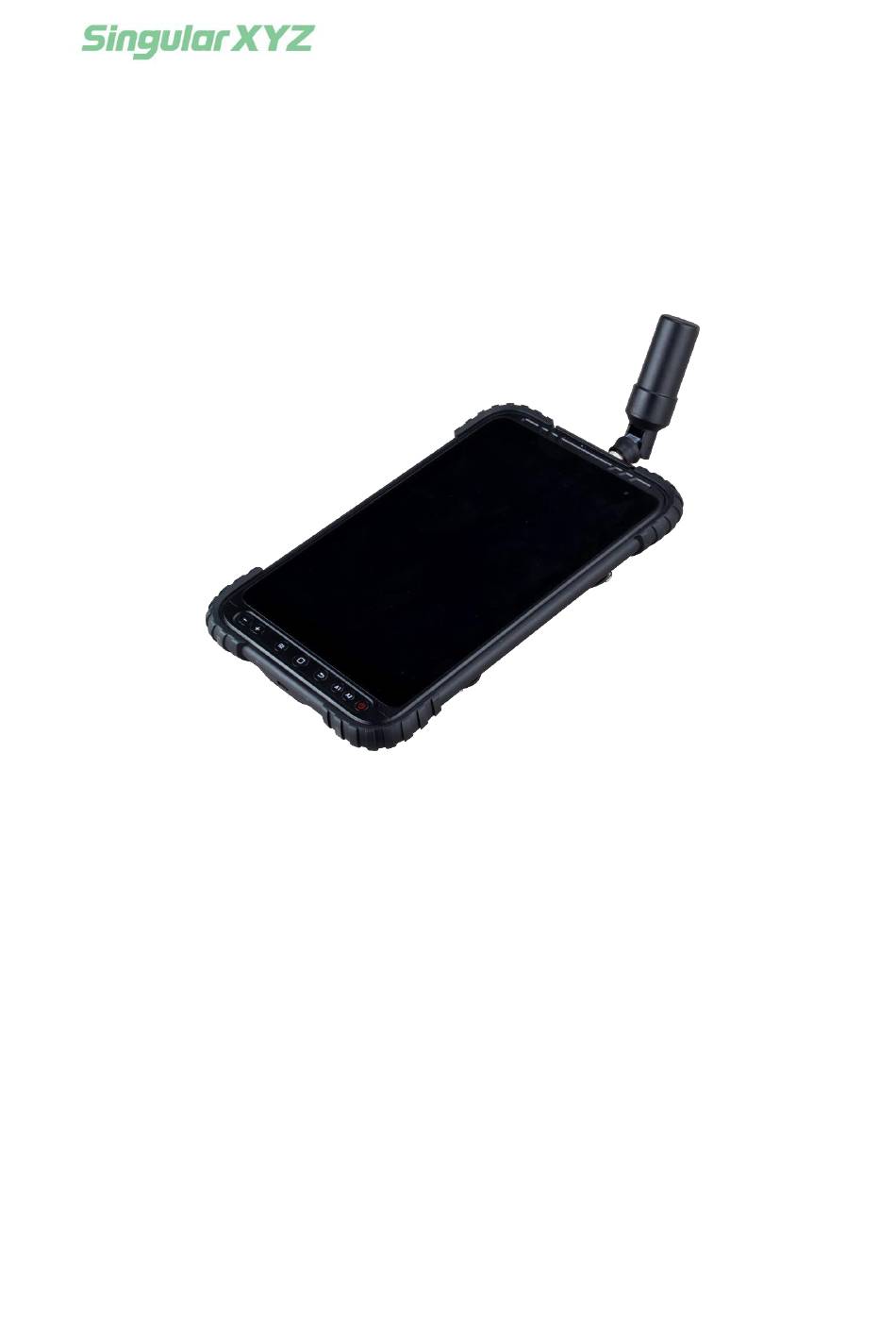

- Page 1 T8 Pro High Precision Tablet Manual V1.0, modified on 2021.12.04...
- Page 2 If you have any question and can't find the answer in this manual, please contact your local dealer from which you purchased the T8Pro. Alternatively, request technical support from SingularXYZ .Website: or technical support email: singularxyz@singularxyz.com. Your feedback about this Guide will help us to improve it with www.singularxyz.com future revisions. Safety Information Before using the Tablet, please make sure that you have read and understood this User Guide, as well as the safety requirements.
- Page 3 CAUTION- A Caution alerts you to a possible risk of damage to the equipment and/or data loss. Warranty Notice SingularXYZ does not warranty devices damage because of force majeure (lighting, high voltage or collision). SingularXYZ does not warranty the disassembleddevices.
-
Page 4: Table Of Contents
4.2.1 Setup CORS connection or connect to your single Basestation........... 11 4.2.2 Check satellites information and NMEA message..............12 4.2.4 SingularSurv Software............................ 13 4.2.3 Send command to communicate with the integrated board..........12 4.3 Other 3rd Party GIS software ......................... 13 T8 Pro High Precision Tablet Manual V1.0... -
Page 5: About The T8Pro
Chapter 1 Introduction Embedded with high precision GNSS module, the T8 Pro can simultaneously track all running and 1.1 About the T8Pro planned constellations including GPS, GLONASS, BeiDou, Galilei, QZSS and Navic, providing centimeter level positioning accuracy to satisfy the demands of most GIS applications. -
Page 6: Specifications
1.3 Specifications T8 Pro High Precision Tablet Manual V1.0... -
Page 7: Basic Supply Kit
This section provides overall T8Pro tablet parts list, including basic supplies and customized kits based on yourrequirements. 2.1 Basic supply kit Item Picture T8Pro Tablet Type-C Cable Battery Charger 2.2 Optional Choices Item Picture Helix Antenna Geodetic Antenna (optional) T8 Pro High Precision Tablet Manual V1.0... -
Page 8: Helix Antenna
Suggest make the antenna head to sky. 3.2 Geodetic antenna Below shows how T8Pro connect with the geodetic antenna. Use the provided cable make the connections. T8 Pro High Precision Tablet Manual V1.0... -
Page 9: Singularpad Software
Chapter 4 Operation 4.1 SingularPad software SingularPad can connect to internal OEM board and set work mode directly. 4.1.1 Connection T8 Pro High Precision Tablet Manual V1.0... -
Page 10: Set Work Mode
After connection, it will show a icon in the software as Rover, click and set CORS parameters: IP, Port, User, 4.1.2 Set work mode Password and MountPoint. Finally remember apply it. Then the status will get fixed, and you can start your work 4.1.3 Survey and Stakeout T8 Pro High Precision Tablet Manual V1.0... -
Page 11: Singularsure + High Precision Software
After CORS configuration you will find the positioning status changed to FIX. And High-Precision software will share the location to the tablet, which means when there has another software requests the location, it will get the high accuracy location. T8 Pro High Precision Tablet Manual V1.0... -
Page 12: Check Satellites Information And Nmea Message
4.2.2 Check satellites information and NMEA message 4.2.3 Send command to communicate with the integrated board. Input the command for the board, click send command. Here take “log version” as example, you can getthe firmware version information. T8 Pro High Precision Tablet Manual V1.0... -
Page 13: Singularsurv Software
Survey to collect points. 4.3 Other 3rd Party GIS software For GIS software which supports read the tablet location, all can work by T8 PRO high precision tablet. Blow shows some samples of GIS software. T8 Pro High Precision Tablet Manual V1.0...
