Thiel MCS1 Technical Information

Supplemental
Technical Information
for model
THIEL MCS1
Coherent Source
This paper contains only information specific to the MCS1 speaker system.
It is intended to supplement the general technical information paper which
explains our engineering philosophy, goals and techniques.

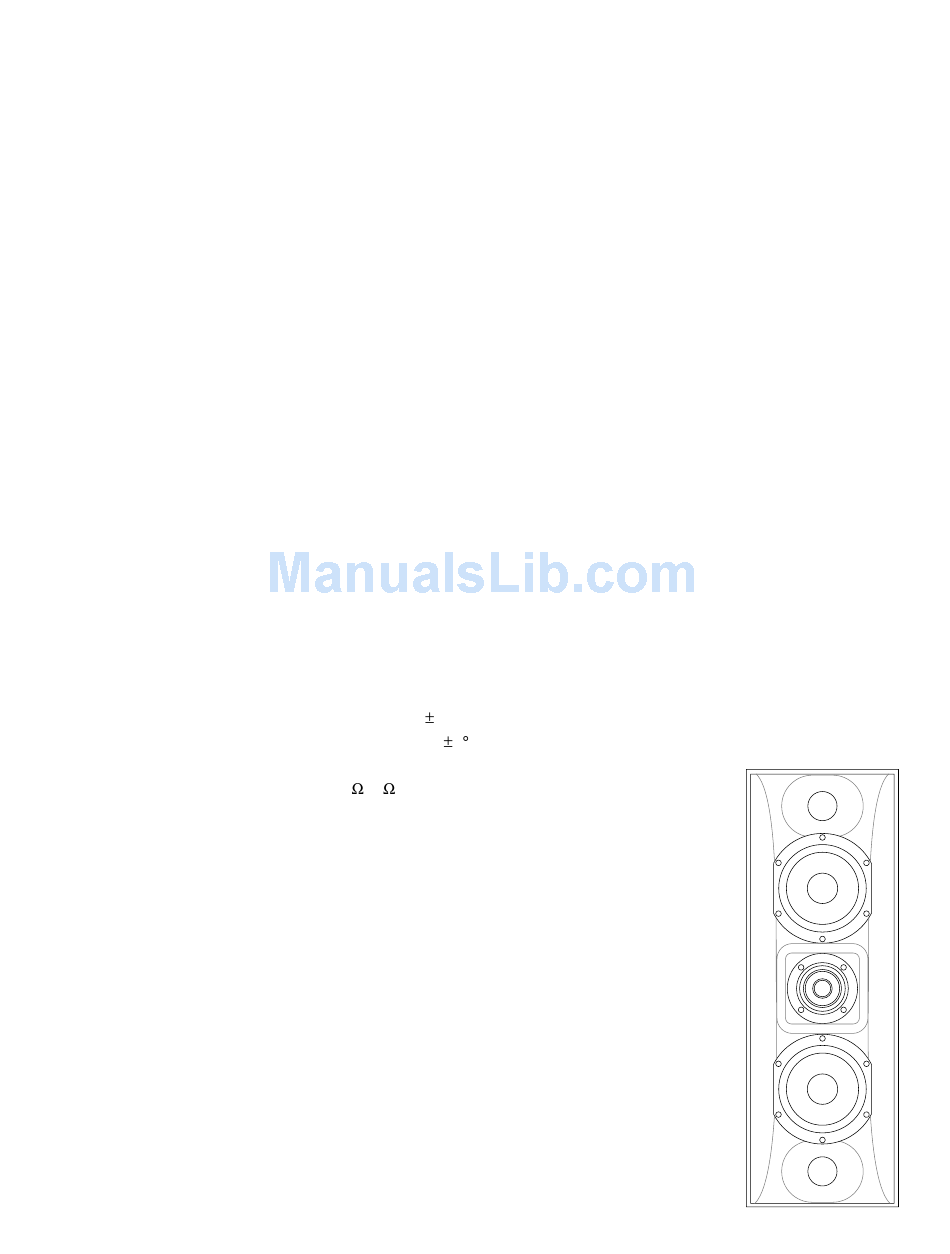

THIEL MCS1 SPECIFICATIONS
Bandwidth (-3 dB)
Amplitude response
Phase response
Sensitivity
Impedance
Recommended Power
Size (W x D x H)
Weight
Driver Complement:
Woofer
Two woofers; diameter 6.5" (5.1" radiating area) with anodized
aluminum cone, cast frame, 1.7" dia voice coil. Underhung coil (short coil/
long gap) motor system. Linear travel
2.5 lb. magnet, 6 lb total magnet structure plus 1.2 lb. shielding magnet.
Copper pole sleeve, copper magnet ring. Made by THIEL.
Midrange
4.5" (2.7" radiating area) with anodized aluminum diaphragm, cast
frame, 1" dia voice coil. Underhung coil (short coil/long gap) motor system.
1
Linear travel / " pk-pk. Magnet weight of 1 lb. plus 1 lb. shielding magnet
8
plus .4 oz. neodymium magnet powers midrange and tweeter. Copper pole
sleeve. Ferrofluid. Made by THIEL.
Tweeter
1" (1.2" radiating area) with anodized aluminum dome. Powered by
midrange motor. Coincident with midrange.
®
47 Hz - 23 kHz
50 Hz - 20 KHz 2 dB
minimum 5
90 dB @ 2.8 v-1m
4 , 3 minimum
50-300 watts
10 x 12 x 28.5 inches
61 lb
1 3
/ " pk-pk, 5 in linear displacement.
4
Loudspeaker
7/00
