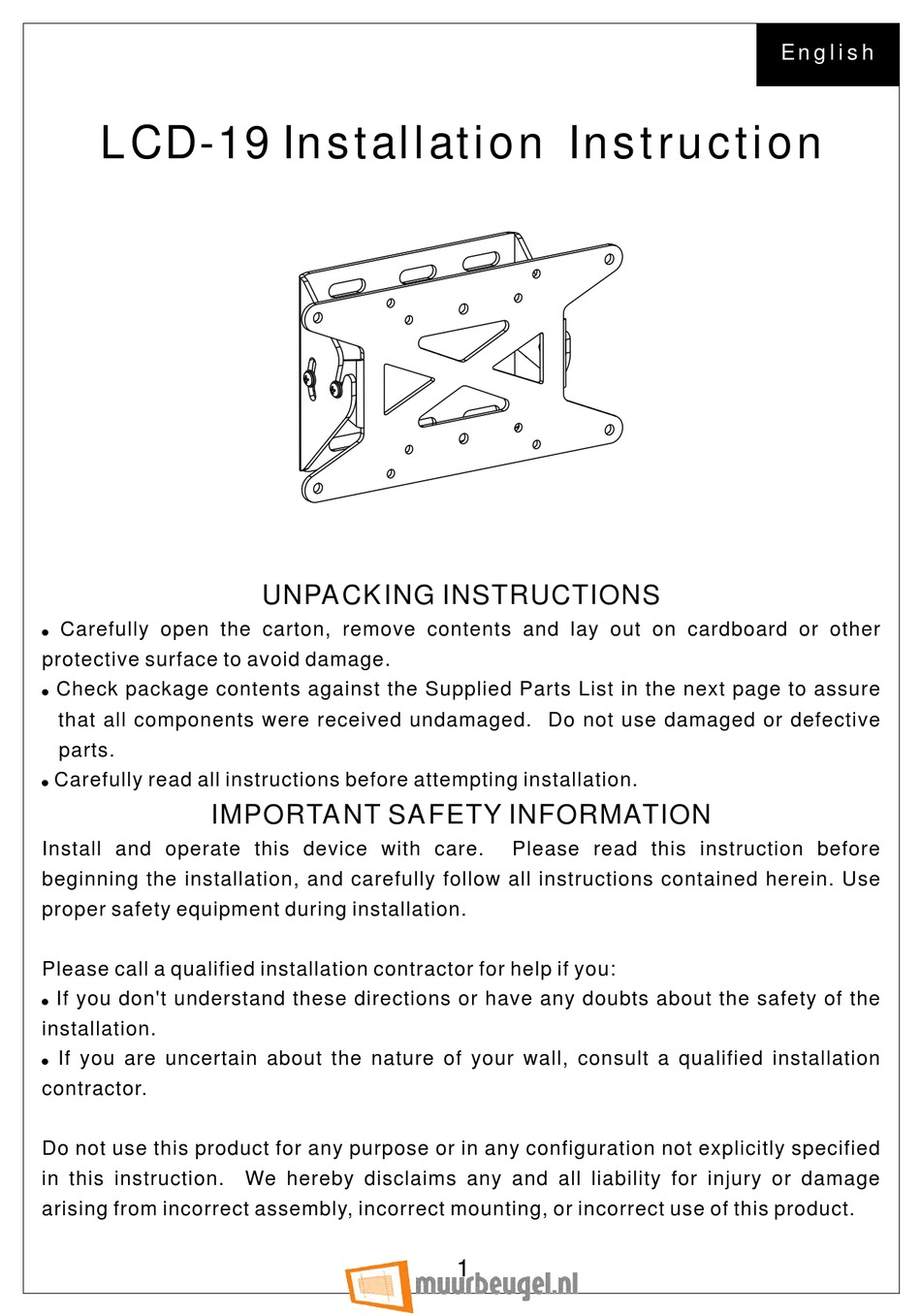

LCD-19 Installation Instruction
Carefully open the carton, remove contents and lay out on cardboard or other
!
protective surface to avoid damage.
Check package contents against the Supplied Parts List in the next page to assure
!
that all components were received undamaged. Do not use damaged or defective
parts.
Carefully read all instructions before attempting installation.
!

IMPORTANT SAFETY INFORMATION

Install and operate this device with care.
beginning the installation, and carefully follow all instructions contained herein. Use
proper safety equipment during installation.
Please call a qualified installation contractor for help if you:
If you don't understand these directions or have any doubts about the safety of the
!
installation.
If you are uncertain about the nature of your wall, consult a qualified installation
!
contractor.
Do not use this product for any purpose or in any configuration not explicitly specified
in this instruction. We hereby disclaims any and all liability for injury or damage
arising from incorrect assembly, incorrect mounting, or incorrect use of this product.

UNPACKING INSTRUCTIONS

Please read this instruction before
1
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCD-19 and is the answer not in the manual?

Questions and answers

Summary of Contents for Muurbeugel LCD-19

  • Page 1 English LCD-19 Installation Instruction UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts.
  • Page 2 Supplied Par ts List (1)Monitor Bracket-a (1)Wall plate-b (2)M6 x 12 Bolt-c (2)M6 Allen Bolt-d (4)M4x12 Bolt-e (4)M4x30 Bolt-f (8)M4 Washer-g (4)M4 Space-h (4)Lag Bolt Washer-i (4)Concrete Anchor-j (4)Lag Bolt-k (1)Allen Key-l (2)M6 Washer-m (2)M6 Lock Washer-n CAUTION! This TV mount must be securely attached to the vertical wall.
  • Page 3 Mounting the Wall Plate to the Wall Step 1 Brick Mount 50mm 40mm Wood Mount 50mm 3.8mm...
  • Page 4 Mounting the Monitor Bracket to a TV Step 2 For Flat Back TV For Curved Back TV Attaching TV to Wall Plate Step 3 Thanks for choosing our products, enjoy the using.
