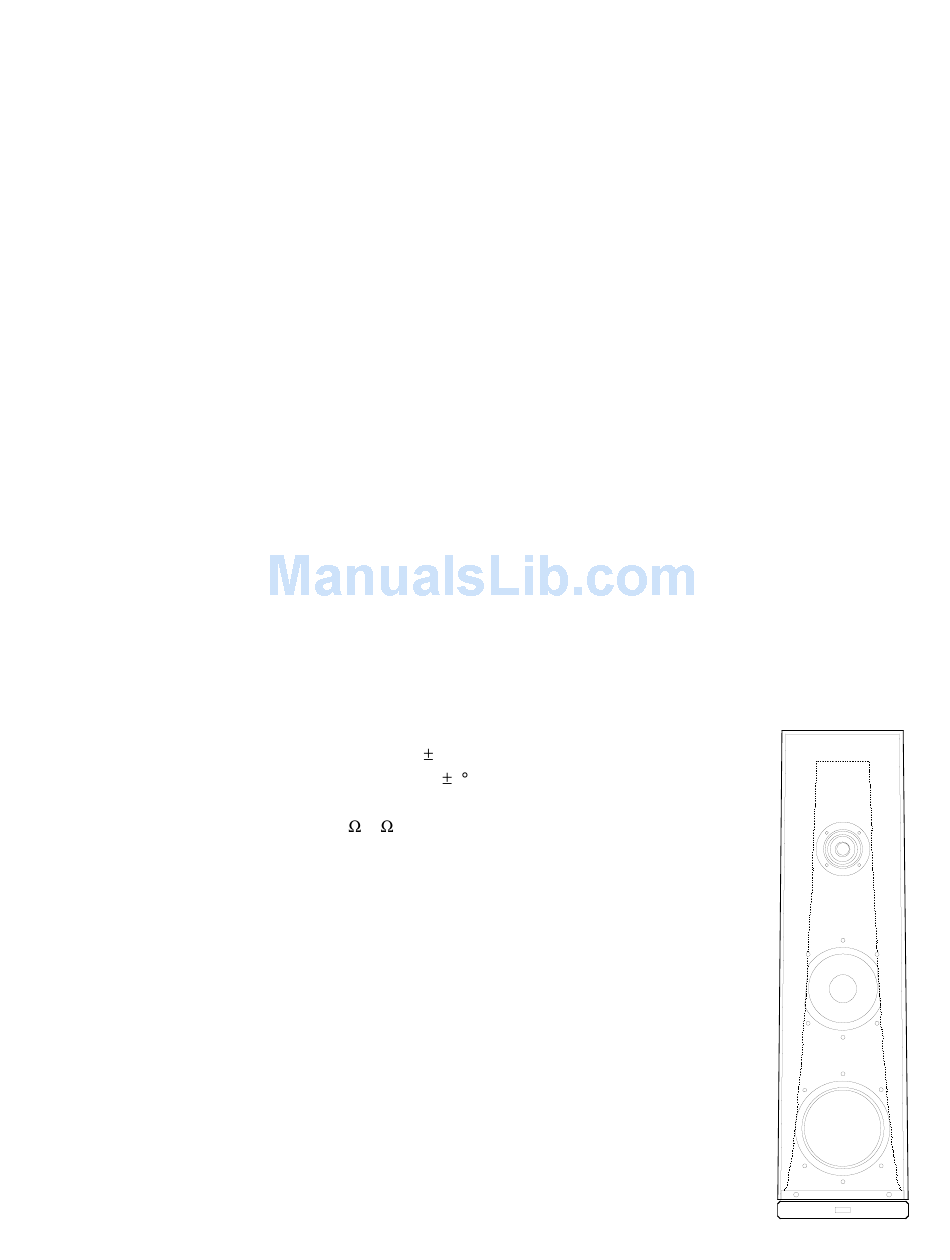

Supplemental
Technical Information
for model

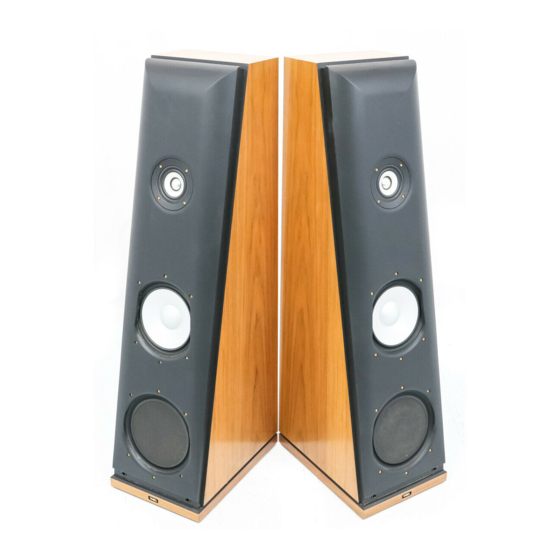

THIEL CS2.3
Coherent Source
Loudspeaker
®
This paper contains only information specific to the CS2.3 speaker system.
It is intended to supplement the general technical information paper which
explains our engineering philosophy, goals and techniques.
THIEL CS2.3 SPECIFICATIONS
Bandwidth (-3 dB)
35 Hz - 23 kHz
Amplitude response
37 Hz - 20 KHz 2 dB
Phase response
minimum 5
Sensitivity
87 dB @ 2.8 v-1m
Impedance
4 , 3 minimum
Recommended Power
100-400 watts
Size (W x D x H)
11 x 15 x 41.5 inches
Weight
70 lb
Driver Complement:
Woofer
8" (6.4" radiating area) with anodized aluminum cone, cast frame, 1.7" dia.
voice coil. Underhung coil (short coil/ long gap) motor system. Linear travel
3
0.4" pk-pk, 13 in
linear displacement. 2.5 lb. magnet, 6 lb. total magnet
structure. Copper pole sleeve, copper magnet ring. Made by THIEL.
Midrange
4.5" (2.7" radiating area) with anodized aluminum diaphragm, cast frame, 1"
dia. voice coil. Underhung coil (short coil/long gap) motor system. Linear
travel
1
/
" pk-pk. Magnet weight of .8 lb. powers midrange and tweeter.
8
Copper pole sleeve. Ferrofluid. Made by THIEL.
Tweeter
1" (1.2" radiating area) with anodized aluminum dome. Powered by
midrange motor. Coincident with midrange.
4/98
